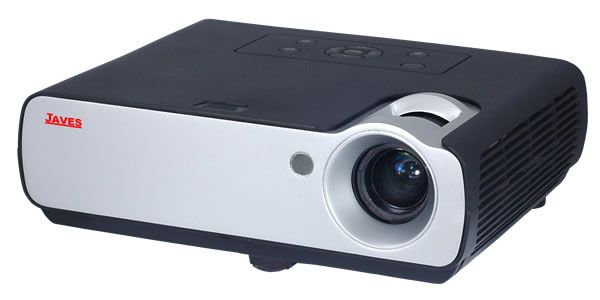

The projector ADS 513 by JAVES utilizes DLP technology and, according to the spec sheet, achieves 1300 ANSI lumens, a contrast of 1500:1 at a resolution of SVGA 800 x 600. The manufacturer specifies a runtime of 2000 hours for this projector's lamp. Regarding projection size, the value of 1300 ANSI lumens allows for an image width of up to 314 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 209 cm. The model is currently no longer actively offered on the market by the manufacturer.
Display Type
1 x 0,55" DLP Chip SVGA 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1300
Screen
433 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
0,8667 min. Lumen
0,289 min. Lumen
Offset
60% 15 cm over screen top edge →
SCREEN
+Projector
Resolution
SVGA 800 x 600
480.000 Pixel SXGA+ 1400 x 1050 compressed
Video Modes
PAL, SECAM, NTSC, EDTV 576p
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Kensington Slot
Product Sheet english
