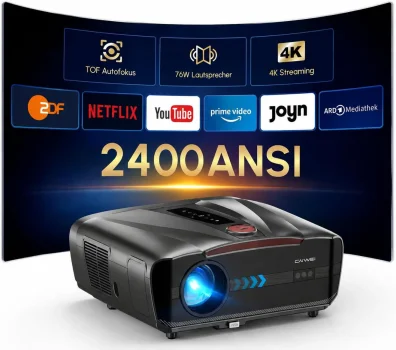

With the A9TL, Caiwei offers a LCD projector that features 2400 ANSI lumens, a contrast of 16000:1 and a resolution of HDTV 1920 x 1080. The built-in LED technology features a light source lifespan of 30000 hours. With four hours of daily operation, this corresponds to a period of 20.5 years. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. Looking at practical performance, up to 352 cm can be illuminated with 2400 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 235 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Also on board is a local media player that allows reading and playing content directly from storage media. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
2400
Screen
1067 Lux (200 cm Screen width)
Contrast
16000:1 full on/off
16000:1 full on/off
Black Level
0,1500 min. Lumen
0,067 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Video
MPG, MPEG-1, MPEG-2, MPEG-4, AVI, MP4, DIVX, TS, TRP, MKV, WMV, RM, RMVB
Audio
MP3, AAC, WMA, RM, FLAC, Ogg, etc
JPEG, JPEG, BMP, GIF, PNG
Text
TXT, Word, Excel, PPT, PDF
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
6 Color LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness quality The screen width may also be larger. Perfect
252 cm (no Zoom)
Lux:
1067 Lux
Contrast:
16000:1
Candela pro m²:
339 cd/m²
Foot-Lamberts:
99 fL
•
Focus
Automatic
Zoom
Powered 50%-100% Digital
Objective
-
Throw Ratio
1,26:1
Audio
2 x 38W 1200CC
Connections
2x HDMI 2.0 (eARC, CEC) in
AV in
Mini Jack Audio in und out
2x USB-A in
RJ45 in
Bluetooth 5.4
Full HD 1080P compatible Integrated Mediaplayer Eco Mode Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible.
Full HD 1080P compatible
