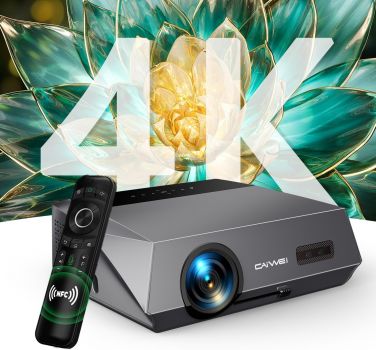

The hardware properties of the A10Q manufactured by Caiwei include 1500 ANSI lumens, a HDTV 1920 x 1080 resolution and a contrast value of 16000:1. Thanks to LED technology, the projector is rated for a lifespan of up to 50000 hours. With four hours of daily operation, this corresponds to a period of 34.2 years. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Regarding projection size, the value of 1500 ANSI lumens allows for an image width of up to 393 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 262 cm. For media input, video signals up to 1080P and 4K are supported. Furthermore, thanks to Android TV, the projector functions as a standalone entertainment center for various video-on-demand services. As an additional feature, an integrated media player enables the direct playback of files without an external source device. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. For integration into professional environments, an RJ45 connection is available for network control and remote maintenance. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. Since entering the market in 2024, production has been discontinued; the manufacturer no longer actively offers the model. This model continues to hold a solid place in our database search queries.
Display Type
3 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
1500
Screen
667 Lux (200 cm Screen width)
Contrast
16000:1 full on/off
16000:1 full on/off
Black Level
0,0938 min. Lumen
0,042 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Video
MPG, MPEG-1, MPEG-2, MPEG-4, AVI, MP4, DIVX, TS, TRP, MKV, WMV, RM, RMVB
Audio
MP3, AAC, WMA, RM, FLAC, Ogg, etc
JPEG, JPEG, BMP, GIF, PNG
Text
TXT, Word, Excel, PPT, PDF
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
170W TS-LED
Light Life
50000 h.
Operating Costs
0,00 € LED
Calculated brightness quality Perfect
270 cm (no Zoom)
Lux:
667 Lux
Contrast:
16000:1
Candela pro m²:
212 cd/m²
Foot-Lamberts:
62 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,35:1
Audio
38W + SubWoofer
Connections
2x HDMI in
D-sub 15pin in
Mini Jack Audio in und out
2x USB in
RJ45 in
Bluetooth 5.1
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction High Dynamic Range (HDR) Wi-Fi network compatible. Lan network compatible. Android 9.0 TV Auto 6D Keystone Smart Screen Orientation MEMC
Full HD 1080P compatible
