Brief Introduction
Beta 2.5 |

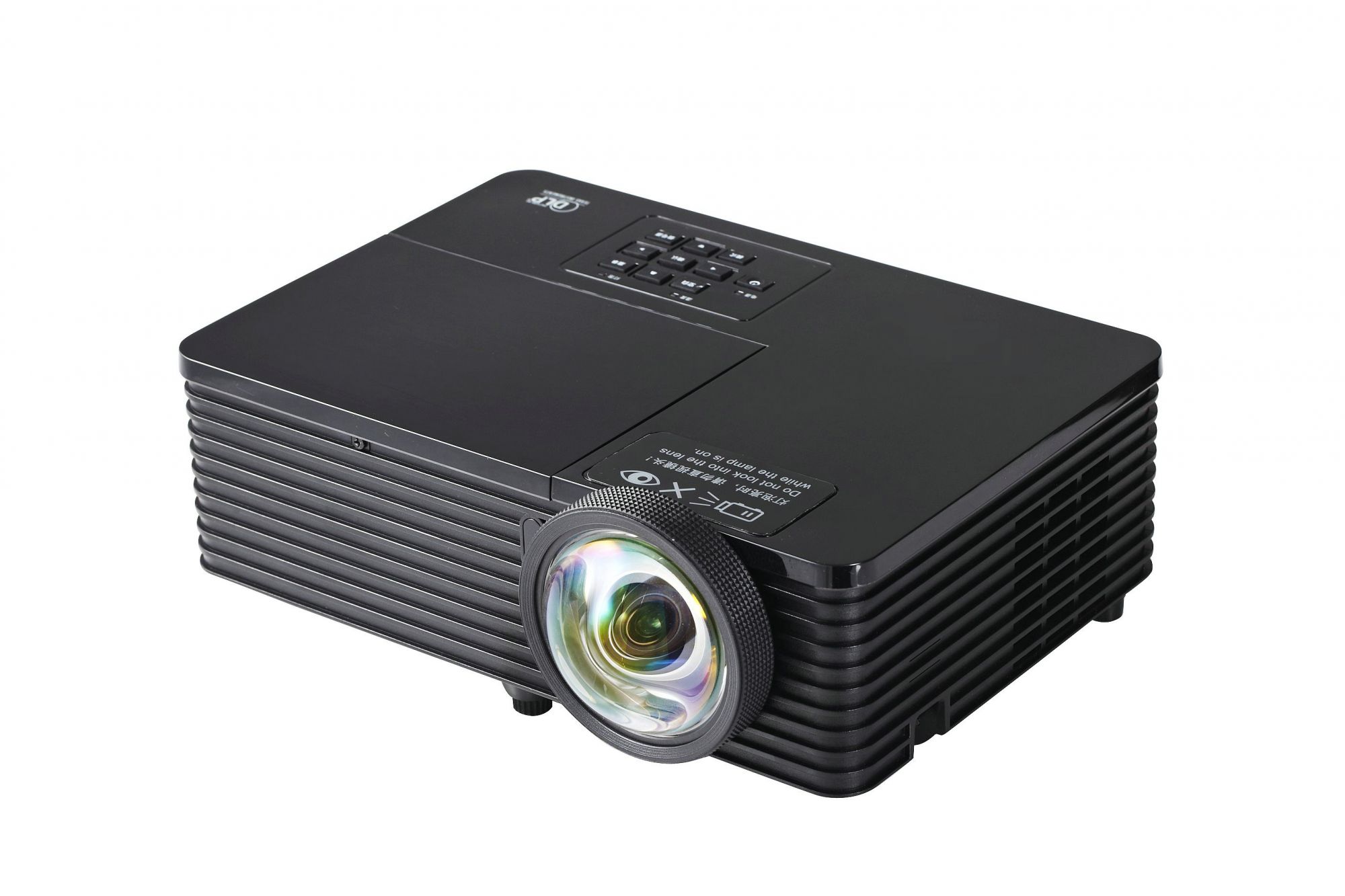

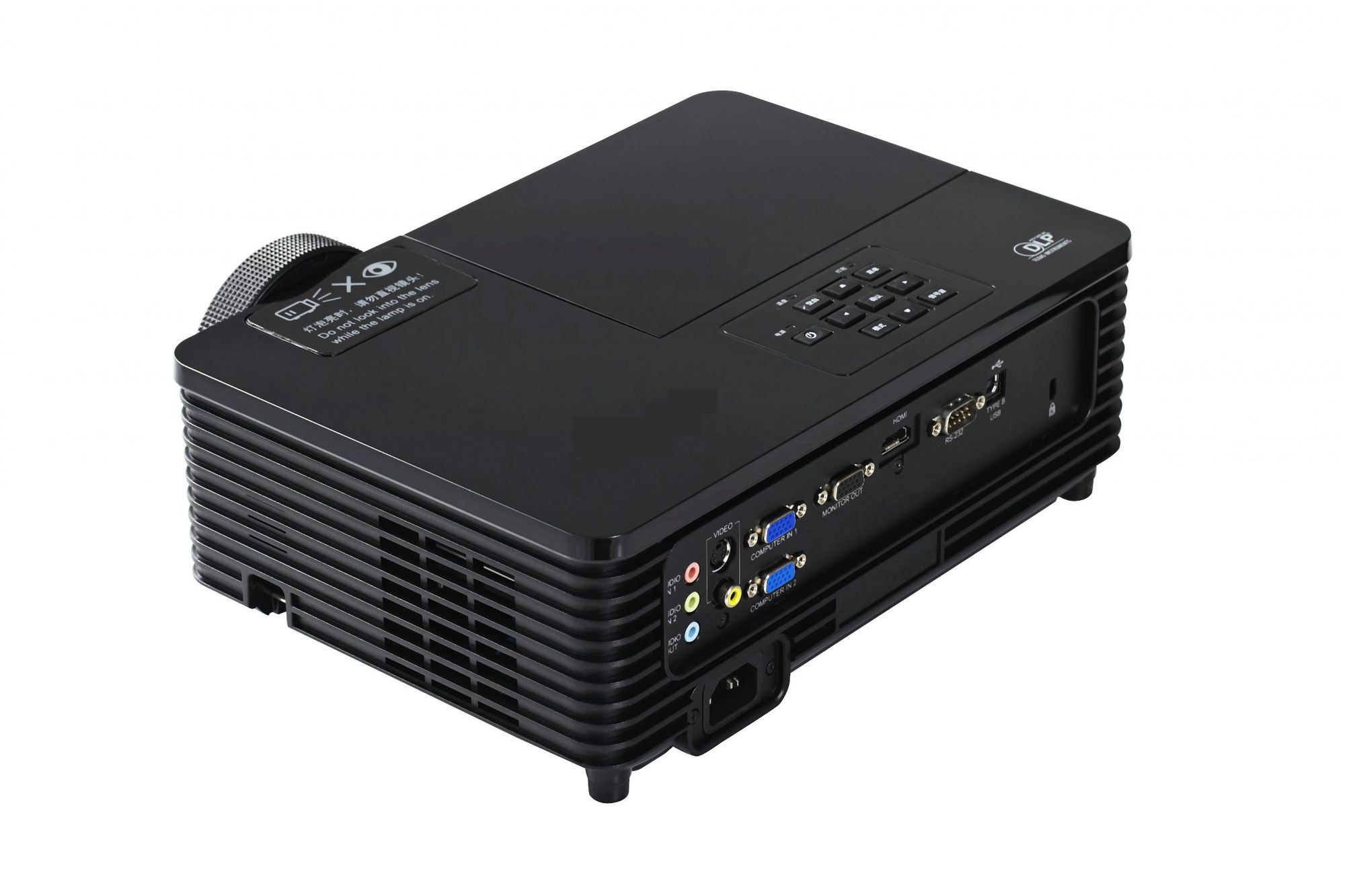

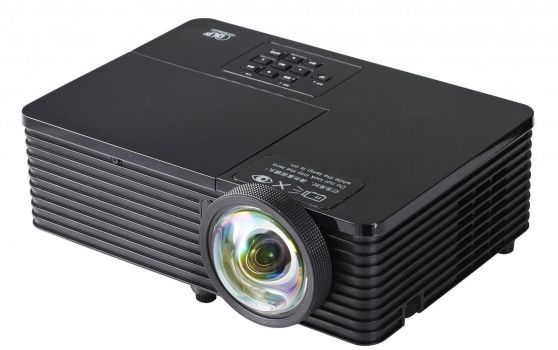

The MS1024W 3D DLP projector from Brilens has 210 Ansi lumens, a contrast of 10000:1 and an XGA 1024 x 768 resolution. The manufacturer specifies a lamp life of 10000 hours, which is over 13.7 years if enjoyed for two hours every day. As Brilens specifies the brightness of the projector in lumens, we have calculated an approximate ansi lumen value in this case. 126 cm image width, the projector will be able to illuminate well. If room light is available, however, the picture width should ideally not exceed 84 cm. Playing 1080P and 3D is also no problem for the projector.
|
| Display Type |
1 x 0,55 " DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
210 / 3500 Lumen |
Screen |
70 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
0,0210 min. Lumen |
0,007 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Very narrow picture width and rooms with very little light. |
| Light Source |
-
|
|
| Light Life |
5000 h. / 10000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
70 Lux |
|
Room light max.: |
14 Lux |
|
Candela pro m²: |
24 cd/m² |
|
Foot-Lamberts: |
7 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |

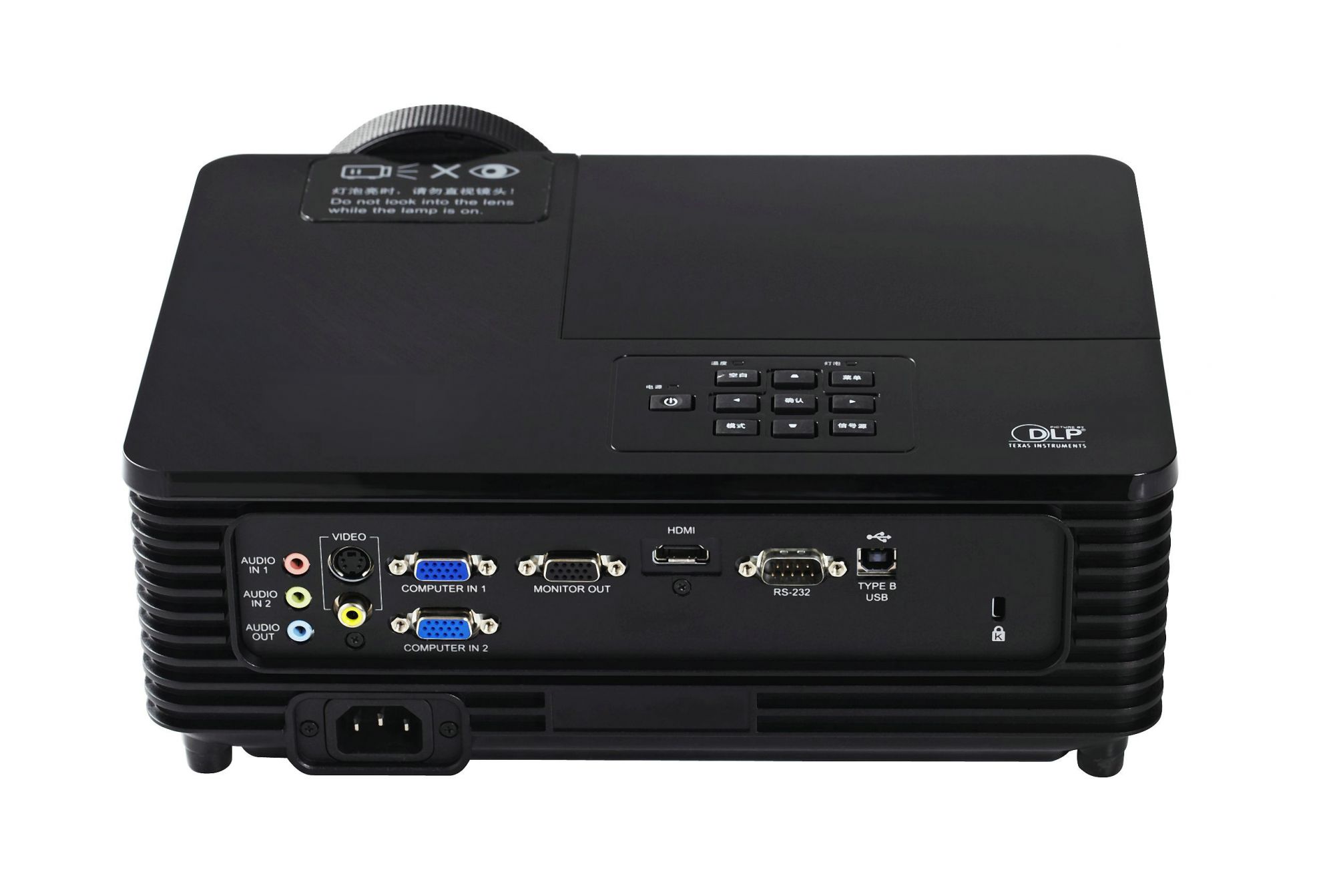

| Connections |
HDMI in
D-sub 15pin 2x in und out
Cinch Video in
S-Video in
Mini Jack Audio 2x in und 1x out
USB in
RS232C Din 9 pin in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
-
|
| Operating Noise |
- |
|
| Weight |
- |
| Keystone |
Vert.: +/-40°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
7 fL
/ max. 126 cm screen width |
| Candela m² |
24 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Brilens MS1024W compared to others current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
1 |
Weight: |
|
0 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
100 |
Power cons.: |
|
0 |
| Picture Total Points: | 34 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
2 |
| Ranking: |
781 (From: 849) |
|
|
|
| Status |
2017 Current model // Last update of the data: 2024-06-04
Created: 2018-03-19 17:19:55
|
| Data |
 Product Sheet english HC

|
Brilens Website
