BeamBox Evolution R 1

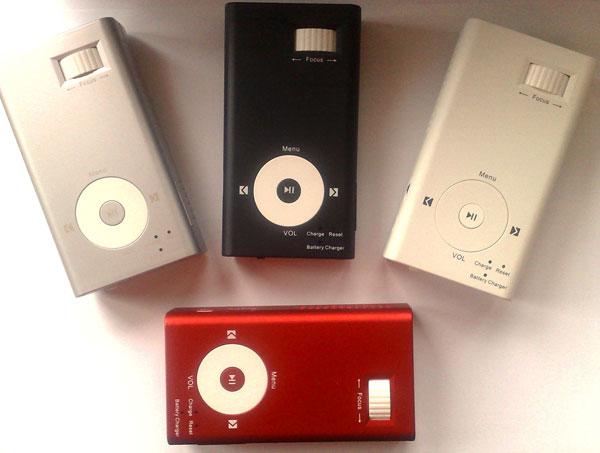

BeamBox Evolution R-1 Black | BeamBox Evolution R-1 Red | BeamBox Evolution R-1 Silver | BeamBox Evolution R-1 White
Image BeamBox Evolution R 1
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!
Model Overview This projector from BeamBox utilizes LCOS technology, achieving 30 ANSI lumens and a contrast of 200:1 at a resolution of VGA 640 x 480. The LED unit of this model is rated for up to 30000 hours of runtime, which translates to 20.5 years with 4 hours of daily use.
Regarding the power supply, the projector features an internal battery that enables a mobile runtime of up to 1 hour.
The projector was released in 2009 and is officially no longer distributed by BeamBox.
Display Type       Lcos Panel
      VGA 4/3 Liquid Crystal on Silicon (LCOS)
Ansi-Lumen
Projector
 30
Screen
 10 Lux (200 cm Screen width)
Contrast 200:1 full on/off 200:1 full on/off
Black Level 0,1500 min. Lumen 0,051 min. Lumen
Offset -
Resolution VGA 640 x 480
307.200 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Game-Portabel | Battery projector | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
The projection is too dark.
The screen width should be reduced.
Lux: 10 Lux
Contrast: 200:1
Candela pro m²: 3 cd/m²
Foot-Lamberts: 1 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom
Objective -
Throw Ratio -
Audio 1W Mono
Connections -
Ceiling Mounting -
Power -
Size WxHxD 59 x 28 x 108 mm (2,3"x1,1"x4,3") 0,18 L/dm³
Operating Noise -

Weight 0,175 kg / 0 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 1 fL / max. 48 cm screen width
Candela m² 3 cd/m²
Features 1 Std.
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The BeamBox Evolution R 1 compared to others not current "Game-Portabel" projectors.
Ansi-Lumen:
1 Weight:
100
Contrast:
1 dB: 0
Black level:
97 Power cons.: 0
Picture Total Points:33 Projector Total Points:0
Popularity Top 100
0 popularity points 13 popularity points 11 popularity points 4 popularity points 3 popularity points 5 popularity points
Points:
5
Ranking: 655 (From: 1100)
Status 2009 Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet english HC

Projektor BeamBox Evolution R 1
