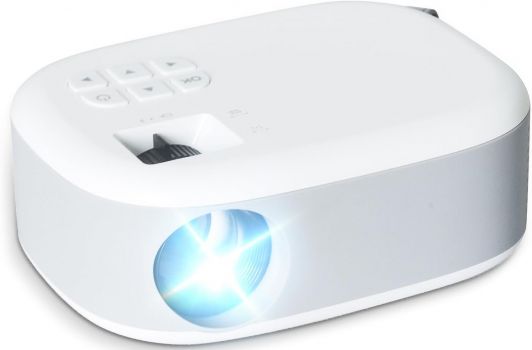

The projector N1 Mini by LQWELL utilizes LCD technology and, according to the spec sheet, achieves 80 ANSI lumens, a contrast of 15000:1 at a resolution of HDTV 1280 x 720. An LED lifespan of 50000 hours is noted in the data sheet for this model – equivalent to a usable life of 34.2 years at 4 hours a day. A look at the light output reveals: The 80 ANSI lumens are sufficient to illuminate an image width of up to 91 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 61 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
80
Screen
36 Lux (200 cm Screen width)
Contrast
15000:1 full on/off
15000:1 full on/off
Black Level
0,0053 min. Lumen
0,002 min. Lumen
Offset
-
Resolution
HDTV 1280 x 720
921.600 Pixel HDTV 1920 x 1080 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
50000 h.
Operating Costs
0,00 € LED
The projection is too dark. The screen width should be reduced.
Lux:
36 Lux
Contrast:
15000:1
Candela pro m²:
10 cd/m²
Foot-Lamberts:
3 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
-
Connections
HDMI in
USB-A in
Audio Mini Jack out
Composite Video
Full HD 1080P compatible
