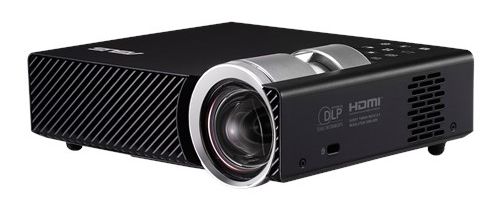

A projector from Asus is the B1M, whose LED-DLP model delivers 700 ANSI lumens, a resolution of WXGA 1280 x 800 and a contrast of 3500:1. The LED unit of this model is rated for up to 30000 hours of runtime – equivalent to a usable life of 20.5 years at 4 hours a day. Regarding projection size, the value of 700 ANSI lumens allows for an image width of up to 269 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 179 cm. Also on board is a local media player that allows reading and playing content directly from storage media.
Display Type
1 x 0,45" DLP Chip WXGA 16/10 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
700
Screen
280 Lux (200 cm Screen width)
Contrast
3500:1 full on/off
3500:1 full on/off
Black Level
0,2000 min. Lumen
0,08 min. Lumen
Offset
52,5% 3 cm over screen top edge →
SCREEN
+Projector
Resolution
WXGA 1280 x 800
1.024.000 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p Media player formats: VideoMOV, MP4, AVI, MKV, MPG, MPEG, WMV
AudioMP2, MP3, WAV, WMA, AAC
PictureJPEG, BMP, JPEG
Document ViewerAdobe PDF, Microsoft PowePoint, Microsoft Excel, Microsoft Word, Text
Application
Micro-Portabel | Small mobile presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
R/G/B LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (2.4)
180 cm (no Zoom)
Lux:
280 Lux
Contrast:
3500:1
Candela pro m²:
89 cd/m²
Foot-Lamberts:
26 fL
66 cm
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
0,9:1
Audio
2 x 2W
Connections
HDMI in
D-sub 15 pin in
Cinch Video in
USB in
SD Card slot in
Integrated Mediaplayer
