Appotronics AL-FU850A
Brief Introduction
Beta 2.5

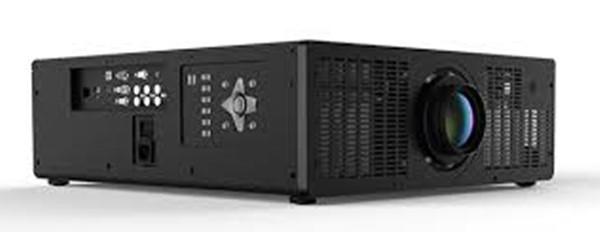

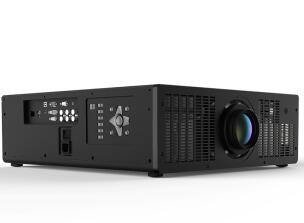

 A brief introduction to the AL-FU850A: The Appotronics stationary 3D laser DLP projector offers 8500 Ansi lumens, a contrast of 100000:1 and a WUXGA 1920 x 1200 resolution. The manufacturer specifies a laser service life of 20000 hours, which is over 13.7 years with a daily viewing time of 4 hours. Including a lens shift and keystone correction function, which provides freedom during installation. 8500 Ansi lumens ensure that a picture width of 937 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 625 cm. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Playing 1080P and 3D is also no problem for the projector. Even projection onto the ceiling is possible thanks to the 360° projection. On the market since 2019, the model is no longer offered by the manufacturer Appotronics.
Display Type 1 x 0,67" DMD DLP Chip
WUXGA 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 8500
Screen
 3778 Lux (200 cm Screen width)
Contrast 100000:1 100000:1
Black Level 0,0850 min. Lumen 0,038 min. Lumen
Offset -
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready)
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Light Life 20000 h.
Operating Costs 0,00 € Laser
124 cm (no Zoom)



Lux: 3778 Lux
Room light max.: 756 Lux
Candela pro m²: 1203 cd/m²
Foot-Lamberts: 351 fL


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom No Zoom
Objective optional
Throw Ratio 0,62:1
Audio -
Connections HDMI in
DVI in
D-sub 15pin in und out
5BNC
RJ45 in
Ceiling Mounting Yes, is possible.
Power 860W
Size WxHxD 592 x 180 x 535 mm (23,3"x7,1"x21,1") 57,01 L/dm³
Operating Noise 39 / 35 dB in Eco Mode
Key: 45 cm
Key: 45 cm

Without offset

Key: 45 cm
Key: 45 cm
Weight 35,00 kg / 77,16 lbs.
Keystone Vert.: +/-20°
Hori.: +/-20°
Illumination -
Frequenz -
Foot-Lamberts 351 fL / max. 937 cm screen width
1203 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Eco Mode
360° installable
24/7 continuous operation capable
Edge Blending
Lan network compatible.
Screen Mirroring -
In Comparison
The Appotronics AL-FU850A compared to others not current "Stationary" projectors.
Ansi-Lumen:
85 Weight:
84
Contrast:
2 dB:
94
Black level:
100 Power cons.:
89
Picture Total Points:62 Projector Total Points:89
Popularity Top 100
30 popularity points 38 popularity points 42 popularity points 41 popularity points 32 popularity points 46 popularity points
Points:
46
Ranking: 194 (From: 2514)
Optional accessories
DeckenhalterungHeavyDuty378,28 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
6 4.68-7.96:19.4-15.9 m Powered
5 2.86-4.85:15.7-9.7 m Powered
4 1.62-2.92:13.2-5.8 m Powered
3 1.3-1.68:12.6-3.4 m Powered
Fix Optional Lenses
2 0.8:1 1.6 m No Zoom
1 0.62:1 1.2 m No Zoom
Status 2019 Discontinued (EOL) // Last update of the data: 2024-10-02
Created:
Data
Appotronics Website

Projektor Appotronics AL-FU850A Projektor Appotronics AL-FU850A User Manual english (3.59 MB)
Product Sheet english HC
