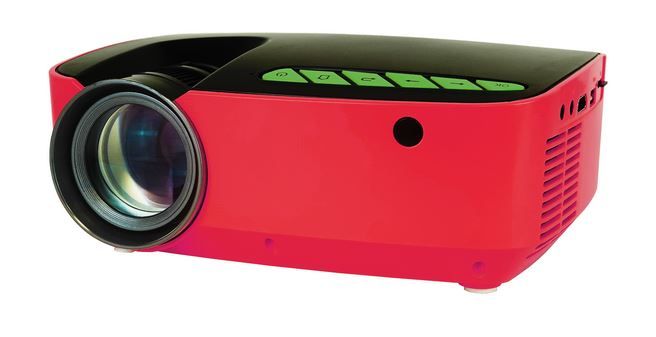

The basic data of the AAXA CP3 includes 300 ANSI lumens, a resolution of HDTV 1280 x 720 as well as a contrast of 1000:1. The LED unit of this model is rated for up to 20000 hours of runtime, covering an estimated 13.7 years based on a 4-hour daily runtime. Regarding projection size, the value of 300 ANSI lumens allows for an image width of up to 176 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 117 cm. Regarding signal processing, the model is compatible with incoming 1080P content. Also on board is a local media player that allows reading and playing content directly from storage media. Since entering the market in 2022, production has been discontinued; the manufacturer no longer actively offers the model.
Display Type
LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
300
Screen
133 Lux (200 cm Screen width)
Contrast
1000:1 full on/off
1000:1 full on/off
Black Level
0,3000 min. Lumen
0,133 min. Lumen
Offset
-
Resolution
HDTV 1280 x 720
921.600 Pixel
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, EDTV 480p, 576p Media player formats: AVI, MP4, JPEG
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
20000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
280 cm (no Zoom)
Lux:
133 Lux
Contrast:
1000:1
Candela pro m²:
41 cd/m²
Foot-Lamberts:
12 fL
•
Focus
Manual
Zoom
No Zoom
Objective
-
Throw Ratio
1,4:1
Audio
-

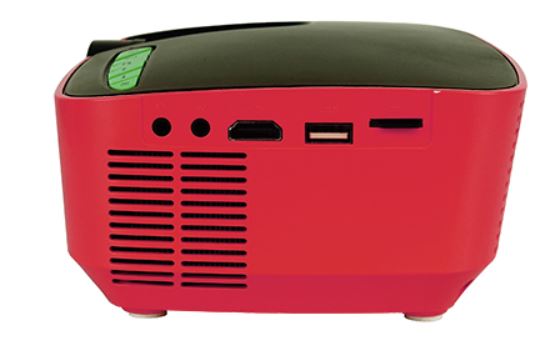

Connections
HDMI in
Mini Jack Audio in und out
USB in
Micro SD
Full HD 1080P compatible
