Brief Introduction
Beta 2.5 |
With the DW6035, manufacturer Vivitek offers a stationary DLP projector with WXGA 1280 x 800 resolution and a contrast of 3000:1. The integrated lens shift gives freedom when positioning the projector. 787 cm image width, the projector will be able to illuminate well. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 525 cm here. The model was built by Vivitek in 2014 and is no longer current.
|
| Display Type |
1 x 0,65" Chip DLP
WXGA 16/10 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6000 |
Screen |
2400 Lux (200 cm Screen width) |
| Contrast |
3000:1 full on/off |
3000:1 full on/off
|
| Black Level |
2,0000 min. Lumen |
0,801 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-10%
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| 3D Compatibility |
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
2 x 280W Lamp
Article Nr.: 5811100818-S
|
|
| Light Life |
2000 h. 2500 h. in eco Mode |
| Operating Costs |
|
|
|
 |
|
Lux: |
2400 Lux |
|
Room light max.: |
480 Lux |
|
Candela pro m²: |
764 cd/m² |
|
Foot-Lamberts: |
223 fL |
|
 |
| 63 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
DVI-D in
D-sub 15pin in
5 x BNC RGBHV in
Cinch Video in
S-Video in
USB in
RS232C Din 9 pin in
RJ45 in
12V Trigger out
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
710 / 570W in Eco Mode |
| Size WxHxD |
508 x 195 x 389 mm (20"x7,7"x15,3") 38,53 L/dm³
|
| Operating Noise |
39 / 34 dB in Eco Mode |
Shift: 63 cm
|
Shift: 20 cm
|
|
Shift: 20 cm
|
| |
|
|
| Weight |
17,00 kg / 37,48 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15,30-90 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
223 fL
/ max. 787 cm screen width |
| Candela m² |
764 cd/m² |
| Features |
 Lens shift Funktion
Eco Mode
Remote control with laser pointer
Lan network compatible.
|
|
- |
In Comparison
The Vivitek DW6035 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
59 |
Weight: |
|
94 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
94 |
Power cons.: |
|
91 |
| Picture Total Points: | 51 |
Projector Total Points: | 93 |
|
| Popularity Top 100 |
|
| Points: |
|
51 |
| Ranking: |
119 (From: 2514) |
|
|
|
|
|
|

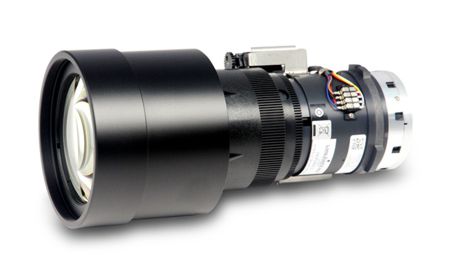

Optional Lenses |
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2014-05-05 14:46:02
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (2.42 MB)
|
Vivitek Website
