Brief Introduction
Beta 2.5 |

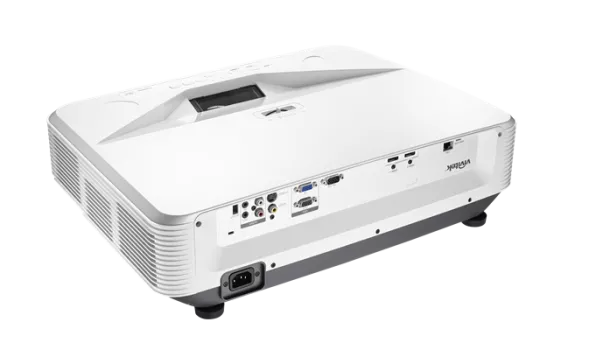

The short-throw Vivitek DX761Z-UST 3D laser DLP projector has 3800 Ansi lumens, a contrast of 20000:1 and an XGA 1024 x 768 resolution. Due to the laser, the projector is specified with 20000 hours of light life, which is over 13.7 years with a daily viewing time of 4 hours. A built-in horizontal and vertical keystone correction provides freedom when positioning the projector. This projector has a projection ratio of just 0.3:1. For a 2 m wide image, the projector only needs to be positioned 60 cm away from the screen. Playing 1080P and 3D is also no problem for the projector. The projector is very quiet compared to others with an operating noise of 30 decibels. This model is no longer offered by Vivitek.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3800 |
Screen |
1267 Lux (200 cm Screen width) |
| Contrast |
20000:1 full on/off |
20000:1 full on/off
|
| Black Level |
0,1900 min. Lumen |
0,063 min. Lumen |
| Offset |
67% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray (komprimiert) | 4K UHD Blu-ray |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Short Distance | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
60 cm (no Zoom)
|
 |
|
Lux: |
1267 Lux |
|
Room light max.: |
253 Lux |
|
Candela pro m²: |
404 cd/m² |
|
Foot-Lamberts: |
118 fL |
|
 |
| 101 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
- |
| Throw Ratio |
0,3:1 |
| Audio |
1 x 10W |
| Connections |
HDMI 1.4b in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB Typ A,B in
RS232C Din 9 pin in
RJ45 in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
508,7 x 144,50 x 390 mm (20"x5,7"x15,4") 28,53 L/dm³
|
| Operating Noise |
30 / 28 dB in Eco Mode |
Key: 136 cm |
Key: 35 cm |
| Key: 35 cm |
| |
|
|
| Weight |
10,50 kg / 23,15 lbs. |
| Keystone |
Vert.: +/-30°
Hori.: +/-30°
|
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
118 fL
/ max. 537 cm screen width |
| Candela m² |
404 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Lan network compatible.
Short-throw projector
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Vivitek DX761Z-UST compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
45 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
65 |
| Black level: |
|
100 |
Power cons.: |
|
0 |
| Picture Total Points: | 49 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
19 |
| Ranking: |
261 (From: 974) |
|
|
|
|
|
| Status |
2017 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2017-03-16 16:23:00
|
