Brief Introduction
Beta 2.5 |

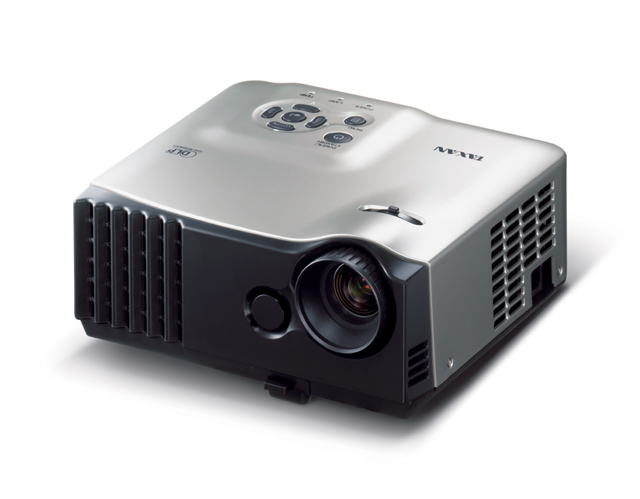

A brief introduction to the TAXAN U6 232. The standard portable DLP projector has an XGA 1024 x 768 resolution and a contrast of 2000:1. The projector will be able to illuminate an image width of 435 cm well. However, if room light is available, the picture width should ideally not exceed 290 cm. On the market since 2007, the model is no longer offered by the manufacturer TAXAN.
|
| Display Type |
1 x 0,55" DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2500 |
Screen |
833 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,2500 min. Lumen |
0,417 min. Lumen |
| Offset |
65,1% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA+ 1400 x 1050 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

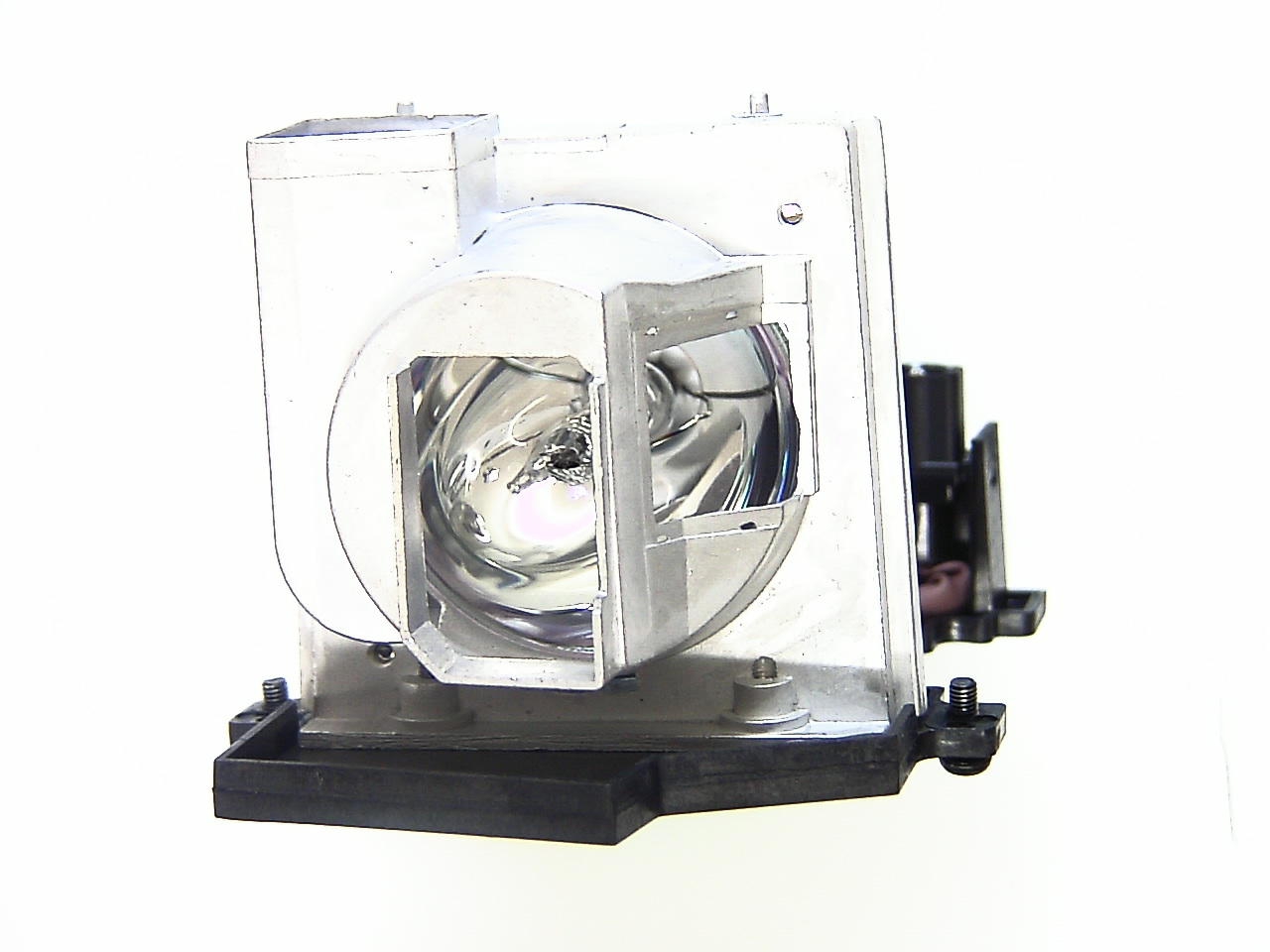

230W Lamp
Article Nr.: LU6230
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
387 - 426 cm
|
 |
|
Lux: |
833 Lux |
|
Room light max.: |
167 Lux |
|
Candela pro m²: |
264 cd/m² |
|
Foot-Lamberts: |
77 fL |
|
 |
| 98 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,09 |
| Objective |
F=2,35-2,47 f=21,8-23,8 mm |
| Throw Ratio |
1,937-2,132:1 show |
| Audio |
2W Mono |
| Connections |
D-sub 15 pin in und out
S-Video in
Cinch Video in
Mini Jack Audio in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
300 / 230W in Eco Mode |
| Size WxHxD |
238 x 93 x 209 mm (9,4"x3,7"x8,2") 4,63 L/dm³
|
| Operating Noise |
33 / 28 dB in Eco Mode |
|
| Weight |
2,00 kg / 4,41 lbs. |
| Keystone |
Vert.: +/-40°
|
| Illumination |
80% |
| Frequenz |
H-sync: 31,5-80 kHz
V-sync: 56-85 Hz
|
| Foot-Lamberts |
77 fL
/ max. 435 cm screen width |
| Candela m² |
264 cd/m² |
| Features |
 Freeze
Eco Mode
Kensington Slot
Gamma correction
|
|
- |
In Comparison
The TAXAN U6 232 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
29 |
Weight: |
|
91 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
95 |
Power cons.: |
|
97 |
| Picture Total Points: | 42 |
Projector Total Points: | 76 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5567 (From: 7662) |
|
|
|
|
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2023-08-04
|
