Brief Introduction
Beta 2.5 |

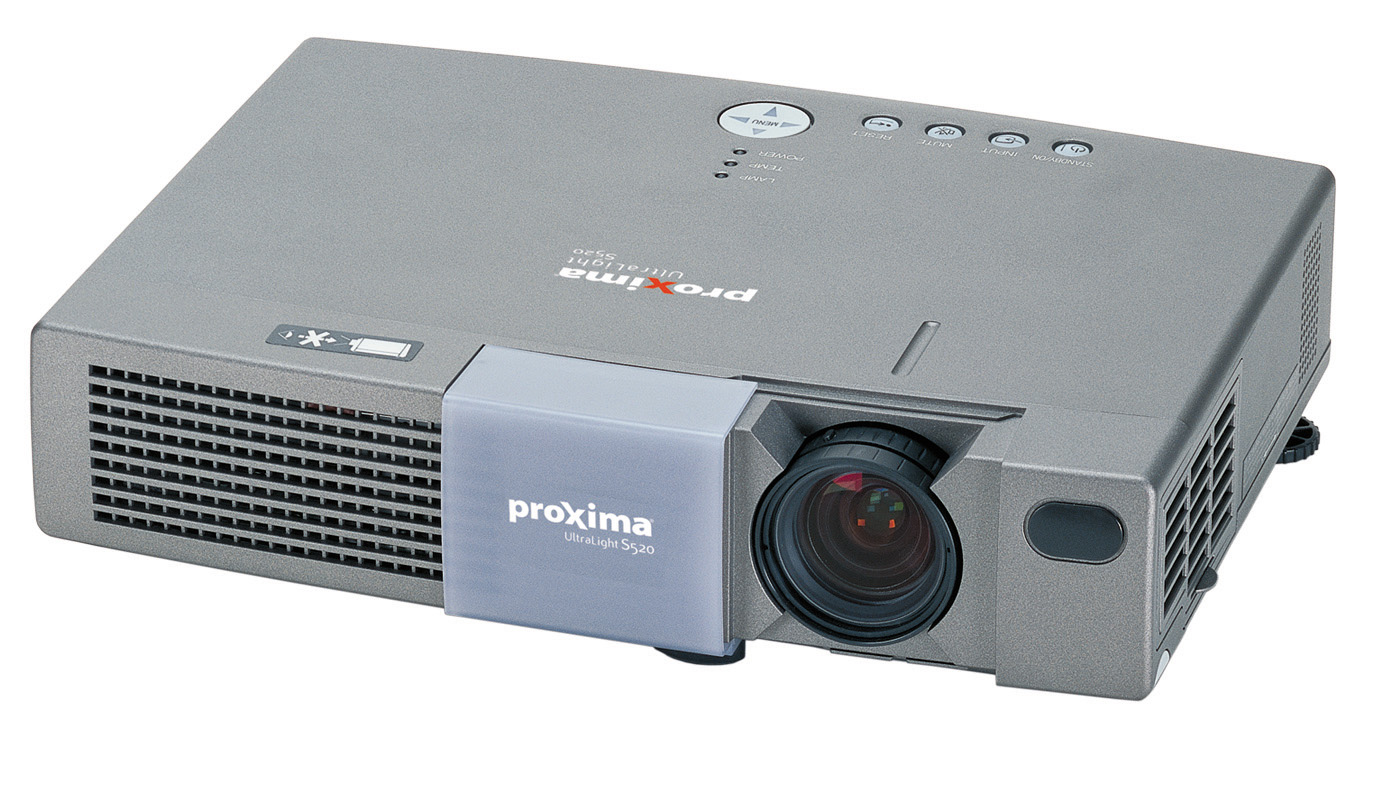

A brief introduction to the UltraLight S520: The Proxima LCD projector offers 800 Ansi lumens, a contrast of 200:1 and an SVGA 800 x 600 resolution. Thanks to the brightness of 800 Ansi lumens, an image width of 246 cm is possible. In room light, the picture should be max. 164 cm wide. The projector was launched in 2000 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,9" LCD TFT Panel
SVGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
800 |
Screen |
267 Lux (200 cm Screen width) |
| Contrast |
200:1 full on/off |
200:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,355 min. Lumen |
| Offset |
36% show
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
XGA 1024 x 768 compressed |
| Video Modes |
NTSC, NTSC 4.43, PAL (-BGDHI), SECAM, PAL-M, PAL-N, PAL60 |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

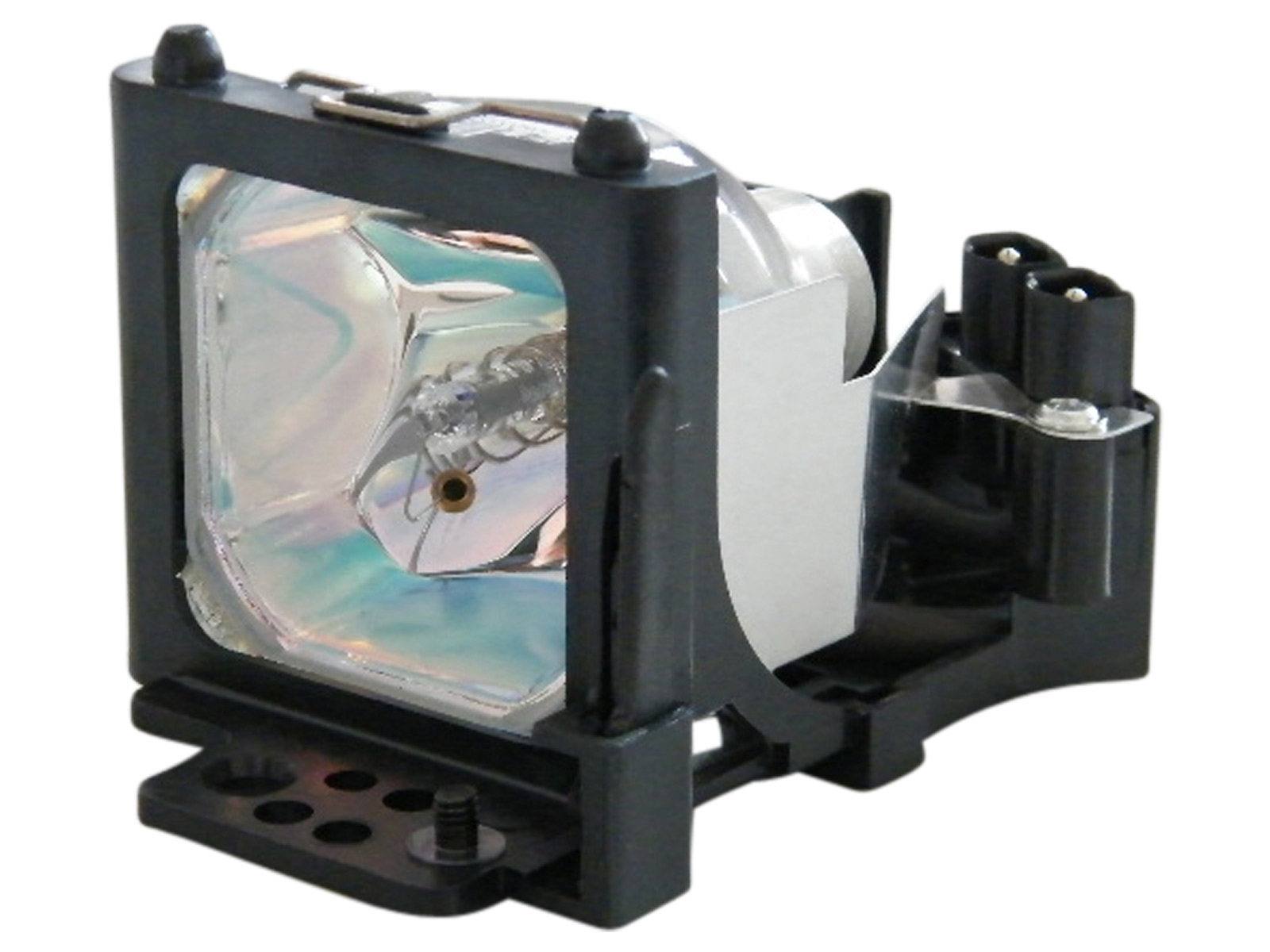

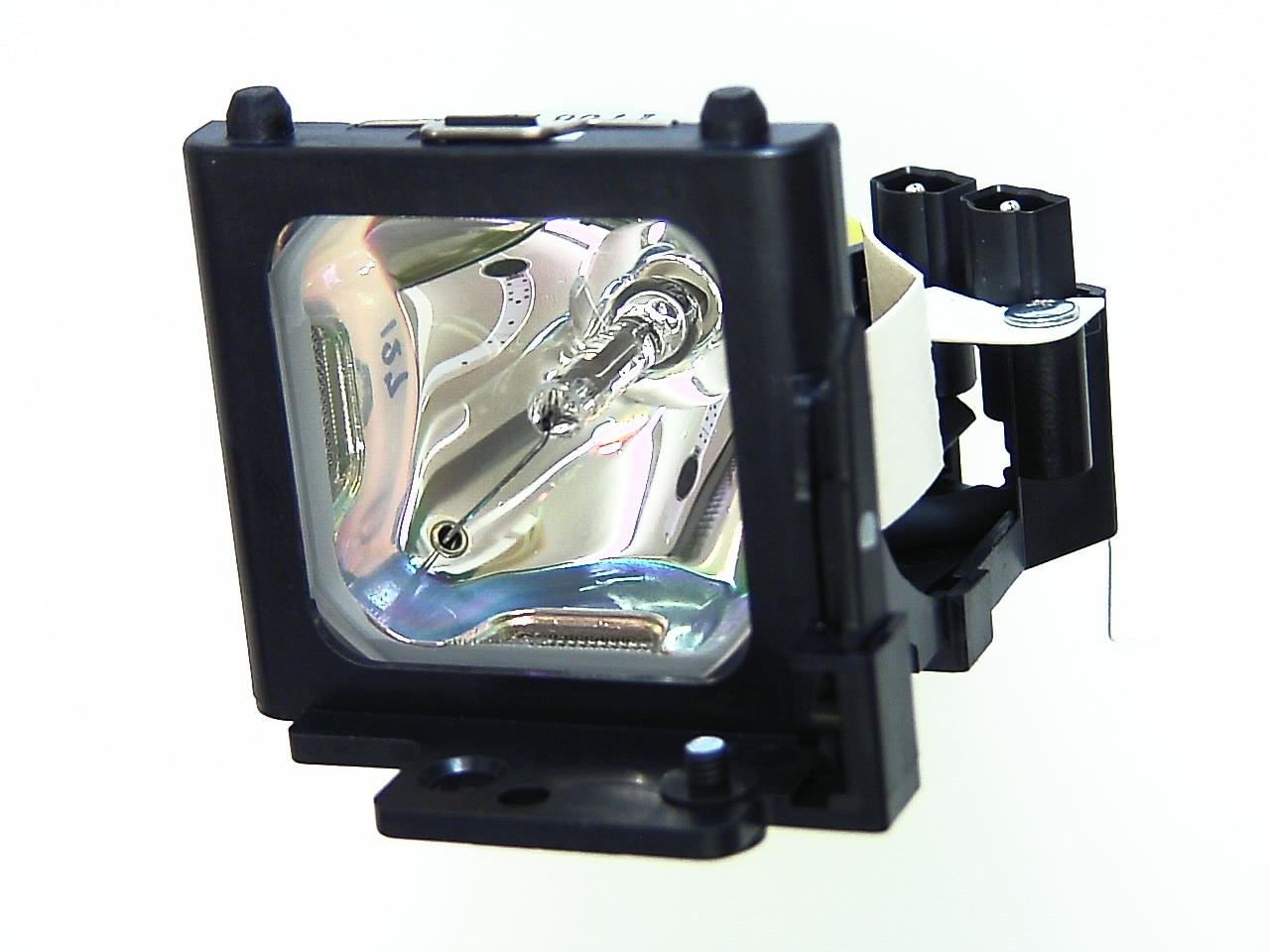

130W UHB Lamp
Article Nr.: LAMP-029
|
|
| Light Life |
2000 h. |
| Operating Costs |
|
|
194 - 232 cm
|
 |
|
Lux: |
267 Lux |
|
Room light max.: |
53 Lux |
|
Candela pro m²: |
86 cd/m² |
|
Foot-Lamberts: |
25 fL |
|
 |
| 54 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,0-2,3 f=17,7-21,2 mm |
| Throw Ratio |
0,97-1,16:1 show |
| Audio |
1W Mono |
| Connections |
S-Video
RCA video
Audio 1 x mini jack
Computer (15 pin D sub) |
| Ceiling Mounting |
- |
| Power |
200W |
| Size WxHxD |
289 x 60 x 210 mm (11,4"x2,4"x8,3") 3,64 L/dm³
|
| Operating Noise |
34dB |
|
| Weight |
2,30 kg / 5,07 lbs. |
| Keystone |
- |
| Illumination |
70% |
| Frequenz |
H-sync: 31-78 kHz
V-sync: 56-120 Hz
Range max.: 95 MHz |
| Foot-Lamberts |
25 fL
/ max. 246 cm screen width |
| Candela m² |
86 cd/m² |
| Features |
 Freeze
Blank (Black screen button)
Short-throw projector
|
|
- |
In Comparison
The Proxima UltraLight S520 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
8 |
Weight: |
|
89 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
85 |
Power cons.: |
|
98 |
| Picture Total Points: | 31 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
6 |
| Ranking: |
5064 (From: 7662) |
|
|
|
|
|
| Status |
2000 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
User Manual (0.95 MB)
|
