Brief Introduction
Beta 2.5 |
The Proxima PRO AV 9550 LCD projector has 5800 Ansi lumens, a contrast of 600:1 and an SXGA 1280 x 1024 resolution. With the lens shift function, the projector can be positioned very freely. An image width of up to 645 cm is possible, if the image width is smaller (we recommend max. 430 cm), rooms with residual light are also no problem. The model is no longer offered by Proxima, but is still very popular in our projector database.
|
| Display Type |
3 x 1,8" LCD TFT Panel mit MLA
SXGA 5/4 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
5800 / 2900 im singel lamp Mode |
Screen |
1813 Lux (200 cm Screen width) |
| Contrast |
600:1 full on/off |
600:1 full on/off
|
| Black Level |
9,6667 min. Lumen |
3,038 min. Lumen |
| Lens shift |
Vert.: +/-50%
|
| Resolution |
SXGA 1280 x 1024
1.310.720 Pixel |
| Video Modes |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, HDTV |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |

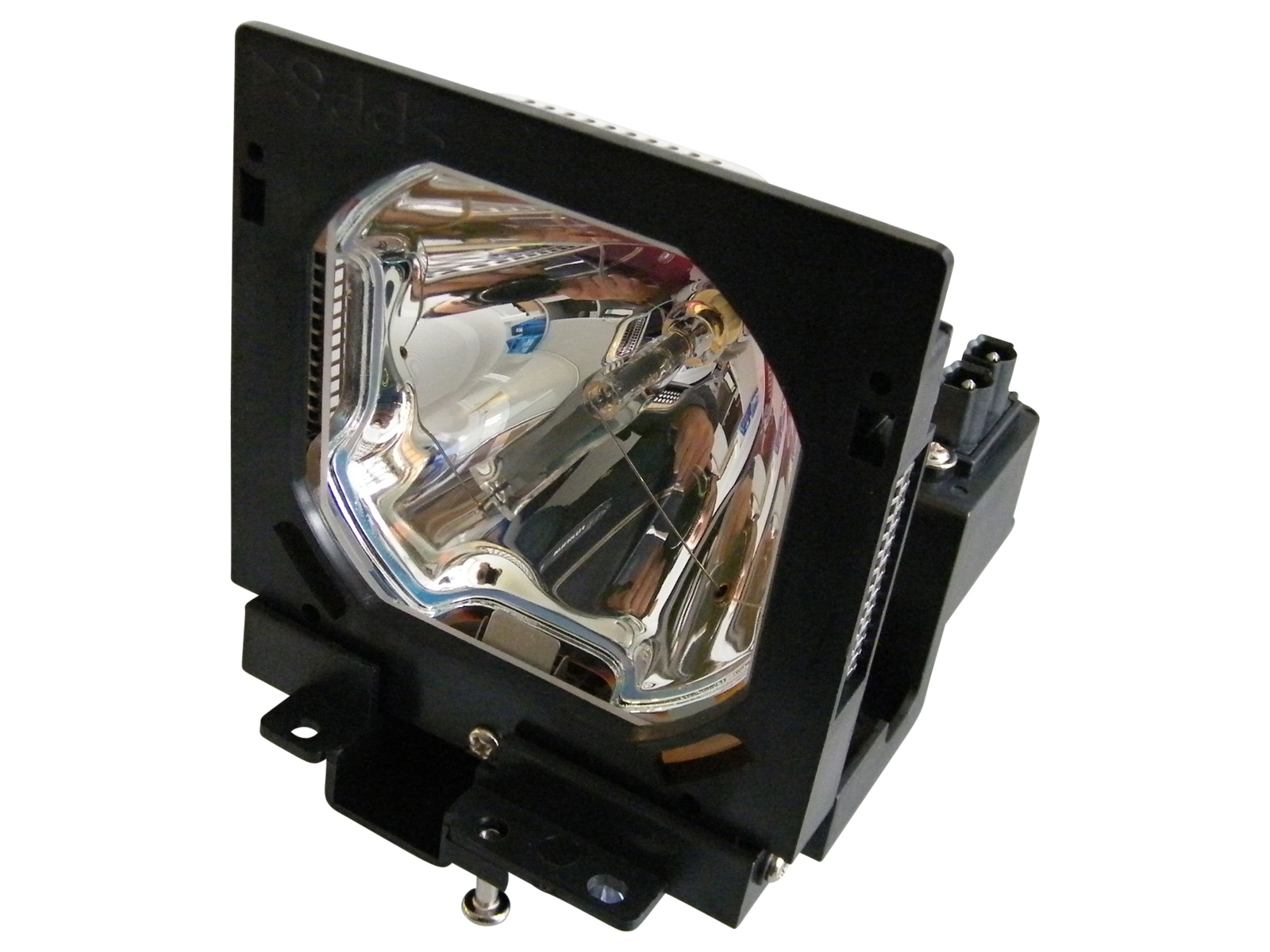

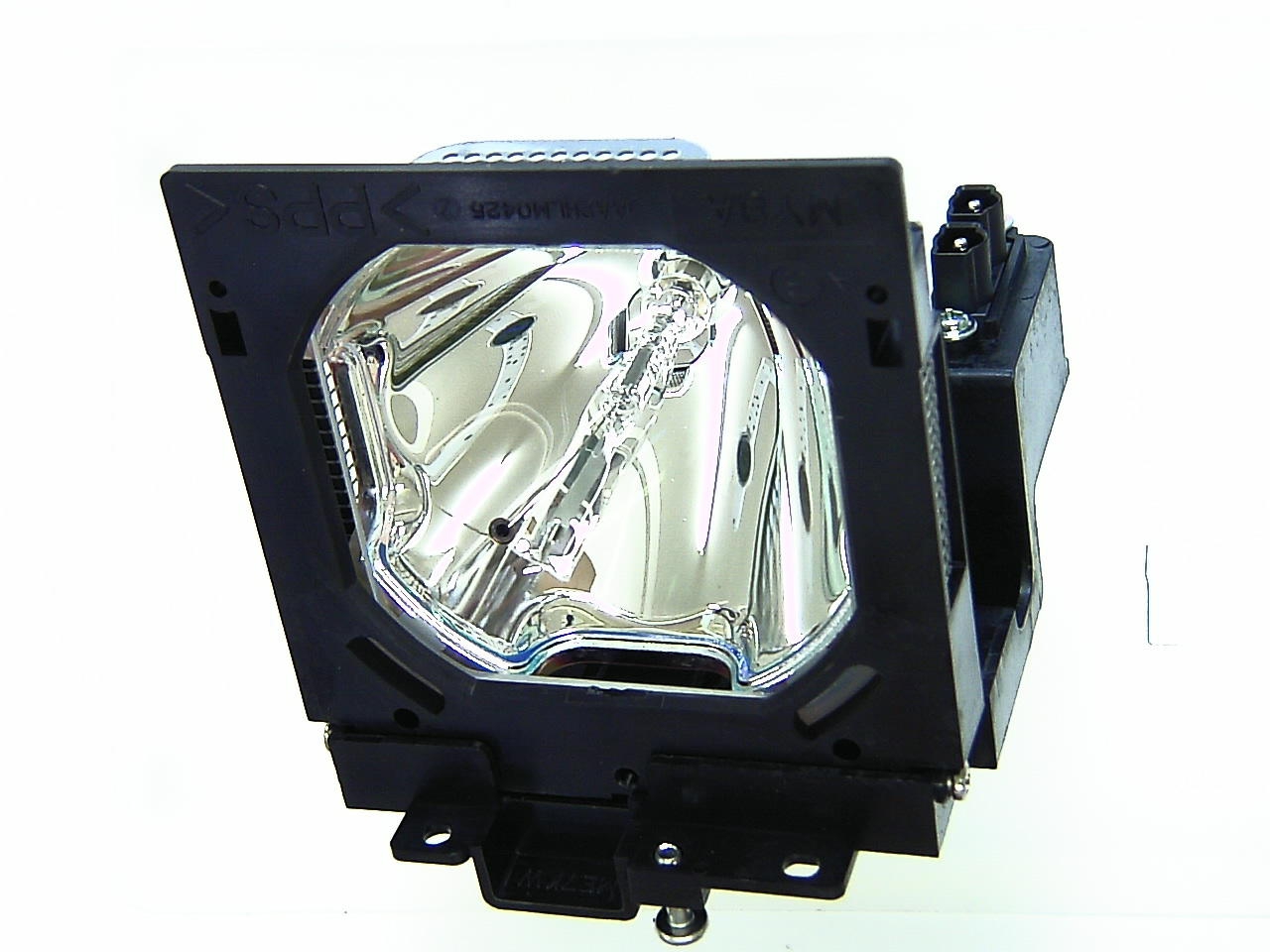

| Light Source |
2 x 200W UHP Lamp
Article Nr.: SP-LAMP-004
|
|
| Light Life |
1000 h. |
| Operating Costs |
-
|
|
424 - 546 cm
|
 |
|
Lux: |
1813 Lux |
|
Room light max.: |
363 Lux |
|
Candela pro m²: |
576 cd/m² |
|
Foot-Lamberts: |
168 fL |
|
 |
| 80 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,29 |
| Objective |
F=2,0-2,3 f=75,7-97,5 mm |
| Throw Ratio |
2,12-2,73:1 show |
| Audio |
2 x 3W |
| Connections |
• Input 1 (Modular): DVI-I, Audio in, Maus controlInput 2 (Modular): 5xBNC (RGBHV, RGBS, RGB,YPbPr, YCbCr), Audio in, Maus control;Input 3 (Modular): 2xBNC (Composite, Y, C video),S-video,Audio in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
900W |
| Size WxHxD |
439 x 227 x 604 mm (17,3"x8,9"x23,8") 60,19 L/dm³
|
| Operating Noise |
45dB |
|
| Weight |
20,50 kg / 45,19 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 50-120 Hz
Range max.: 230 MHz |
| Foot-Lamberts |
168 fL
/ max. 645 cm screen width |
| Candela m² |
576 cd/m² |
| Features |
 Lens shift Funktion
Freeze
Blank (Black screen button)
Gamma correction
Remote control with laser pointer und mouse control
Crestron®-Software compatible.
digital zoom
Faroudja De-interlacer
|
|
- |
In Comparison
The Proxima PRO AV 9550 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
57 |
Weight: |
|
92 |
| Contrast: |
|
1 |
dB: |
|
92 |
| Black level: |
|
71 |
Power cons.: |
|
88 |
| Picture Total Points: | 43 |
Projector Total Points: | 91 |
|
| Popularity Top 100 |
|
| Points: |
|
36 |
| Ranking: |
472 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| LENS-011 | 4.6-6:1 | 920-1200 m |
+/-40% |
|
Powered |
| LENS-004 | 3.4-4.5:1 | 680-900 m |
+/-40% |
|
Powered |
| LENS-018 | 2.6-3.5:1 | 520-700 m |
+/-50% |
|
Powered |
| LENS-003 | 1.8-2.9:1 | 360-580 m |
+/-50% |
|
Powered |
| LENS-005 | 2.07-2.67:1 | 414-534 m |
+/-50% |
|
Powered |
| LENS-001 | 1.2:1 | 240 m |
+/-40% |
|
No Zoom |
| LENS-002 | 6.9:1 | 1380 m |
+/-40% |
|
No Zoom |
| LENS-019 | 0.8:1 | 160 m |
+/-0.0% |
|
No Zoom |
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
