Brief Introduction
Beta 2.5 |
The Hustem MVP U320 LCD projector has 3200 Ansi lumens, a contrast of 400:1 and an XGA 1024 x 768 resolution. The horizontal and vertical keystone correction provides leeway when setting up. 493 cm image width, the projector will be able to illuminate well. However, if room light is available, the picture width should ideally not exceed 329 cm. On the market since 2006, the model is no longer offered by the manufacturer Hustem.
|
| Display Type |
3 x 0,79" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
3200 / 2600 im Eco Mode |
Screen |
1067 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
8,0000 min. Lumen |
2,688 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, EDTV HDTV 720p, 1080i, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |

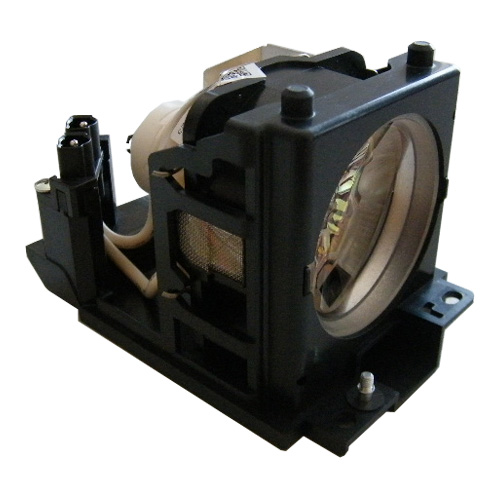

230W UHB Lamp
Article Nr.: DT00691
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
300 - 360 cm
|
 |
|
Lux: |
1067 Lux |
|
Room light max.: |
213 Lux |
|
Candela pro m²: |
339 cd/m² |
|
Foot-Lamberts: |
99 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,21 |
| Objective |
F=1,7-2,1 f=24,3-29,3 mm |
| Throw Ratio |
1,5-1,8:1 show |
| Audio |
2 x 1W |
| Connections |
2 x D-sub 15pin in 1 x out
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack in und out
USB
RS232C Din 9pin
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
370W / 10W standby |
| Size WxHxD |
336 x 95 x 265 mm (13,2"x3,7"x10,4") 8,46 L/dm³
|
| Operating Noise |
38 / 33 dB in Eco Mode |
Key: 140 cm |
Key: 26 cm |
| Key: 26 cm |
| |
|
|
| Weight |
3,90 kg / 8,6 lbs. |
| Keystone |
Vert.: +/-15°
Hori.: +/-5°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-91 kHz
V-sync: 50-120 Hz
Range max.: 130 MHz |
| Foot-Lamberts |
99 fL
/ max. 493 cm screen width |
| Candela m² |
339 cd/m² |
| Features |
 Freeze
User logo
Eco Mode
Picture-in-Picture
4x digital zoom
De-interlacer with 3:2 pull down
|
|
- |
In Comparison
The Hustem MVP U320 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
38 |
Weight: |
|
81 |
| Contrast: |
|
1 |
dB: |
|
28 |
| Black level: |
|
70 |
Power cons.: |
|
96 |
| Picture Total Points: | 36 |
Projector Total Points: | 68 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5641 (From: 7662) |
|
|
|
|
|
| Status |
2006 Discontinued (EOL) // Last update of the data: 2023-08-04
|
