Brief Introduction
Beta 2.5 |
The MVP H40 LCD has 4000 Ansi lumens, a contrast of 800:1 and an XGA 1024 x 768 resolution. Thanks to the brightness of 4000 Ansi lumens, a picture width of 551 cm is possible. The projector will also create slightly brighter rooms with a smaller picture width (we recommend max. 367 cm). The projector is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,99" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
4000 |
Screen |
1333 Lux (200 cm Screen width) |
| Contrast |
800:1 full on/off |
800:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,673 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
NTSC/PAL(-BGDHI), SECAM,
PAL M, N, NTSC4.43, PAL60
525i(480i), 525p(480p), 625i(575i),
|
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

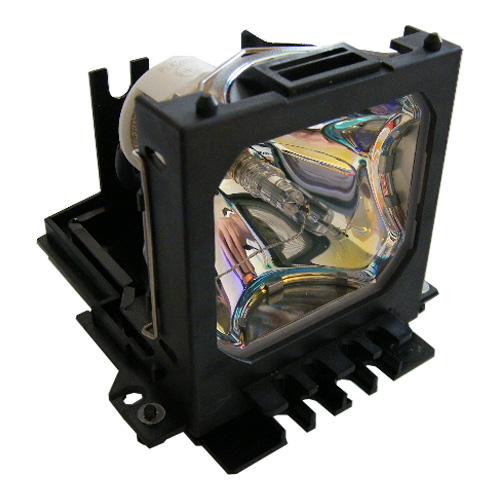

310W UHB Lamp
Article Nr.: DT00601
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1333 Lux |
|
Room light max.: |
267 Lux |
|
Candela pro m²: |
425 cd/m² |
|
Foot-Lamberts: |
124 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,5 |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
- |
| Connections |
D-sub 15p in und out
5 x BNC RGBHV in
Cinch Stereo in
Cinch Video in
S-Video in
Mini Jack in
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
470W |
| Size WxHxD |
420 x 160 x 318 mm (16,5"x6,3"x12,5") 21,37 L/dm³
|
| Operating Noise |
- |
|
| Weight |
6,90 kg / 15,21 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
124 fL
/ max. 551 cm screen width |
| Candela m² |
425 cd/m² |
| Features |
- |
|
- |
In Comparison
The Hustem MVP H40 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
67 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
81 |
Power cons.: |
|
94 |
| Picture Total Points: | 44 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
3 |
| Ranking: |
7290 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
