Brief Introduction
Beta 2.5 |
A brief introduction to the Digital Projection TITAN 1080p ultra Contrast. The stationary DLP projector has an HDTV 1920 x 1080 resolution and a contrast of 5000:1. The built-in lens shift function provides freedom when setting up. The projector can illuminate a screen width of up to 718 cm thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. The projector can also play 1080P and 3D without any problems. The projector was launched in 2008 and is no longer sold by the manufacturer.
|
| Display Type |
3 x 0,95" DC DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
5000:1 full on/off |
5000:1 full on/off
|
| Black Level |
1,0000 min. Lumen |
0,445 min. Lumen |
| Lens shift |
Vert.: +/-50% Hori.: +25% -17%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

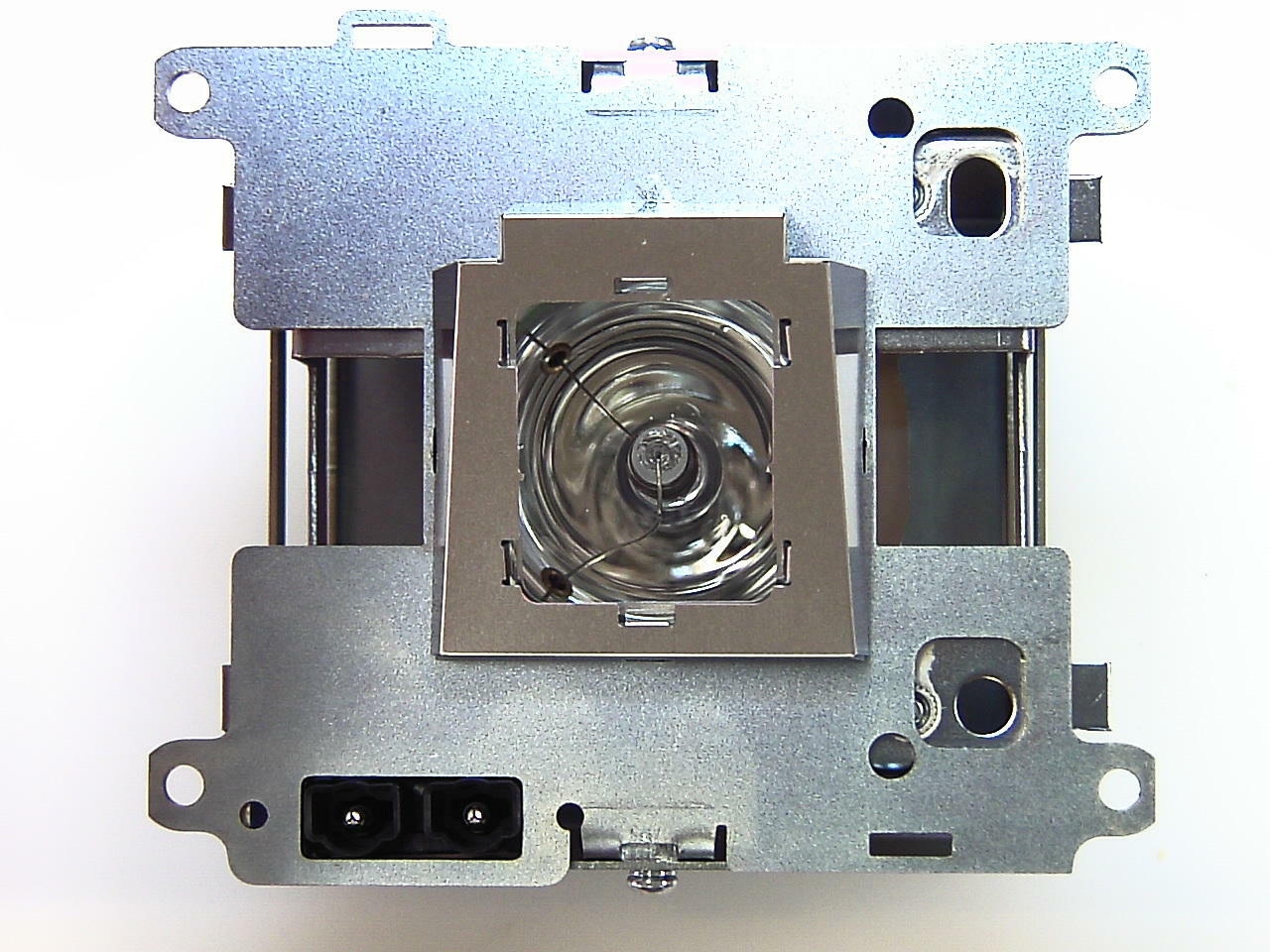

2 x 350W Lamp
Article Nr.: 108-772
|
|
| Light Life |
2000 h. 4000 h. in Singel Lamp Mode |
| Operating Costs |
|
|
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |
| Connections |
DVI in
SDI in
D-sub 15pin in
5 x BNC RGBHV in
4 x BNC YUV in
S-Video in
RJ45
RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
950W |
| Size WxHxD |
547 x 253,5 x 661,23 mm (21,5"x10"x26") 91,48 L/dm³
|
| Operating Noise |
45dB |
Shift: 56 cm
|
Shift: 34 cm
|
|
Shift: 50 cm
|
| |
|
|
| Weight |
31,00 kg / 68,34 lbs. |
| Keystone |
- |
| Illumination |
87% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 24-85 Hz
|
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Gamma correction
Wi-Fi network compatible.
Lan network compatible.
De-interlacer with 3:2 2:2 pull down.
|
|
- |
In Comparison
The Digital Projection TITAN 1080p ultra Contrast compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
92 |
| Black level: |
|
97 |
Power cons.: |
|
87 |
| Picture Total Points: | 49 |
Projector Total Points: | 88 |
|
| Popularity Top 100 |
|
| Points: |
|
24 |
| Ranking: |
1056 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2025-03-03
|
| Data |
 Product Sheet english
Product Sheet english HC
|
Digital Projection Website
