Brief Introduction
Beta 2.5 |

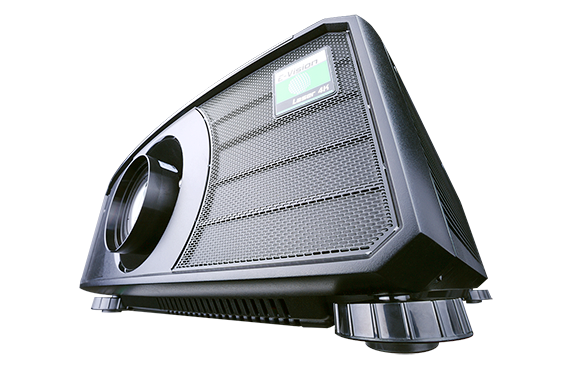

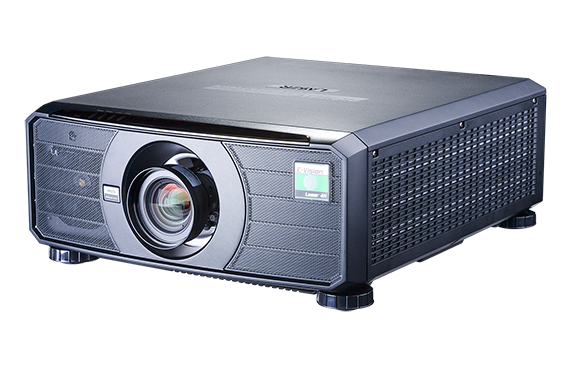

Manufacturer Digital Projection offers with the E-Vision 13000 an E-Cinema DLP laser projector with WUXGA 1920 x 1200 resolution and a contrast of 10000:1. It is a laser projector with 20000 hours of light life, which converts to over 13.7 years at 4 hours per day. The projector can illuminate a picture width of up to 1090 cm thanks to the 11500 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 727 cm is recommended. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. The model is also Full HD 1080P and 3D compatible. The model was built by Digital Projection in 2018 and is no longer current, but is still one of the very popular projectors.
|
| Display Type |
1 x 0,67" Dark DMD Chip
WUXGA 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
11500 |
Screen |
5111 Lux (200 cm Screen width) |
| Contrast |
10000:1 |
10000:1
|
| Black Level |
1,1500 min. Lumen |
0,511 min. Lumen |
| Offset |
-
|
| Resolution |
WUXGA 1920 x 1200
2.304.000 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p |
| 3D Compatibility |
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) |
| Application |
E-Cinema | Digital Cinema (D-Cinema) in the movie theater.
Very large screen width and rooms with plenty of light and shaded daylight. |
| Light Source |
Laser
|
|
| Light Life |
20000 h. |
| Operating Costs |
0,00 € Laser
|
|
|
 |
|
Lux: |
5111 Lux |
|
Room light max.: |
1022 Lux |
|
Candela pro m²: |
1627 cd/m² |
|
Foot-Lamberts: |
475 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
- |
| Connections |
2 x HDMI in
DVI in
Display Port
3G SDI in und out
3D Sync in und out
D-sub 15pin in und out
Component Video in
RS232C Din 9 pin in
RJ45 in
HDBaseT
Wired Remote |
| Ceiling Mounting |
Yes, is possible. |
| Power |
- |
| Size WxHxD |
590 x 218 x 500 mm (23,2"x8,6"x19,7") 64,31 L/dm³
|
| Operating Noise |
- |
|
| Weight |
31,00 kg / 68,34 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
- |
| Foot-Lamberts |
475 fL
/ max. 1090 cm screen width |
| Candela m² |
1627 cd/m² |
| Features |
 Real Full HD 3D
Full HD 1080P compatible
Eco Mode
Kensington Slot
24/7 continuous operation capable
Edge Blending
Picture-in-Picture
PJLink™
Lan network compatible.
Crestron®-Software compatible.
AMX
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Digital Projection E-Vision 13000 compared to others not current "E-Cinema" projectors. |
| Ansi-Lumen: |
|
12 |
Weight: |
|
100 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
99 |
Power cons.: |
|
0 |
| Picture Total Points: | 37 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
37 |
| Ranking: |
64 (From: 139) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 112-504 | 5.31-8.26:1 | 1062-1652 m |
|
|
Powered |
| 112-503 | 3.58-5.38:1 | 716-1076 m |
|
|
Powered |
| 112-501 | 1.73-2.27:1 | 346-454 m |
|
|
Powered |
| 112-500 | 1.25-1.79:1 | 250-358 m |
|
|
Powered |
| 117-341 | 0.38:1 | 76 m |
|
|
No Zoom |
| 112-499 | 0.76:1 | 152 m |
|
|
No Zoom |
| 115-339 | 0.75:1 | 150 m |
|
|
No Zoom |
| 112-502 | 2.22:1 | 444 m |
|
|
No Zoom |
|
| Status |
2018 Discontinued (EOL) // Last update of the data: 2024-10-02
Created: 2018-10-11 19:04:33
|
| Data |
 Product Sheet english
Product Sheet english HC
User Manual english (28.61 MB)

|
Digital Projection Website
