| Customer review |
|
 |
|
Brief Introduction
Beta 2.5 |

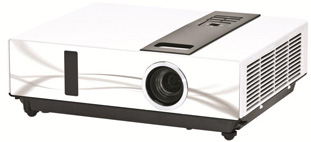

The standard portable CL ACC 18030N LCD has 3000 Ansi lumens, a contrast of 500:1 and an XGA 1024 x 768 resolution. Due to the brightness of 3000 Ansi lumens, a picture width of 477 cm is possible. In room light, the picture should be max. 318 cm wide. The model built in 2012 is no longer offered by Claxan.
|
| Display Type |
3 x LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
3000 |
Screen |
1000 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
6,0000 min. Lumen |
2,012 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
220W Lamp
Article Nr.: 449372
|
|
| Light Life |
2000 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1000 Lux |
|
Room light max.: |
200 Lux |
|
Candela pro m²: |
319 cd/m² |
|
Foot-Lamberts: |
93 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,6-1,88 f=18,53-22,18 mm |
| Throw Ratio |
- |
| Audio |
1 x 8W |
| Connections |
DVI in
D-sub 15 pin in und out
YUV in
S-Video in
Cinch Video in
RS232C
RJ45 in
Mini Jack Audio in und out
USB in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
310W |
| Size WxHxD |
325 x 97 x 260 mm (12,8"x3,8"x10,2") 8,2 L/dm³
|
| Operating Noise |
33 / 30 dB in Eco Mode |
|
| Weight |
2,90 kg / 6,39 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-69 kHz
V-sync: 43-85 Hz
|
| Foot-Lamberts |
93 fL
/ max. 477 cm screen width |
| Candela m² |
319 cd/m² |
| Features |
 Eco Mode
Kensington Slot
Lan network compatible.
|
|
- |
In Comparison
The Claxan CL ACC 18030N compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
36 |
Weight: |
|
86 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
78 |
Power cons.: |
|
97 |
| Picture Total Points: | 38 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
6534 (From: 7662) |
|
|
|
|
|
| Status |
2012 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
