The Claxan CL ACC 17020 LCD projector has 2000 Ansi lumens, a contrast of 400:1 and an XGA 1024 x 768 resolution. The projector can illuminate a picture width of up to 389 cm thanks to the 2000 Ansi lumens. In room light, however, the image width should ideally be less than 259 cm. The model was built by Claxan in 2005 and is no longer current.
|
| Display Type |
3 x 0,7" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,68 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |

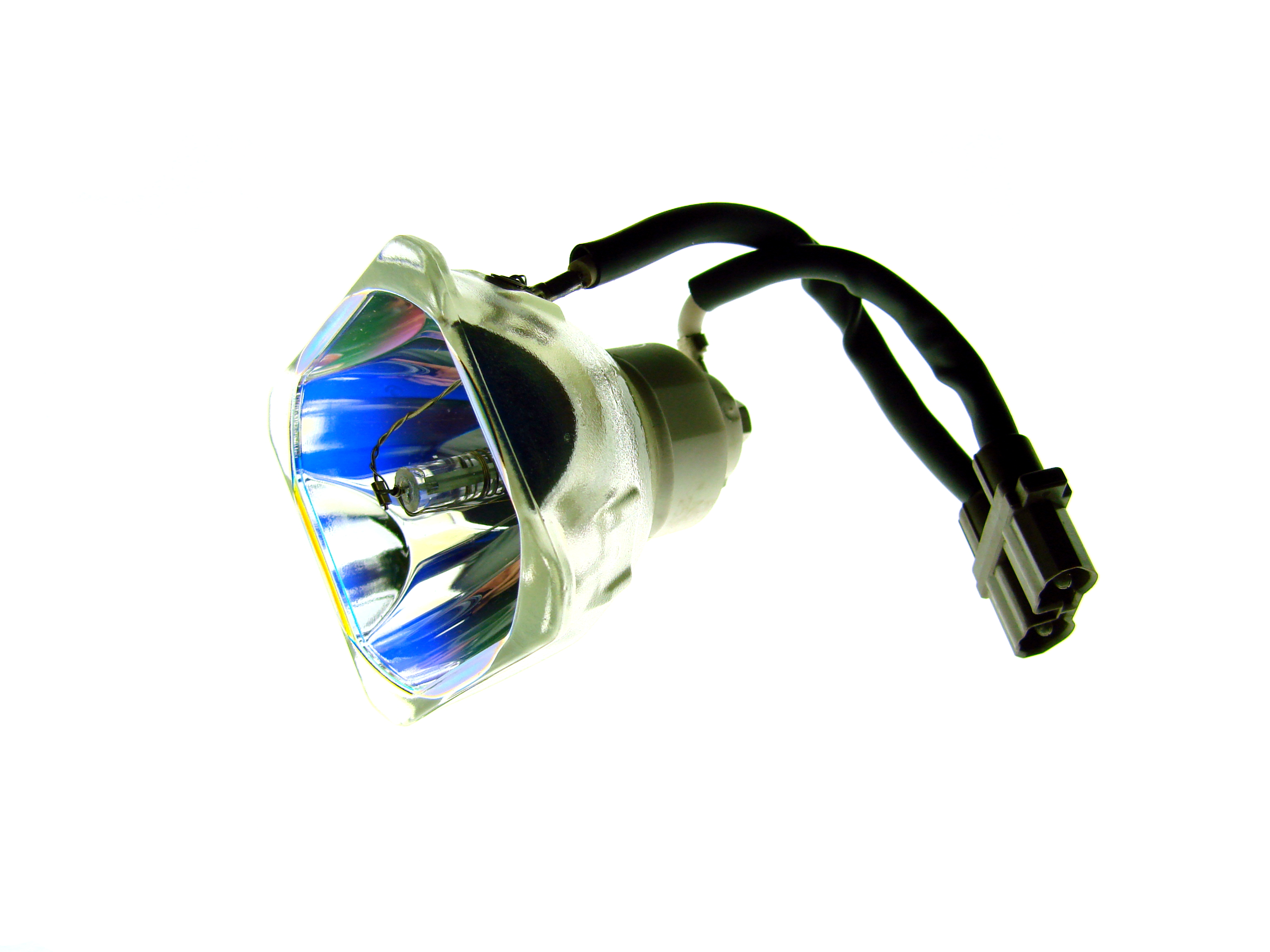

| Light Source |
-
Article Nr.: LMPf16605
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
372 - 444 cm
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,8-2,1 f=26,5-31,5 mm |
| Throw Ratio |
1,86-2,22:1 show |
| Audio |
2 x 1W |

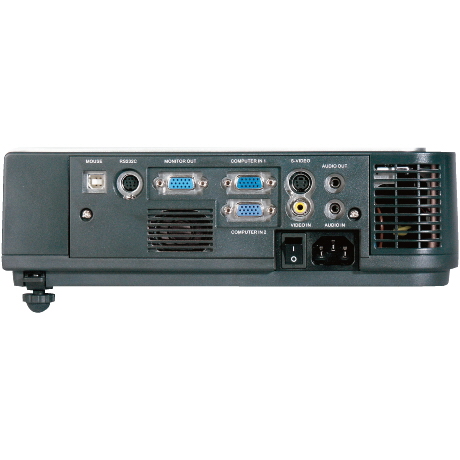

| Connections |
D-sub 15 in und out
S-Video in
Cinch Video in
RS232C
USB
Mini Jack in und out
 |
| Ceiling Mounting |
- |
| Power |
- |
| Size WxHxD |
310 x 96 x 270 mm (12,2"x3,8"x10,6") 8,04 L/dm³
|
| Operating Noise |
33dB |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-30°
|
| Illumination |
- |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 43-120 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Eco Mode
|
|
- |
In Comparison
The Claxan CL ACC 17020 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
41 |
| Black level: |
|
81 |
Power cons.: |
|
0 |
| Picture Total Points: | 35 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
2 |
| Ranking: |
7548 (From: 7662) |
|
|
|
|
|
| Status |
2005 Discontinued (EOL) // Last update of the data: 2023-08-04
|
