Brief Introduction
Beta 2.5 |

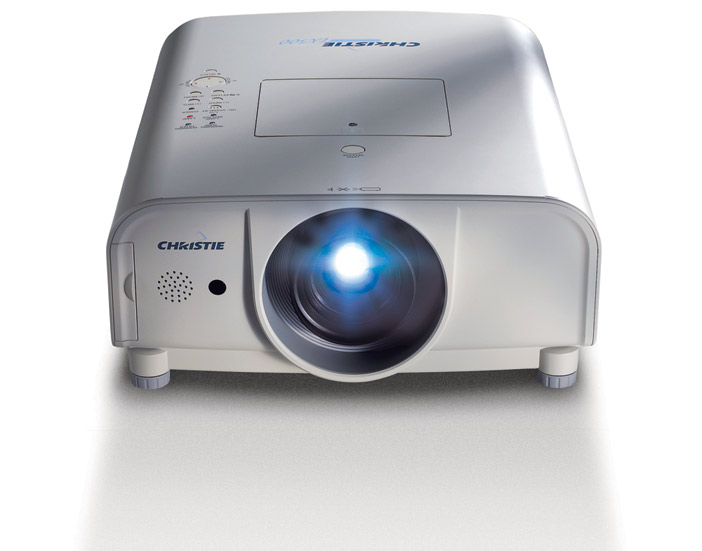

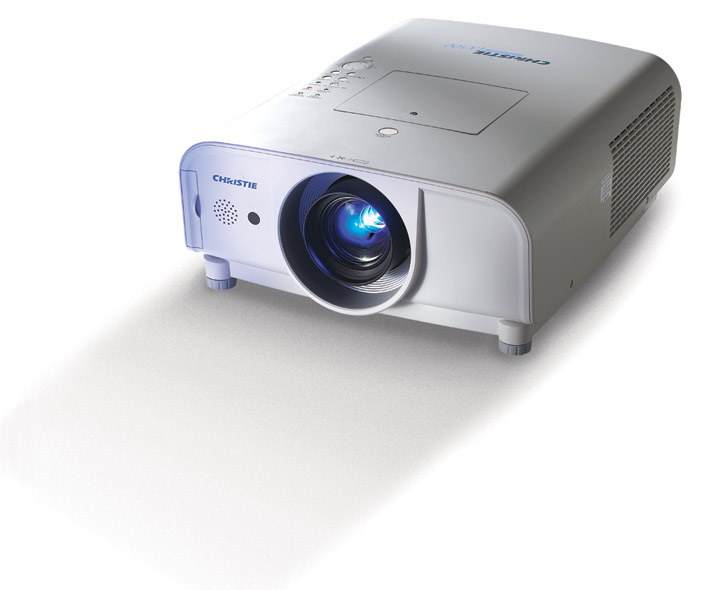

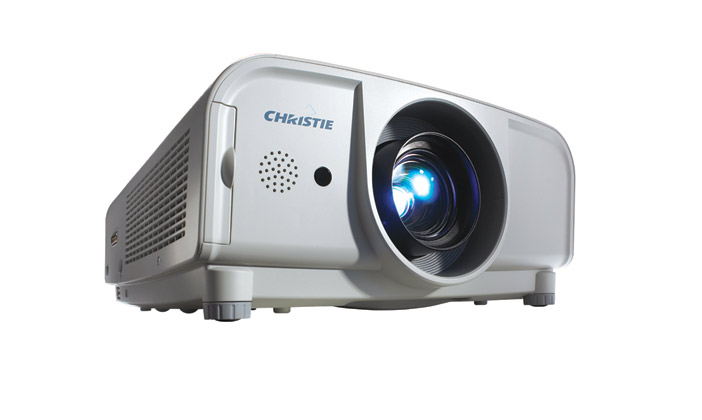

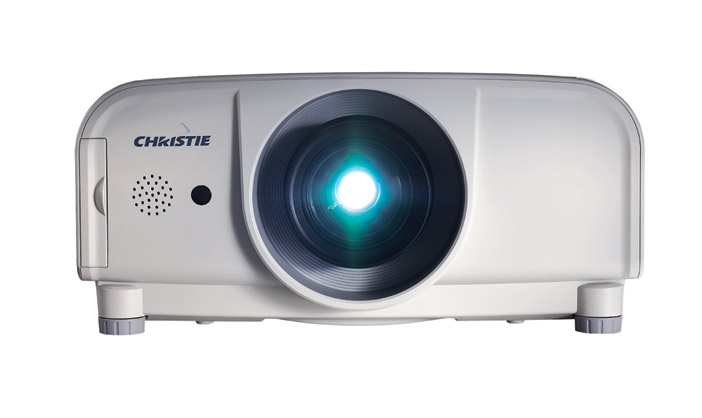

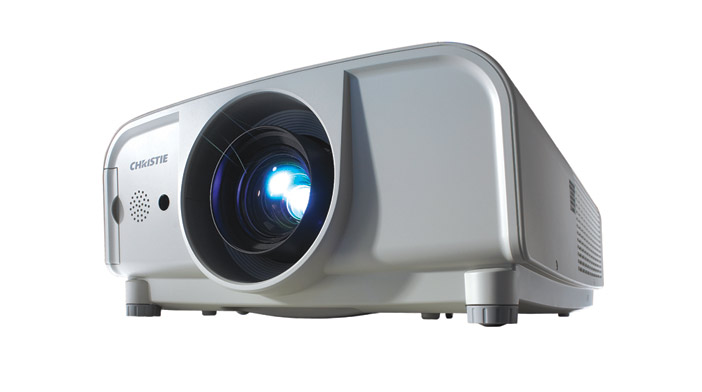

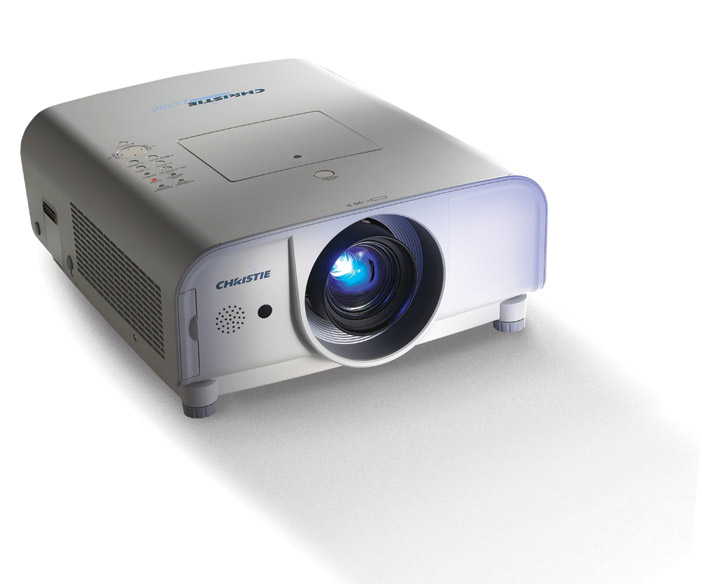

The Christie LX500 Station LCD projector has 5000 Ansi lumens, a contrast of 1000:1 and an XGA 1024 x 768 resolution. Includes a lens shift and keystone correction function, which provides freedom during installation. The projector can illuminate images up to 616 cm wide thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 411 cm is recommended. This model is no longer offered by Christie.
|
| Display Type |
3 x 0,99" LCD TFT Panel mit MLA
XGA 4/3 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
5000 |
Screen |
1667 Lux (200 cm Screen width) |
| Contrast |
1000:1 full on/off |
1000:1 full on/off
|
| Black Level |
5,0000 min. Lumen |
1,672 min. Lumen |
| Lens shift |
Vert.: +50% -0% Hori.: +/-15% motorisiert
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |

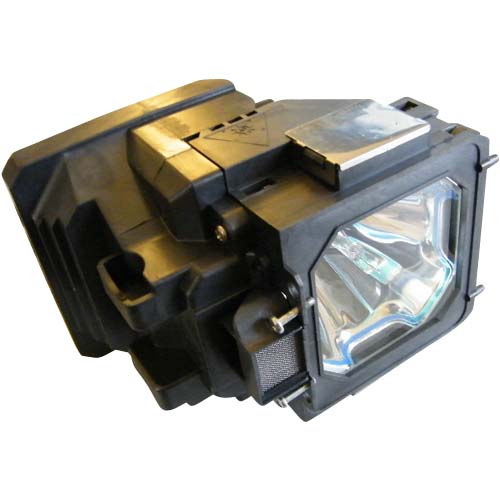

| Light Source |
330W NSH Lamp
Article Nr.: 003-120377-01
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
1667 Lux |
|
Room light max.: |
333 Lux |
|
Candela pro m²: |
531 cd/m² |
|
Foot-Lamberts: |
155 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual |
| Objective |
|
| Throw Ratio |
optional |
| Audio |
1W Stereo |

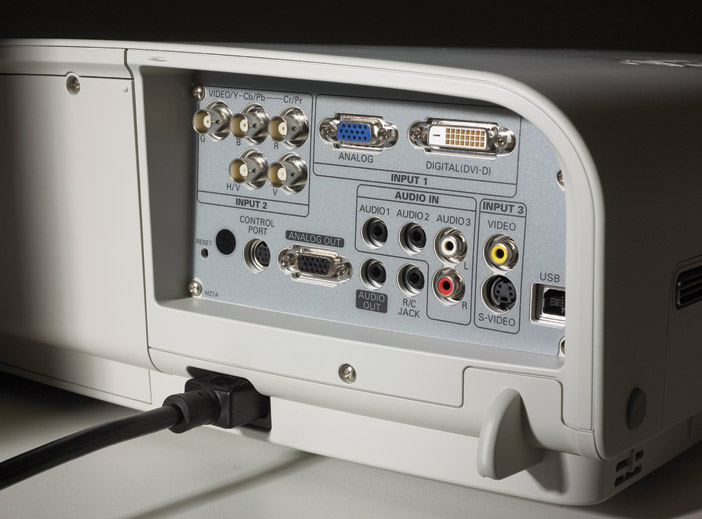

| Connections |
DVI-D mit HDCP in
D-sub 15 pin in und out
5 x BNC RGBHV in
S-Video in
Cinch Video in
RS232C Din 8pin in
USB Typ B
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
430W |
| Size WxHxD |
348 x 164 x 444 mm (13,7"x6,5"x17,5") 25,34 L/dm³
|
| Operating Noise |
35 / 31 dB in Eco Mode |
Shift: 75 cm
|
Shift: 30 cm
|
|
Shift: 30 cm
|
| |
|
|
| Weight |
8,70 kg / 19,18 lbs. |
| Keystone |
Vert. +40°-20°
Hori.: +/-10°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
155 fL
/ max. 616 cm screen width |
| Candela m² |
531 cd/m² |
| Features |
 Lens shift Funktion motorisiert
Freeze
User logo
Eco Mode
Kensington Slot
Gamma correction
Password protection
Remote control with laser pointer
Optional Wi-Fi network compatible.
Optional LAN network compatible.
Digital zoom.
Automatic display of air pollution.
Vertical operation possible (up to 90°).
De-interlacer with 3:2 2:2 pull down.
|
|
- |
In Comparison
The Christie LX500 compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
49 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
95 |
| Black level: |
|
85 |
Power cons.: |
|
95 |
| Picture Total Points: | 45 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
22 |
| Ranking: |
1162 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
|
| Status |
2008 Discontinued (EOL) // Last update of the data: 2023-08-04
|
