Brief Introduction
Beta 2.5 |

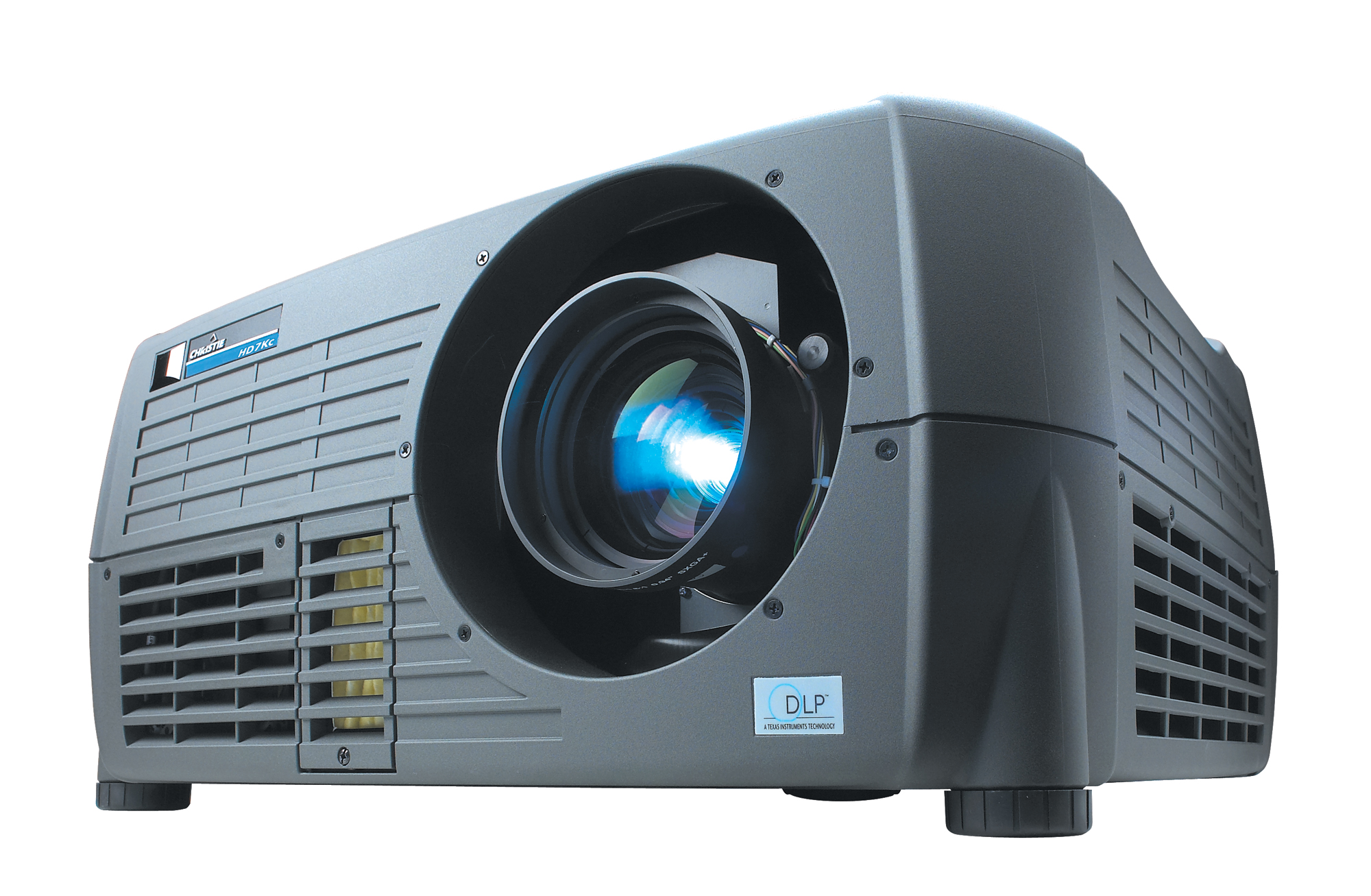

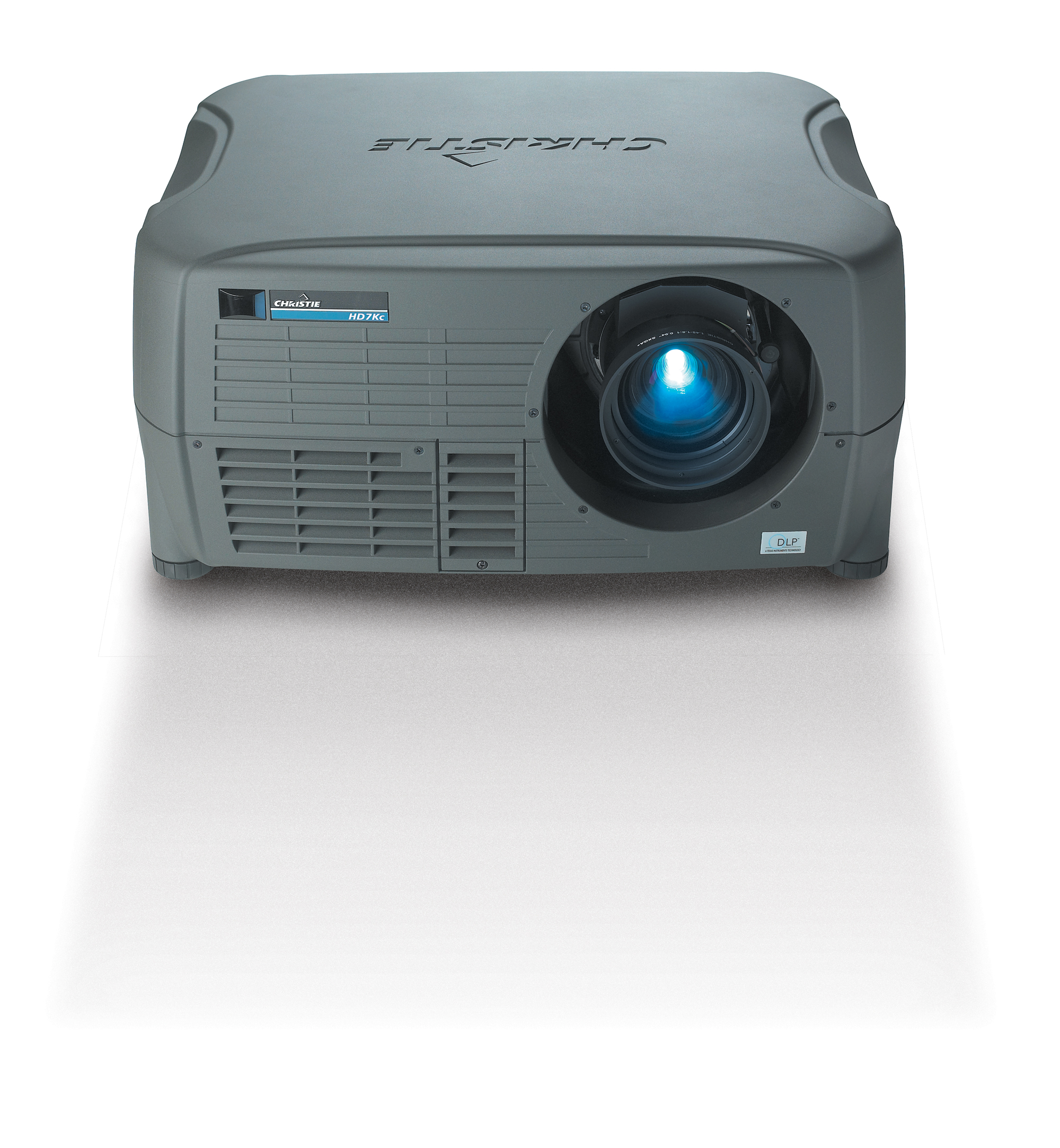

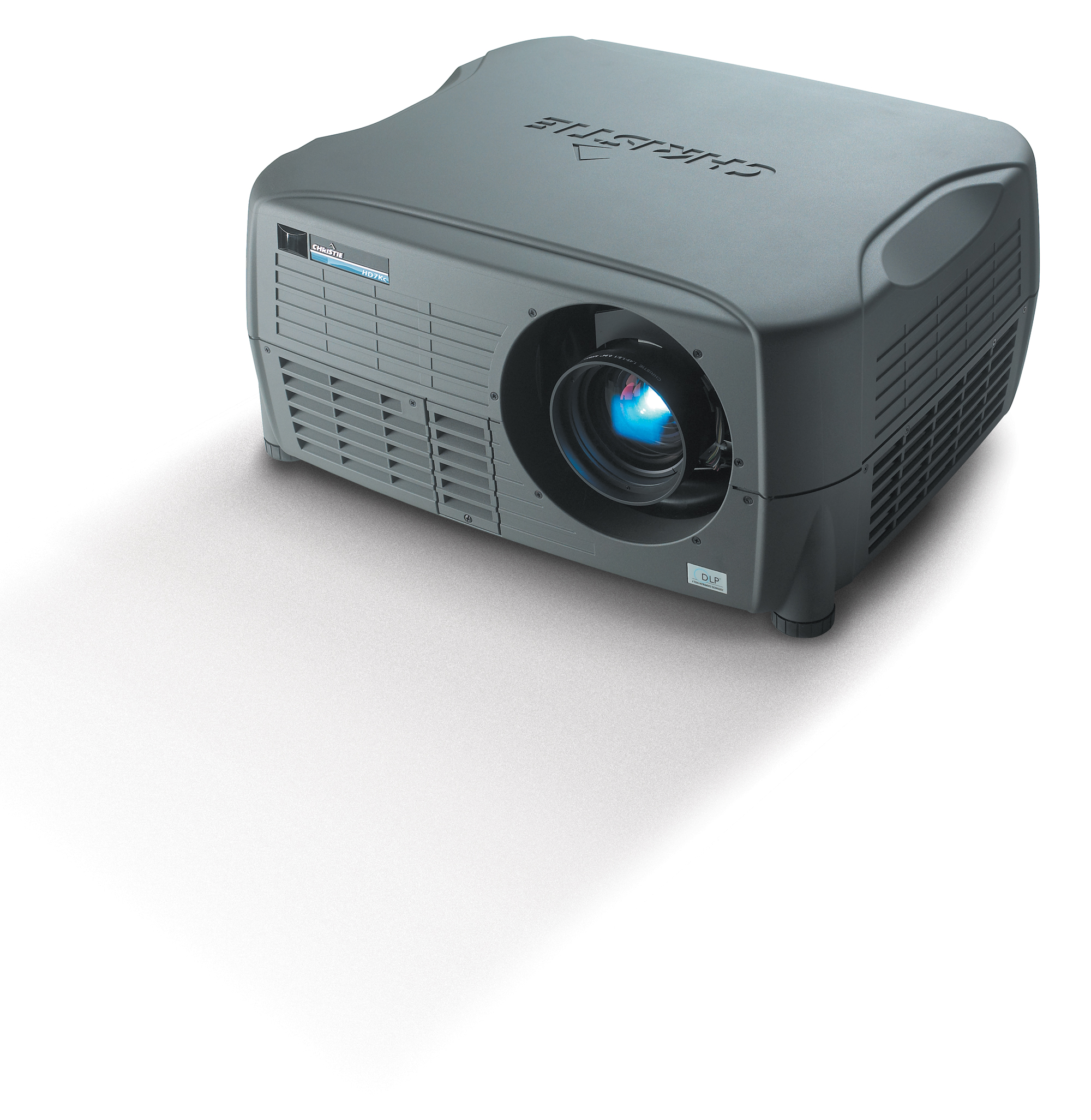

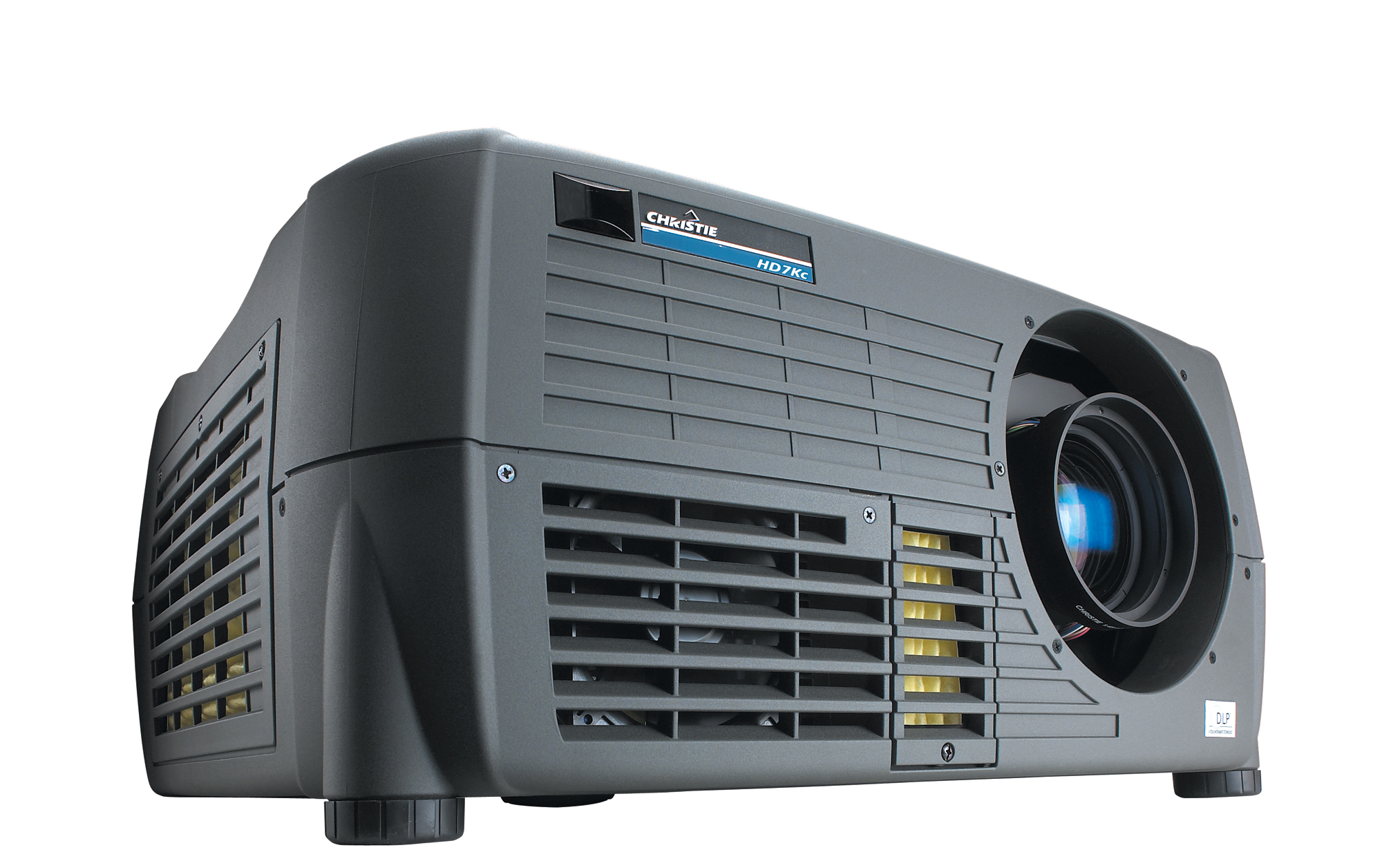

A brief introduction to the Christie HD7Kc. The DLP projector has an HDTV 1920 x 1080 resolution and a contrast of 1600 - 2000:1. The projector also offers a lens shift function, which makes image adjustment childs play. An image width of up to 819 cm is possible, if the image width is smaller (we recommend max. 546 cm), rooms with residual light are also no problem. If the image is still too small, the integrated edge blending software can help to project a large image with additional projectors. It is also Full HD 1080P compatible. This model is no longer offered by Christie. It should also be noted that, unfortunately, there are no more replacement lamps for the projector, neither original nor replica.
|
| Display Type |
3 x 0,95" DC3 DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
6500 |
Screen |
2889 Lux (200 cm Screen width) |
| Contrast |
1600 - 2000:1 full on/off |
1600 - 2000:1 full on/off
|
| Black Level |
4,0625 min. Lumen |
1,808 min. Lumen |
| Lens shift |
Vert.: +/-59,5% Hori.: +/-21%
|
| Resolution |
HDTV 1920 x 1080
2.073.600 Pixel
QXGA 2048 x 1536 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight. |

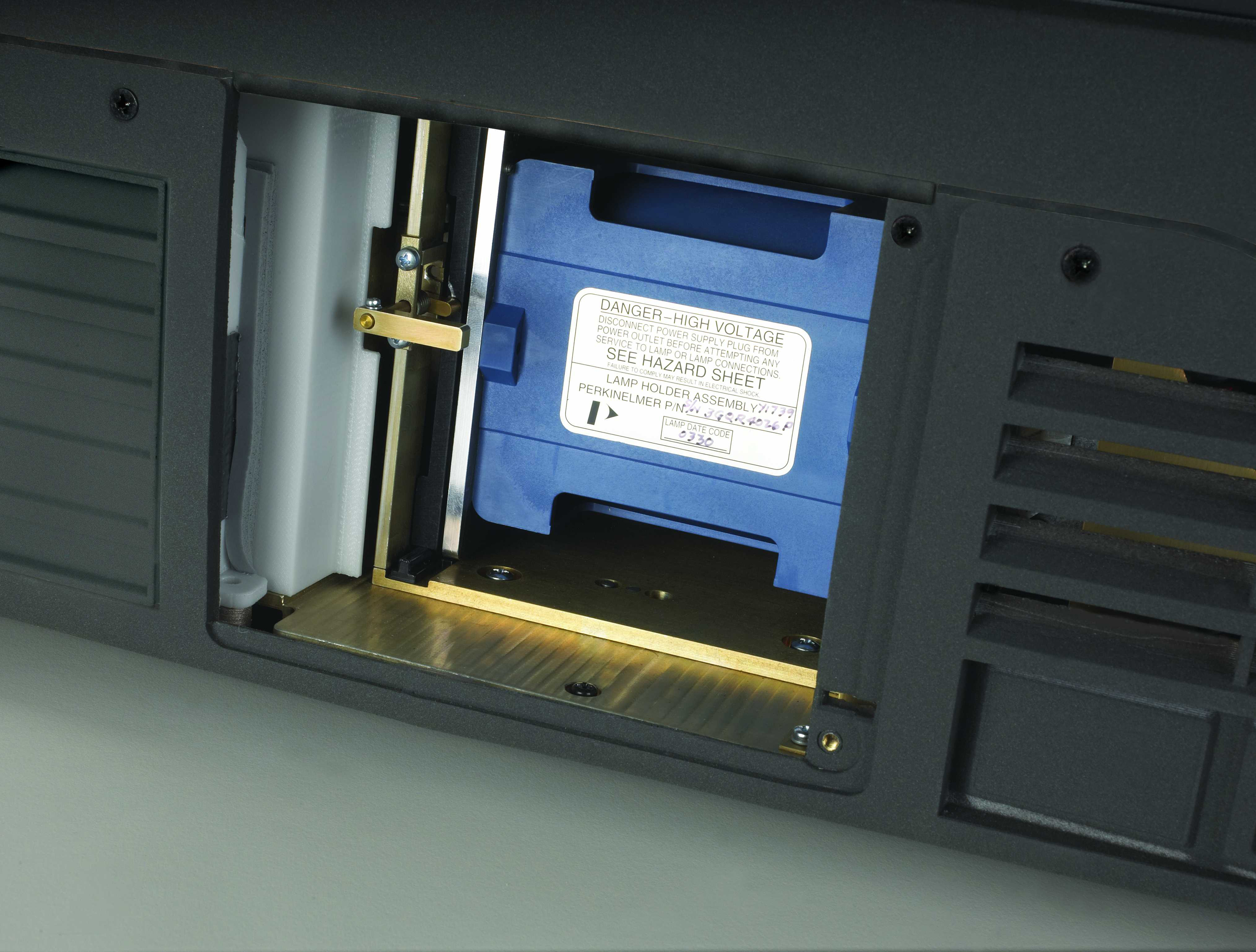

| Light Source |
1200W Xenon Lamp
Article Nr.: 003-120116-01 / 03-000834-01P
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
2889 Lux |
|
Room light max.: |
578 Lux |
|
Candela pro m²: |
918 cd/m² |
|
Foot-Lamberts: |
268 fL |
|
 |
| 67 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered |

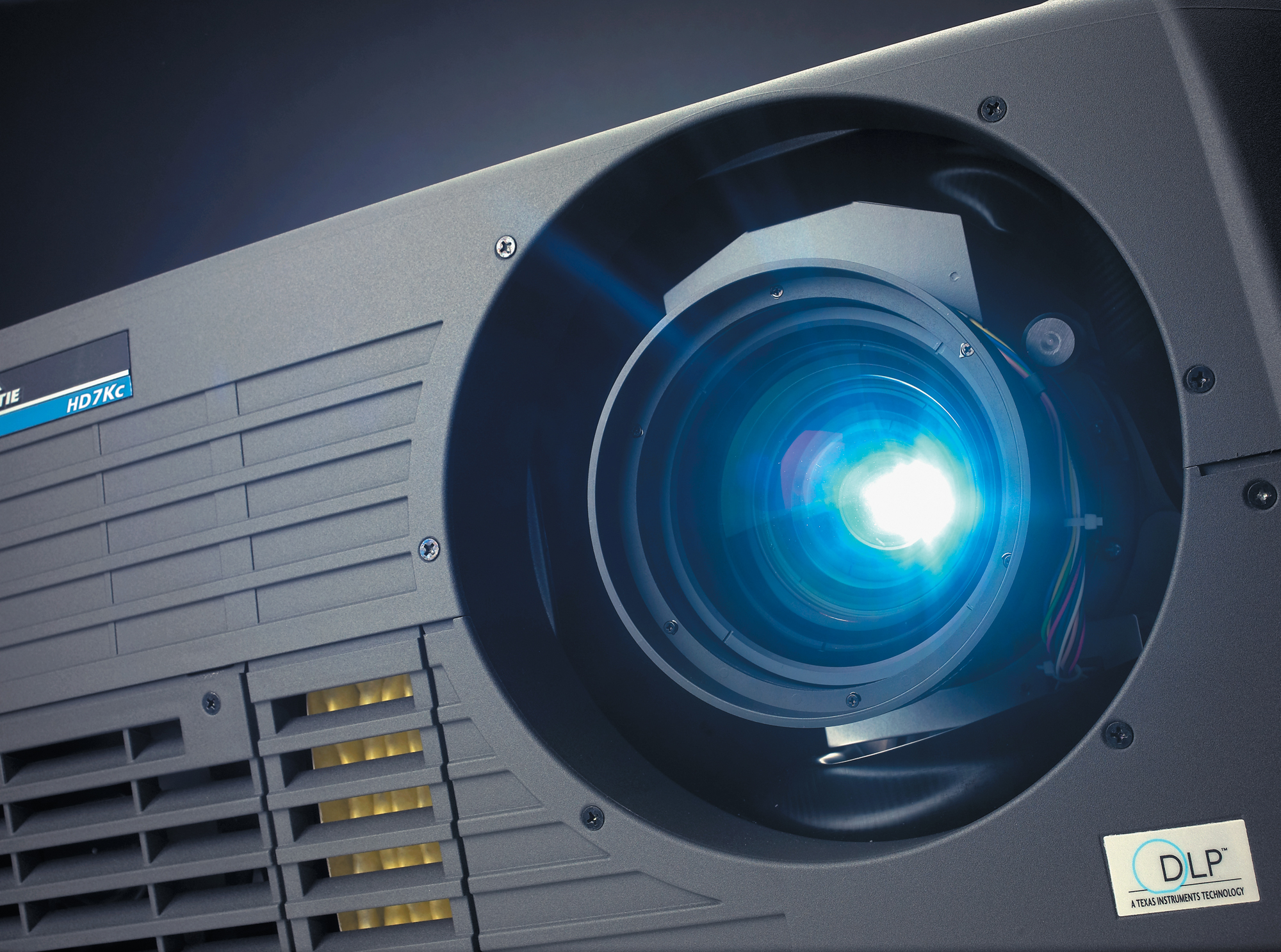

| Objective |
|
| Throw Ratio |
optional |
| Audio |
Nein |

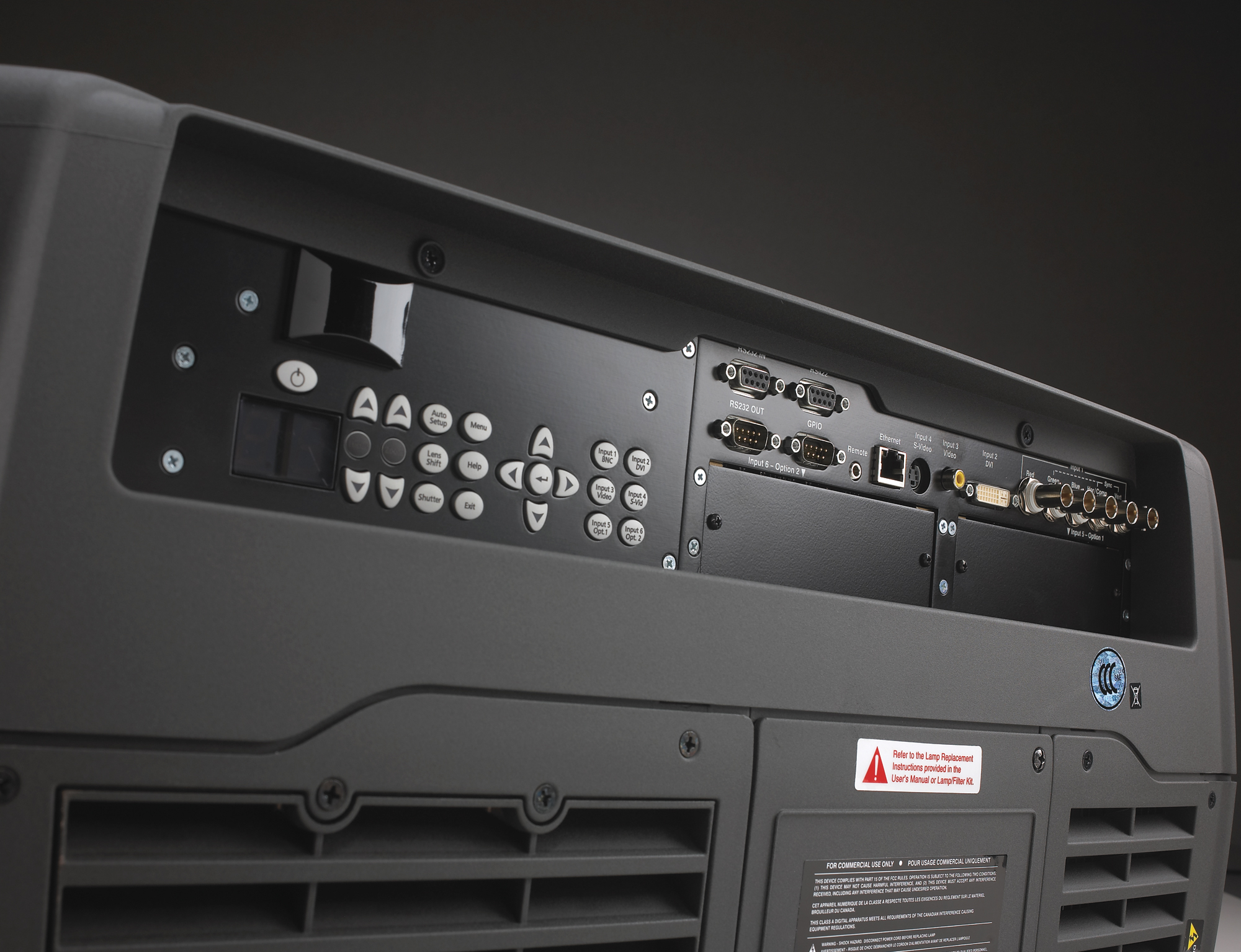

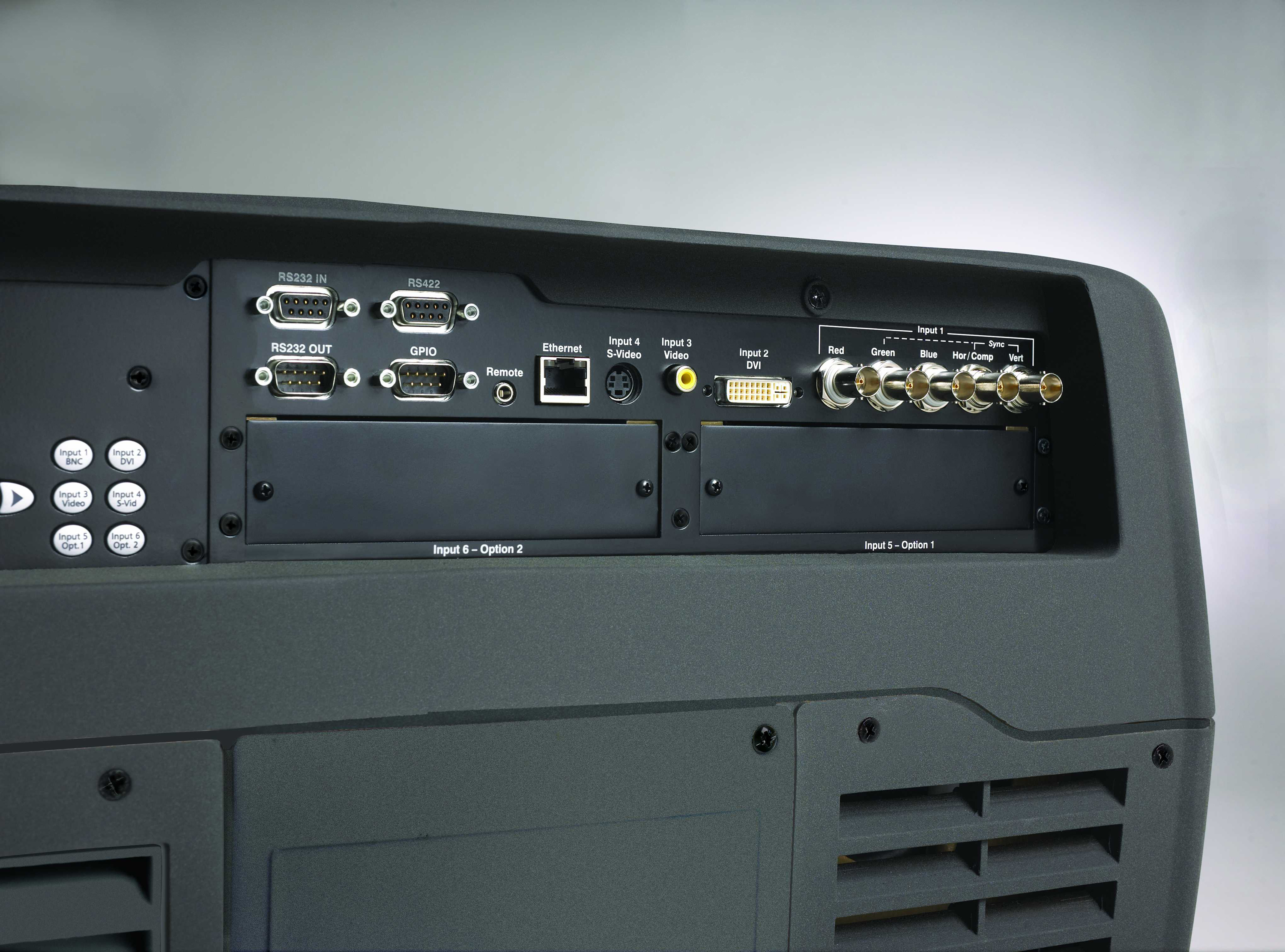

| Connections |
DVI-I mit HDCP in
5 x BNC RGBHV in
S-Video in
Cinch Video in
RS232C
RS422
RJ45
Weitere Anschlüsse optional.
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
2000W |
| Size WxHxD |
660 x 313 x 566 mm (26"x12,3"x22,3") 116,92 L/dm³
|
| Operating Noise |
- |
Shift: 66 cm
|
Shift: 42 cm
|
|
Shift: 42 cm
|
| |
|
|
| Weight |
34,00 kg / 74,96 lbs. |
| Keystone |
- |
| Illumination |
90% |
| Frequenz |
H-sync: 15-120 kHz
V-sync: 23,97-150 Hz
Range max.: 210 MHz |
| Foot-Lamberts |
268 fL
/ max. 819 cm screen width |
| Candela m² |
918 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Freeze
Gamma correction
Warping
Edge Blending
Picture-in-Picture
Password protection
Remote control with laser pointer
Control via web browser
Lan network compatible.
Optional image warping
|
|
- |
In Comparison
The Christie HD7Kc compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
64 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
88 |
Power cons.: |
|
71 |
| Picture Total Points: | 51 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
34 |
| Ranking: |
544 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| 4.1-6.9:1 | 4.22-7.02:1 | 844-1404 m |
+/-59.5% |
+/-21% |
Powered |
| 2.6-4.1:1 | 2.6-4.23:1 | 520-846 m |
+/-59.5% |
+/-21% |
Powered |
| 1.8-2.6:1 | 1.85-2.55:1 | 370-510 m |
+/-59.5% |
+/-21% |
Powered |
| 1.4-1.8:1 | 1.41-1.9:1 | 282-380 m |
+/-59.5% |
+/-21% |
Powered |
| 0.71:1 | 0.73:1 | 146 m |
+/-23.5% |
+/-9.5% |
No Zoom |
| 1.2:1 | 1.15:1 | 230 m |
+/-59.5% |
+/-21% |
No Zoom |
|
| Status |
2007 Discontinued (EOL) // Last update of the data: 2025-03-03
|
