Brief Introduction
Beta 2.5 |
The XEED WUX500 Medical LCOS projector from Canon has 5000 Ansi lumens, a contrast of 2000:1 and a resolution. The lamp in the projector is specified with a lamp life of 4000 hours, which converts to over 5.5 years at 2 hours per day. The integrated media player can play files directly. Includes a lens shift and keystone correction function, which frees up space during installation. The projector can illuminate images up to 718 cm wide thanks to its 5000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 479 cm. If the image width is not sufficient, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Playing 1080P is also no problem for the projector. The model was built by Canon in 2014 and is no longer current.
|
| Display Type |
3 x 0,71" Lcos Chip
WUXGA 16/9 Liquid Crystal on Silicon (LCOS)
|
| Ansi-Lumen |
Projector |
5000 / 3800 im Eco Mode |
Screen |
2222 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
2,5000 min. Lumen |
1,112 min. Lumen |
| Lens shift |
Vert.: +60% -0% Hori.: +/-10%
|
| Resolution |
WUXGA 1920 x 12002.304.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Media player formats: JPEG |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |

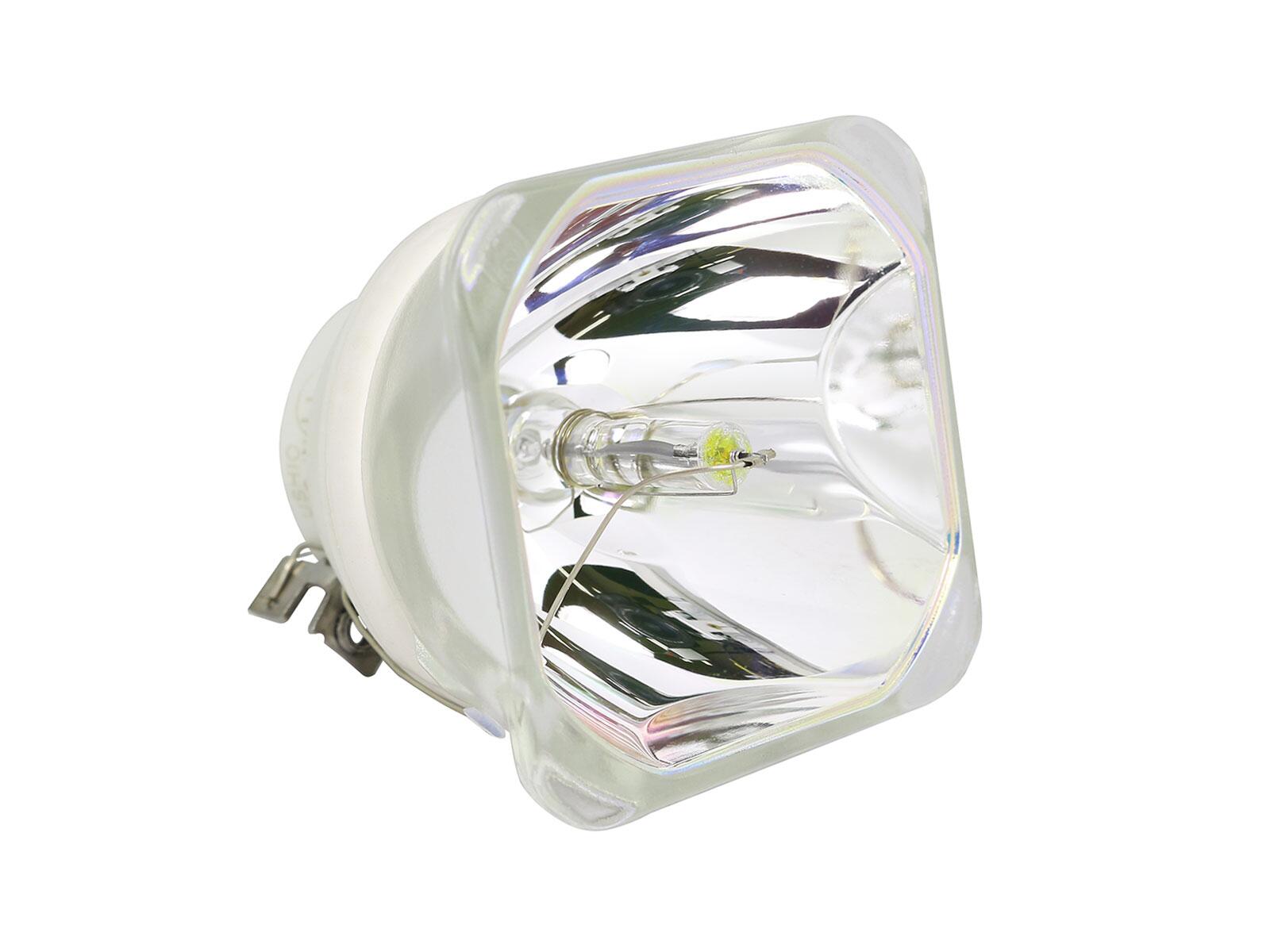

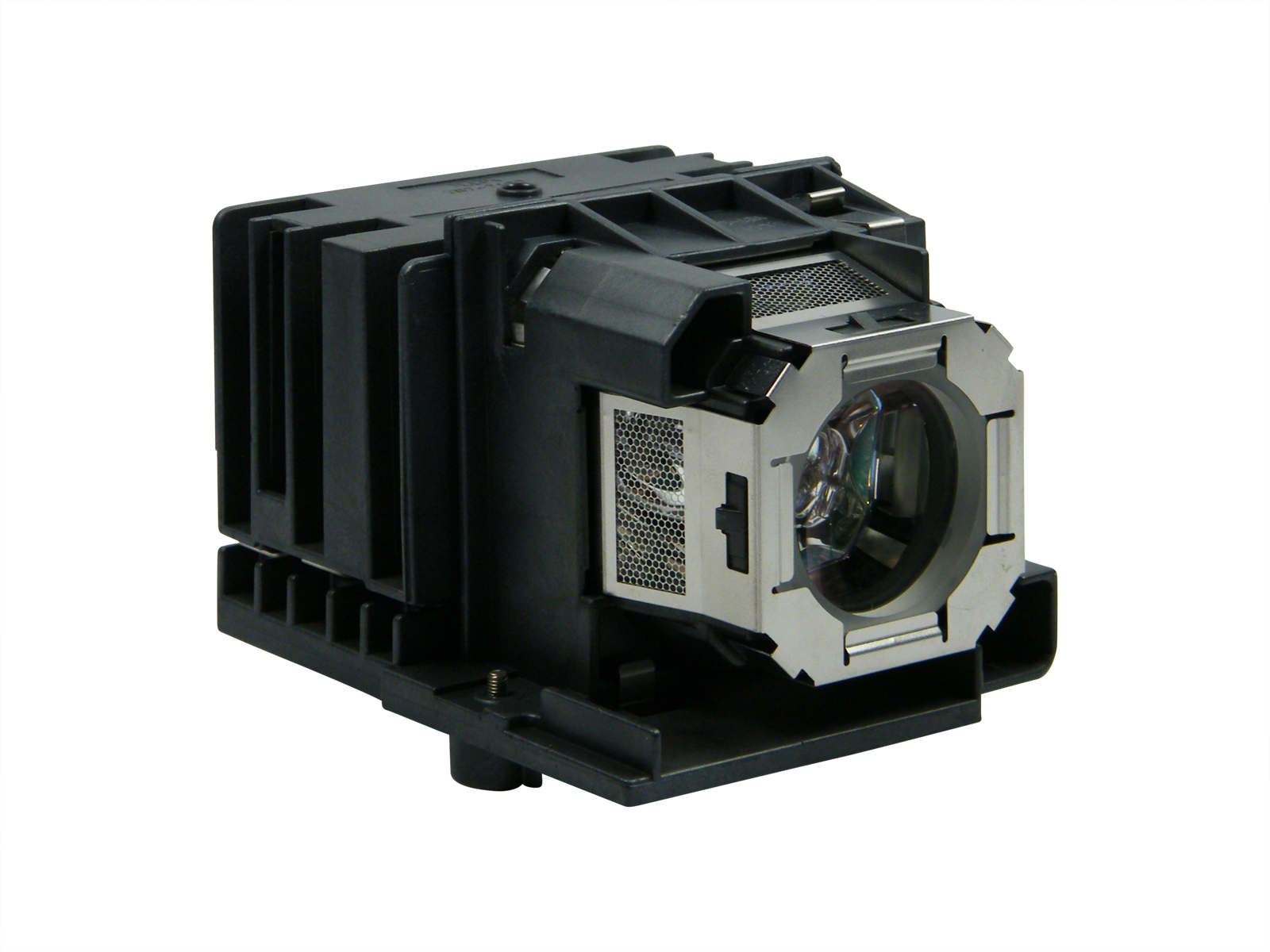

250W NSHA Lamp
Article Nr.: RS-LP08 / 8377B001
|
|
| Light Life |
4000 h. 5000 h. in Eco Mode |
| Operating Costs |
|
|
278 - 502 cm
|
 |
|
Lux: |
2222 Lux |
|
Room light max.: |
444 Lux |
|
Candela pro m²: |
706 cd/m² |
|
Foot-Lamberts: |
206 fL |
|
 |
| 68 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,81 |
| Objective |
F=2,8 f=21,7-39,0 mm |
| Throw Ratio |
1,39-2,51:1 show |
| Audio |
1 x 5W Mono |
| Connections |
HDMI in
DVI-I in
D-sub 15pin in
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in
RJ45 mit HDBaseT in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
365 / 295W in Eco Mode |
| Size WxHxD |
337 x 134 x 370 mm (13,3"x5,3"x14,6") 16,71 L/dm³
|
| Operating Noise |
37 / 30 dB in Eco Mode |
Key: 101 cm
Shift: 68 cm |
Key: 101 cm
Shift: 20 cm |
| Key: 101 cm
Shift: 20 cm |
| |
|
|
| Weight |
5,90 kg / 13,01 lbs. |
| Keystone |
Vert.: +/-20°
Hori.: +/-20°
|
| Illumination |
90% |
| Frequenz |
- |
| Foot-Lamberts |
206 fL
/ max. 718 cm screen width |
| Candela m² |
706 cd/m² |
| Features |
 Full HD 1080P compatible
Lens shift Funktion
Integrated Mediaplayer
Eco Mode
Kensington Slot
Edge Blending
PJLink™
Lan network compatible.
Crestron®-Software compatible.
Picture-in-picture
DICOM simulation DICOM-14 standard
|
|
Optional only
Google TV /
Fire TV /
Apple TV /
Roku TV /
Xiaomi TV Ads |
In Comparison
The Canon XEED WUX500 Medical compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
61 |
Weight: |
|
71 |
| Contrast: |
|
1 |
dB: |
|
31 |
| Black level: |
|
91 |
Power cons.: |
|
96 |
| Picture Total Points: | 51 |
Projector Total Points: | 66 |
|
| Popularity Top 100 |
|
| Points: |
|
7 |
| Ranking: |
3779 (From: 7662) |
|
|
|
|
|
| Status |
2014 Discontinued (EOL) // Last update of the data: 2023-08-04
Created: 2020-09-14 13:51:20
|
