Brief Introduction
Beta 2.5 |

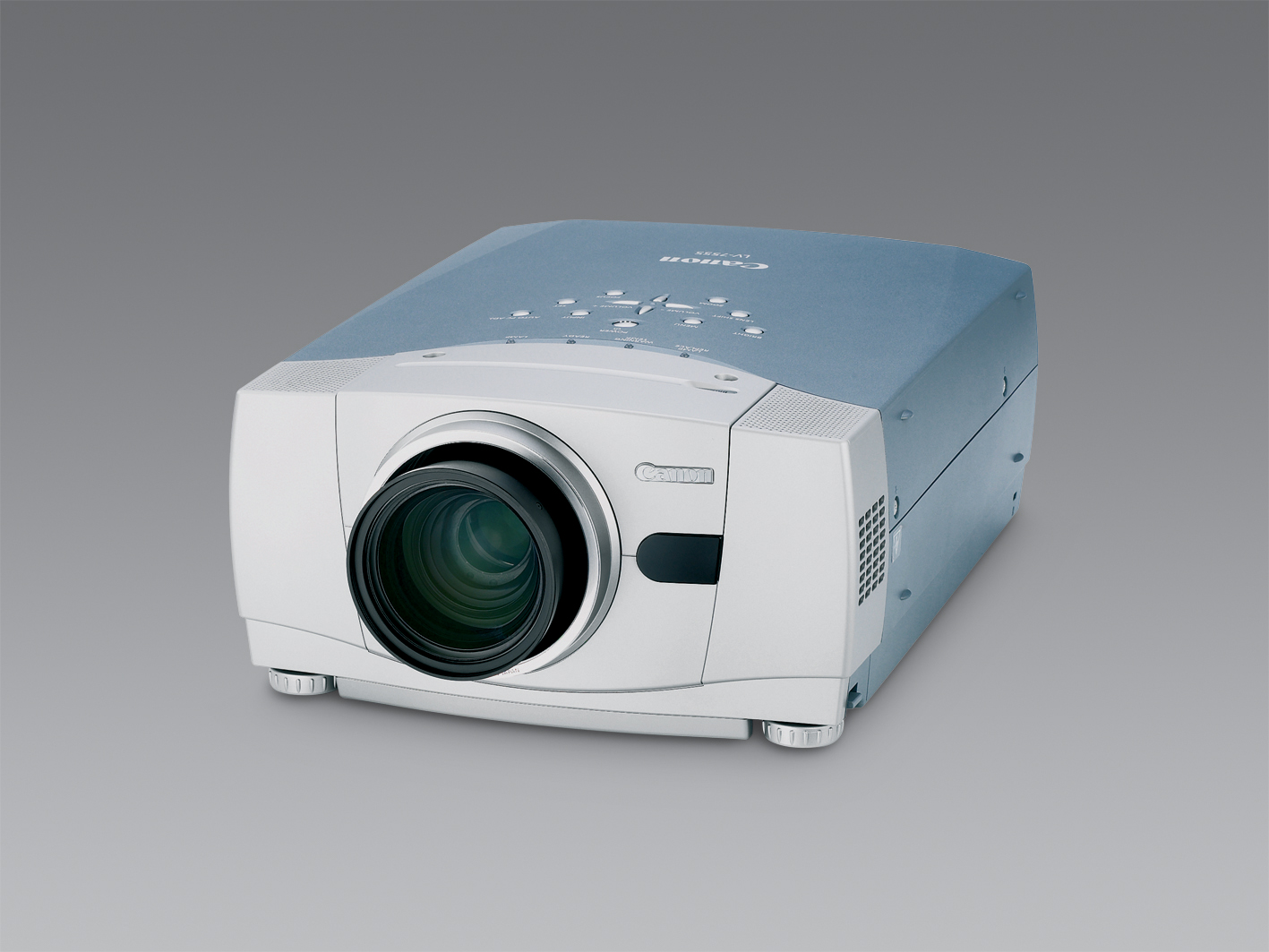

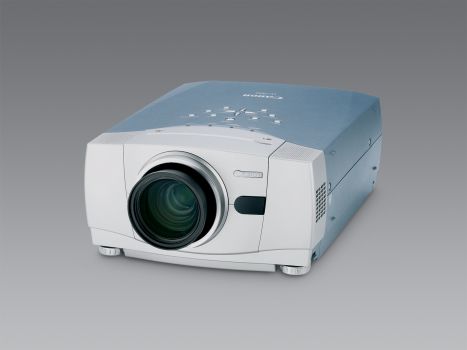

The Canon LV 7555/F LCD projector has 4600 Ansi lumens, a contrast of 900:1 and an XGA 1024 x 768 resolution. Includes a lens shift and keystone correction function, which provides freedom during installation. 4600 Ansi lumens ensure that a picture width of 591 cm is also possible. The projector creates rooms with residual light with a smaller image width, we recommend a maximum of 394 cm. The projector is no longer sold by the manufacturer.
|
| Display Type |
3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
4600 / 4000 im Eco Mode |
Screen |
1533 Lux (200 cm Screen width) |
| Contrast |
900:1 full on/off |
900:1 full on/off
|
| Black Level |
5,1111 min. Lumen |
1,709 min. Lumen |
| Lens shift |
Vert.: +50% -0%
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, |
| Application |
Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Wide screen width or rooms with plenty of light (over 200 lumens). |
| Light Source |
300W NSH Lamp
Article Nr.: LV-LP17
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
364 - 474 cm
|
 |
|
Lux: |
1533 Lux |
|
Room light max.: |
307 Lux |
|
Candela pro m²: |
487 cd/m² |
|
Foot-Lamberts: |
142 fL |
|
 |
| 75 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,3 |
| Objective |
F=1,7-2,0 f=48,2-62,6 mm / F optional |
| Throw Ratio |
1,82-2,37:1 show |
| Audio |
2W + 2W, Stereo |
| Connections |
Digitaler RGB-Eingang DVI-D (24-polig)
Analoger RGB-Eingang/
Ausgang 15poliger Mini D-Sub/SCART-Eingang, Analoger RGB-Ausgang
Analoger RGB-Eingang 5 BNC-Termina ls
Eingang Video 3 x RCA: (Komponentensignal), S-Video
Eingang Audio 2 x Mini Klinke (Stereo)
Ausgang Audio 1 x Mini Klinke (Stereo)
Eingang Audio 2 x RCA
Mausanschluss 1 x Mini DIN 8-PIN (seriell), USB Typ B |
| Ceiling Mounting |
Yes, is possible. |
| Power |
450 / 350W in Eco Mode |
| Size WxHxD |
319 x 168 x 465,2 mm (12,6"x6,6"x18,3") 24,92 L/dm³
|
| Operating Noise |
39 / 35 dB in Eco Mode |
Key: 305 cm
Shift: 75 cm |
Key: 64 cm |
| Key: 64 cm |
| |
|
|
| Weight |
9,30 kg / 20,5 lbs. |
| Keystone |
Vert.: +/-40°
Hori.: +/-10°
|
| Illumination |
90% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 160 MHz |
| Foot-Lamberts |
142 fL
/ max. 591 cm screen width |
| Candela m² |
487 cd/m² |
| Features |
 Lens shift Funktion
Freeze
Eco Mode
Gamma correction
Remote control with laser pointer und mouse control
Optional Wi-Fi network compatible.
Optional LAN network compatible.
|
|
- |
In Comparison
The Canon LV 7555/F compared to others not current "Stationary" projectors. |
| Ansi-Lumen: |
|
45 |
Weight: |
|
99 |
| Contrast: |
|
1 |
dB: |
|
94 |
| Black level: |
|
85 |
Power cons.: |
|
95 |
| Picture Total Points: | 44 |
Projector Total Points: | 96 |
|
| Popularity Top 100 |
|
| Points: |
|
30 |
| Ranking: |
679 (From: 2514) |
|
|
|
|
|
|
Optional Lenses |
|
| Name | Ratio | Distance | Shift V | Shift H | Zoom |
| LV-IL04 | 4.12-5.56:1 | 824-1112 m |
50% |
|
Powered |
| LV-IL03 | 2.31-4.19:1 | 462-838 m |
50% |
|
Powered |
| LV-IL02 | 1.26-1.81:1 | 252-362 m |
50% |
|
Powered |
| LV-IL01 | 0.81:1 | 162 m |
0.0% Fix |
|
No Zoom |
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
Product Sheet USA
Press release
User Manual english (2.35 MB)
Objektiv-Wiedereinbau und Installation (0.42 MB)
|
