Brief Introduction
Beta 2.5 |

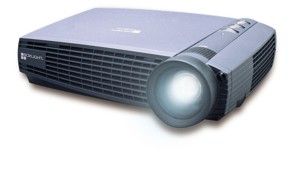

The Boxlight model XD 10m is a DLP projector with XGA 1024 x 768 resolution and a contrast of 400:1. An image width of up to 289 cm is possible as the projector has 1100 Ansi lumens. However, if room light is available, the picture should be max. 193 cm wide. The projector is no longer sold by the manufacturer.
|
| Display Type |
1 DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1100 |
Screen |
367 Lux (200 cm Screen width) |
| Contrast |
400:1 full on/off |
400:1 full on/off
|
| Black Level |
2,7500 min. Lumen |
0,924 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM |
| Application |
Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |

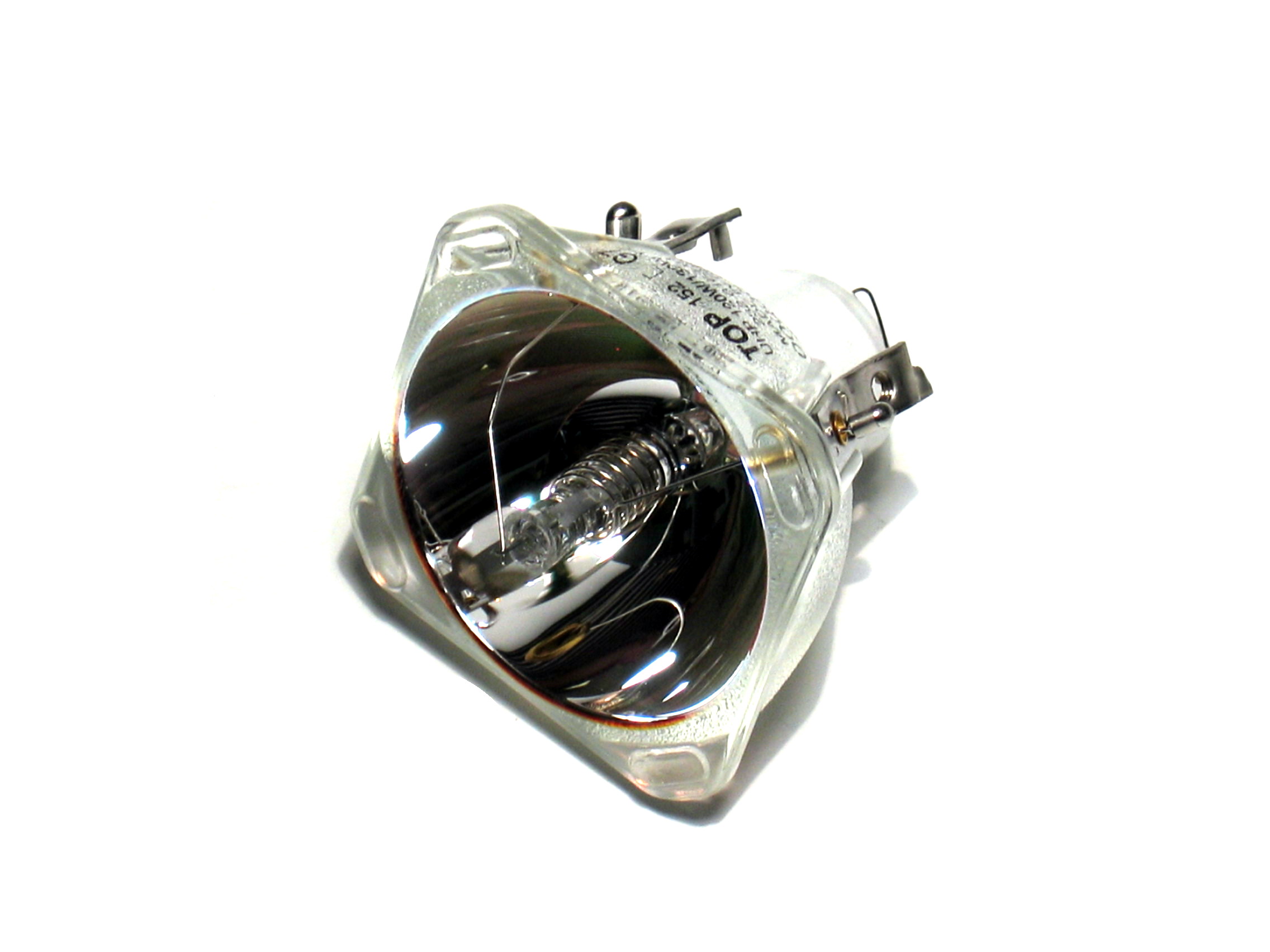

120W UHP Lamp
Article Nr.: XD10M-930
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
367 Lux |
|
Room light max.: |
73 Lux |
|
Candela pro m²: |
116 cd/m² |
|
Foot-Lamberts: |
34 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,7-2,0 |
| Throw Ratio |
- |
| Audio |
nicht vorhanden |
| Connections |
1-M1-DA (analog/digital)
USB Maus connection
1 - composite video
1- S-video |
| Ceiling Mounting |
Yes, is possible. |
| Power |
160W |
| Size WxHxD |
169,7 x 50,8 x 219,2 mm (6,7"x2"x8,6") 1,85 L/dm³
|
| Operating Noise |
37dB |
|
| Weight |
1,36 kg / 3 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
- |
| Frequenz |
H-sync: 31-79 kHz
V-sync: 50-85 Hz
|
| Foot-Lamberts |
34 fL
/ max. 289 cm screen width |
| Candela m² |
116 cd/m² |
| Features |
 Kensington Slot
|
|
- |
In Comparison
The Boxlight XD 10m compared to others not current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
30 |
Weight: |
|
10 |
| Contrast: |
|
1 |
dB: |
|
25 |
| Black level: |
|
61 |
Power cons.: |
|
71 |
| Picture Total Points: | 31 |
Projector Total Points: | 35 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
322 (From: 395) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
