Brief Introduction
Beta 2.5 |
The standard portable CD 725c DLP has 2000 Ansi lumens, a contrast of 600:1 and an XGA 1024 x 768 resolution. The projector will be able to illuminate a picture width of 389 cm well. However, if room light is available, the image width should ideally not exceed 259 cm. This model is no longer available from Boxlight.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2000 |
Screen |
667 Lux (200 cm Screen width) |
| Contrast |
600:1 full on/off |
600:1 full on/off
|
| Black Level |
3,3333 min. Lumen |
1,117 min. Lumen |
| Offset |
-
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM HDTV 480p |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

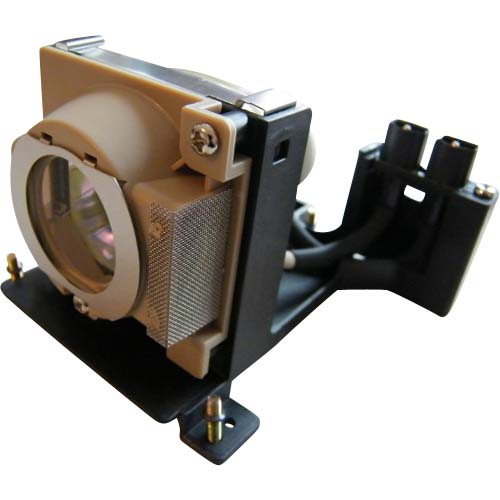

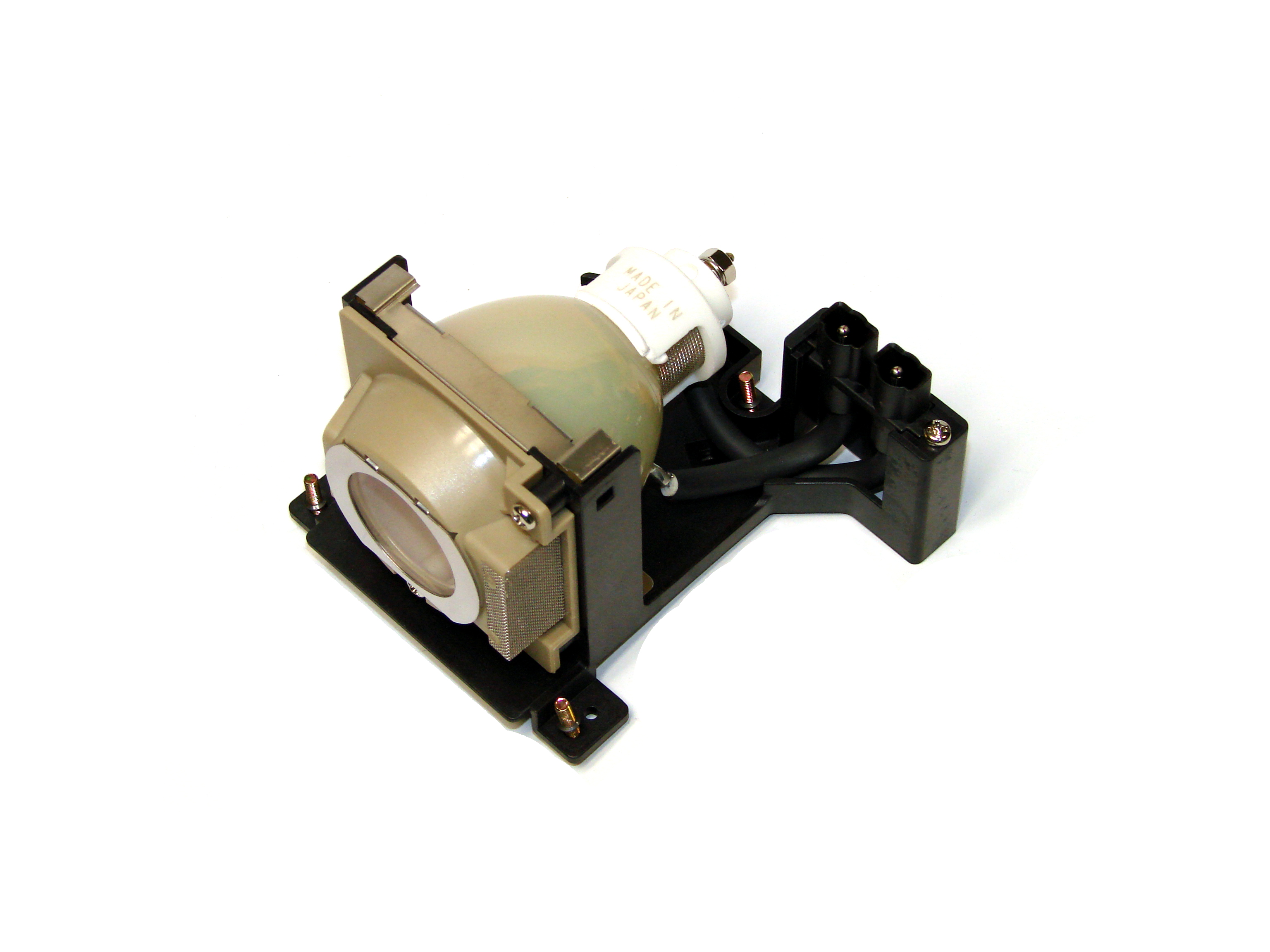

210W NSH Lamp
Article Nr.: CD725C-930
|
|
| Light Life |
1500 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
667 Lux |
|
Room light max.: |
133 Lux |
|
Candela pro m²: |
212 cd/m² |
|
Foot-Lamberts: |
62 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
- |
| Throw Ratio |
- |
| Audio |
1 x 1W Mono |
| Connections |
Inputs:
1 15-pin computer, 1-RCA component video, 1-S-video, 1-composite video, 1-RCA (L/R) audio, 1-computer mini-jack Outputs:
1 15-pin computer, control port for RS232C control, USB for Maus operation |
| Ceiling Mounting |
Yes, is possible. |
| Power |
233W |
| Size WxHxD |
254 x 94 x 304,8 mm (10"x3,7"x12") 7,26 L/dm³
|
| Operating Noise |
35dB |
|
| Weight |
3,08 kg / 6,79 lbs. |
| Keystone |
Vert.: +/-15°
|
| Illumination |
- |
| Frequenz |
H-sync: 20-88 kHz
V-sync: 20-100 Hz
|
| Foot-Lamberts |
62 fL
/ max. 389 cm screen width |
| Candela m² |
212 cd/m² |
| Features |
 Freeze
Kensington Slot
Picture-in-Picture
Remote control with laser pointer und mouse control
|
|
- |
In Comparison
The Boxlight CD 725c compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
23 |
Weight: |
|
85 |
| Contrast: |
|
1 |
dB: |
|
36 |
| Black level: |
|
88 |
Power cons.: |
|
98 |
| Picture Total Points: | 37 |
Projector Total Points: | 73 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
6886 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
