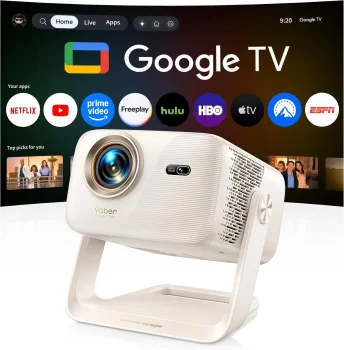

According to Yaber, the L2 model provides 650 ANSI lumens, a contrast ratio of 20000:1 alongside a HDTV 1920 x 1080 resolution. An LED lifespan of 30000 hours is noted in the data sheet for this model, covering an estimated 20.5 years based on a 4-hour daily runtime. To make performance data comparable based on the ISO lumen values, we calculated an approximate ANSI lumen value. Looking at practical performance, up to 269 cm can be illuminated with 650 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 179 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K. Additionally, thanks to Google TV, the model is network-capable and can be used without external playback devices. Also on board is a local media player that allows reading and playing content directly from storage media. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device.
Display Type
1 x LCD Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
650 / 520 ISO Lumen
Screen
289 Lux (200 cm Screen width)
Contrast
20000:1 full on/off
20000:1 full on/off
Black Level
0,0325 min. Lumen
0,014 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Video Format
MP4、MKV、WMV、3GP 、MPG、VOB、TP、TS、DAT、MOV、FLVG
Audio Format
MP3, AAC, LPCM, FLAC, OGG
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (2.4)
234 cm (no Zoom)
Lux:
289 Lux
Contrast:
20000:1
Candela pro m²:
93 cd/m²
Foot-Lamberts:
27 fL
•
Focus
Automatic
Zoom
No Zoom 50%-100% Digital
Objective
-
Throw Ratio
1,17:1
Audio
2 x 8W JBL
Connections
HDMI (ARC) in
Mini Jack Audio out
USB in
Bluetooth 5.2
Full HD 1080P compatible
