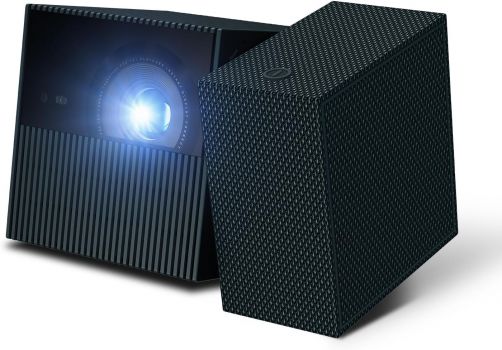

Categorized in the Standard-Portabel segment, the PlayCube projector from TCL projects with a HDTV 1920 x 1080 resolution, alongside 938 ANSI lumens and a contrast of 1000000:1. Thanks to LED technology, the projector is rated for a lifespan of up to 30000 hours – equivalent to a usable life of 20.5 years at 4 hours a day. To ensure a rectangular image even with asymmetrical placement, the projector includes digital keystone correction for both the horizontal and vertical axes. To reduce dependence on stationary power sources, the model is equipped with a built-in battery for autonomous operation. To make performance data comparable based on the ISO lumen values, we calculated an approximate ANSI lumen value. Looking at practical performance, up to 311 cm can be illuminated with 938 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 207 cm. Additionally, a built-in ambient light sensor measures the room lighting and automatically adjusts the projection settings. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. Additionally, thanks to Google TV, the model is network-capable and can be used without external playback devices. For convenient remote monitoring and administration, the projector is equipped with a classic RJ45 network socket. Thanks to support for Miracast, Airplay and Chromecast, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen. With a value of only 26 decibels, the noise level during operation remains pleasantly in the background.
Display Type
1 x 0,33" DMD DLP Chip HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
~938 / 750 ISO Lumen
Screen
417 Lux (200 cm Screen width)
Contrast
1000000:1
1000000:1
Black Level
0,0009 min. Lumen
0 min. Lumen
Offset
-
Resolution
HDTV 1920 x 1080
2.073.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Standard-Portabel | Battery projector | External training and company presentations, as well as product presentations. Small screen width, rooms with very little ambient light below 50 lumens.
Light Source
RGB LED
Light Life
30000 h.
Operating Costs
0,00 € LED
Calculated brightness qualityGood (1.8)
242 cm (no Zoom)
Lux:
417 Lux
Contrast:
1000000:1
Candela pro m²:
134 cd/m²
Foot-Lamberts:
39 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,21:1
Audio
85W
Connections
HDMI in
D-sub 15pin in und out
Cinch Video in
Cinch Stereo in
Mini Jack Audio in und out
USB in
RS232C Din 9 pin in
RJ45 in
Ceiling Mounting
-
Power
-
Size WxHxD
96,5 x 149,9 x 99,1 mm (3,8"x5,9"x3,9") 1,42 L/dm³
Full HD 1080P compatible Automatic and manual vertical keystone correction Wi-Fi network compatible. Lan network compatible. Ambient Light Sensor. 66Wh Google TV (Voice Assistant) Auto 4P Keystone Auto Screen Fit Auto Obstacle Avoidance EQ Sound Modes 90? Gimbal ToF Sensor
Full HD 1080P compatible
Product Sheet english HC
