Norbridge HY320 Mini


EAN/UPC:B0GTVS34H5

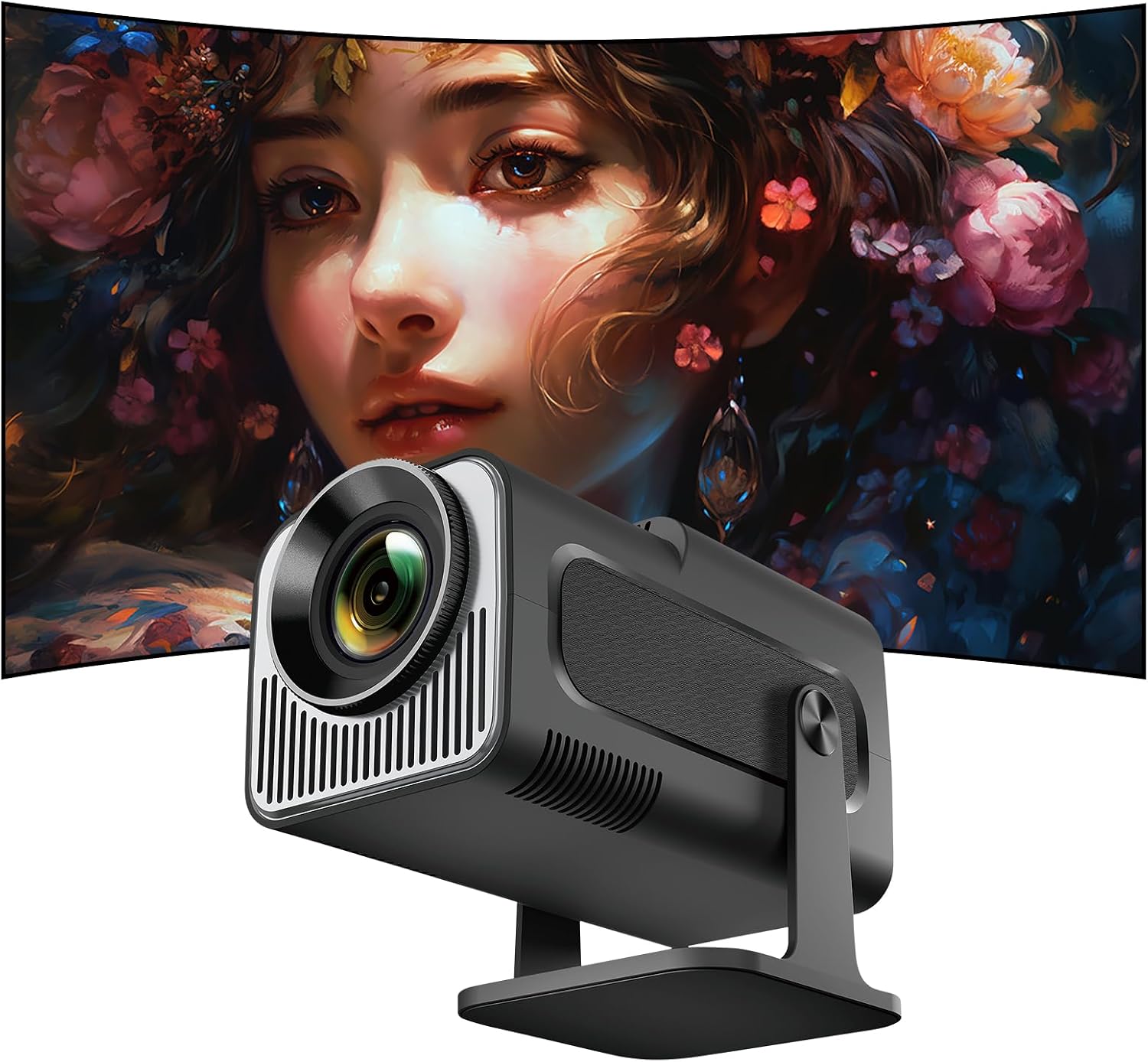

Image Norbridge HY320 Mini
Customer review
Offer Ads
Discover the projector on Amazon. Now!
Model Overview The HY320 Mini model is a LED-LCD projector from Norbridge, intended for Game-Portabel applications, offering 300 ANSI lumens, a contrast of 2000:1 at HDTV 1280 x 720. The built-in LED technology features a light source lifespan of 30000 hours, covering an estimated 20.5 years based on a 4-hour daily runtime.
A look at the light output reveals: The 300 ANSI lumens are sufficient to illuminate an image width of up to 144 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 96 cm.
For media input, video signals up to 1080P and 4K are supported. Android TV is integrated as a smart platform, enabling direct access to streaming services like Netflix or YouTube. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Thanks to support for Miracast and Airplay, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
In the specifications, the operating noise is listed at a mere 25 decibels, indicating very quiet cooling.
Display Type 1 x LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
300
Screen
133 Lux (200 cm Screen width)
Contrast 2000:1 2000:1
Black Level 0,1500 min. Lumen 0,067 min. Lumen
Offset 0,0% Centre of the screen →
SCREEN
+ Projector
Resolution HDTV 1280 x 720
921.600 Pixel
UHD (4K2K) 3840 x 2160 compressed
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p
Media player formats: Mediaplayer
Application Game-Portabel | Very portable, small-screen projections.
Very narrow picture width and rooms with very little light.
Light Source LED
Light Life 30000 h.
Operating Costs 0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
226 cm (no Zoom)
Lux: 133 Lux
Contrast: 2000:1
Candela pro m²: 41 cd/m²
Foot-Lamberts: 12 fL
0 cm

Screen width:cm
          Room:
•
Focus Manual
Zoom No Zoom 50%-100% Digital
Objective -
Throw Ratio 1,13:1
Audio 1 x 3W
Connections HDMI in
USB in
Audio Mini Jack out
Bluetooth 5.0
Ceiling Mounting -
Size WxHxD 100 x 170 x 119 mm (3,9"x6,7"x4,7") 2,02 L/dm³
Power 50W
Keystone

Not
possible
+
+
SCREEN

Not
possible

Operating Noise 25dB
Weight 0,450 kg / 0 lbs.
Keystone Vertical automatic
Illumination 60%
Frequenz -
Foot-Lamberts 12 fL / max. 144 cm screen width
Candela m² 41 cd/m²
Features Lens Shift Function geschätzt
Integrated Media Player
Automatic and Manual Vertical Keystone Correction
W-Lan Netzwerk kompatibel.
Android TV 13.0
180? swivel
Auto 4P Keystone
Screen Mirroring Miracast, Airplay, Windows
In Comparison
The Norbridge HY320 Mini compared to others current "Game-Portabel" projectors.
Ansi-Lumen:
26 Weight:
72
Contrast:
1 dB:
88
Black level:
89 Power cons.:
100
Picture Total Points:39 Projector Total Points:87
Popularity Top 100
0 popularity points in May 0 popularity points in June 0 popularity points in July 0 popularity points in August 8 popularity points in September 12 popularity points in October
Points:
12
Ranking: 309 (From: 614)
Live-Trend (Last 3 days)   LiveLIVE
Points: 6 -6% Trend
Status 2024 Current model // Last update of the data: 2026-10-23
