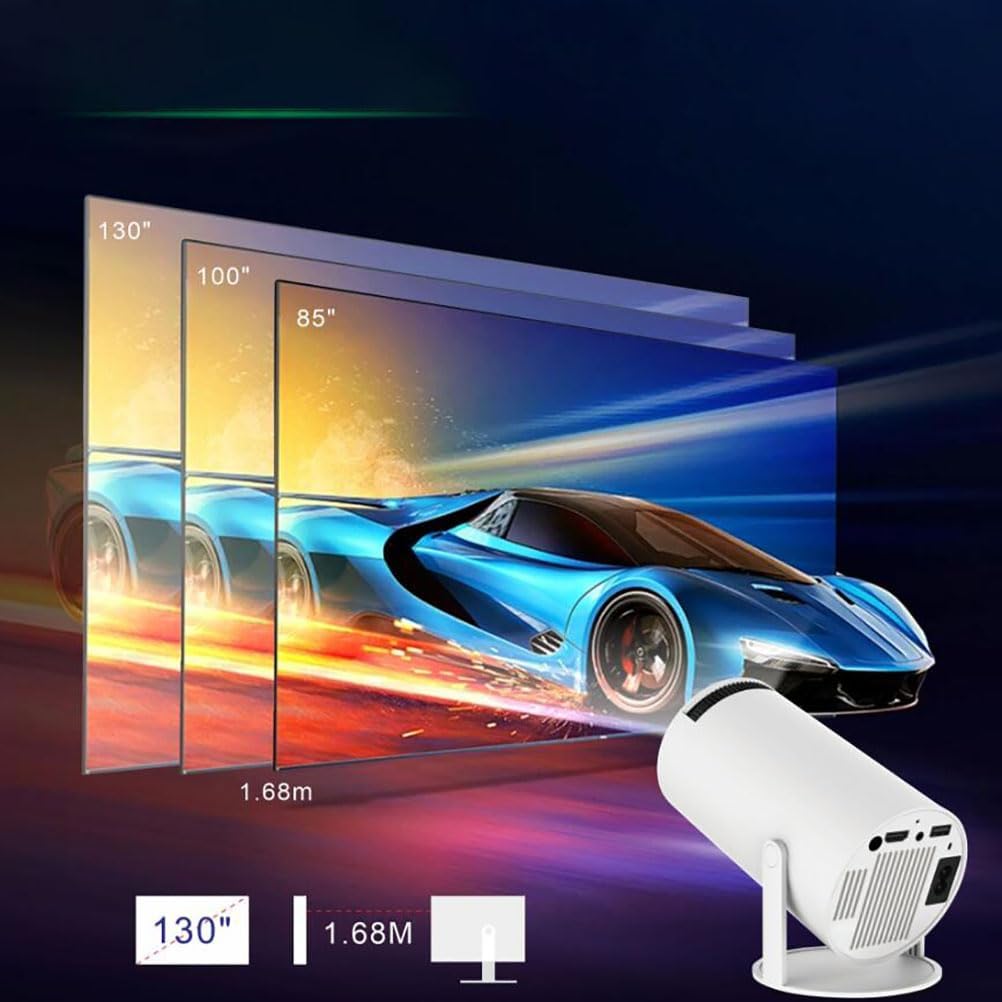

The HY300 model is a LCD projector from NAVPLUS, intended for Game-Portabel applications, offering 200 ANSI lumens, a contrast of 1500:1 at HDTV 1280 x 720. As an LED projector, the spec sheet indicates a lifespan of 30000 hours – equivalent to a usable life of 20.5 years at 4 hours a day. The image geometry can be adjusted via the built-in keystone correction so that a clean, rectangular display is achieved even with non-ideal placement. Looking at practical performance, up to 144 cm can be illuminated with 200 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 96 cm. Regarding signal processing, the model is compatible with incoming 1080P content and 4K. As an additional feature, an integrated media player enables the direct playback of files without an external source device. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. Regarding noise emissions, the model proves to be exceptionally quiet during operation, producing just 25 decibels.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
200
Screen
89 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
0,1333 min. Lumen
0,059 min. Lumen
Offset
-
Resolution
HDTV 1280 x 720
921.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is too dark. The screen width should be reduced.
Lux:
89 Lux
Contrast:
1500:1
Candela pro m²:
27 cd/m²
Foot-Lamberts:
8 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
-
Audio
Built-in loudspeaker
Connections
HDMI in
USB in
Audio Mini Jack in und out
Bluetooth 5.0
Full HD 1080P compatible Integrated Mediaplayer Automatic and manual vertical keystone correction Wi-Fi network compatible. Android 11.0 180° swivel range
Full HD 1080P compatible
