Maxx Mustang

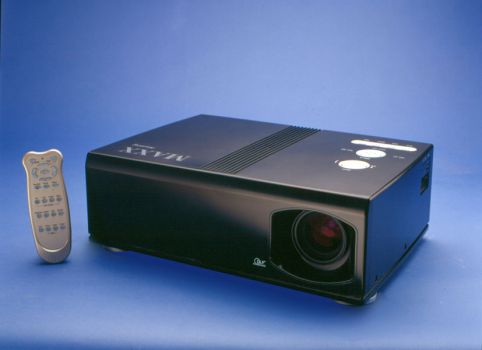

Image Maxx Mustang
Customer review
Offer Ads
Discover other popular projectors on Amazon!
Model Overview The projector Mustang by Maxx utilizes DLP technology and, according to the spec sheet, achieves 1000 ANSI lumens, a contrast of 2000:1 at a resolution of HDTV 1280 x 720. The runtime of the lamp in this model is estimated at 2000 hours before a replacement is necessary.
Regarding projection size, the value of 1000 ANSI lumens allows for an image width of up to 321 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 214 cm.
The model is currently no longer actively offered on the market by the manufacturer.
Display Type       1 x 0,97 HD2 12° DDR DLP Chip
      HDTV 16/9 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
1000
Screen
444 Lux (200 cm Screen width)
Contrast 2000:1 (full on/off) 2000:1 (full on/off)
Black Level 0,5000 min. Lumen 0,222 min. Lumen
Offset -
Resolution HDTV 1280 x 720
921.600 Pixel
Video Modes Full NTSC/PAL/SECAM, VESA, Mac, PC, True HDTV (720p, 1080i) & 480/p, 576i/p
Disc Recognition DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray
Application Homecinema | Small screen width, rooms with very little ambient light below 50 lumens.
Light Source 250W / 200W im Eco Mode Lamp
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
Calculated brightness quality Good (1.8)
264 - 356 cm
Lux: 444 Lux
Contrast: 2000:1
Candela pro m²: 140 cd/m²
Foot-Lamberts: 41 fL

Screen width:cm
          Room:
•
Focus Powered
Zoom Powered 1,35
Objective F=2,4 f=28,3-38,2 mm
Throw Ratio 1,32-1,78:1 show
Audio -
Connections 12V trigger
RS232C
DVI,
BNC,
YcbCr/YpbPr,
RCA-type jack,
S-Video,
dual IR receivers
Ceiling Mounting Yes, is possible.
Power 320W, <20W in standby
Size WxHxD 430 x 135 x 305 mm (16,9"x5,3"x12") 17,71 L/dm³
Operating Noise -
Weight 7,50 kg / 16,53 lbs.
Keystone -
Illumination -
Frequenz H-sync: 31,5-100 kHz
V-sync: 43-85 Hz
Foot-Lamberts 41 fL / max. 321 cm screen width
Candela m² 140 cd/m²
Features Eco Mode
Screen Mirroring -
In Comparison
The Maxx Mustang compared to others not current "Homecinema" projectors.
Ansi-Lumen:
8 Weight:
100
Contrast:
1 dB: 0
Black level:
94 Power cons.:
93
Picture Total Points:34 Projector Total Points:0
Popularity Top 100
3 popularity points in April 1 popularity points in May 3 popularity points in June 2 popularity points in July 2 popularity points in August 2 popularity points in September
Points:
2
Ranking: 954 (From: 990)
Please note Manufacturers website no longer online:
http://www.maxxproducts.com
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Status - Discontinued (EOL) // Last update of the data: 2026-06-09
Data
Product Sheet
Product Sheet english HC

Projektor Maxx Mustang
