The HY300 model is a Laser-LCD projector from LYNCAST, intended for Game-Portabel applications, offering 260 ANSI lumens, a contrast of 1500:1 at HDTV 1280 x 720. The manufacturer specifies a durability of 30000 hours for the LED light source – equivalent to a usable life of 20.5 years at 4 hours a day. Should a perpendicular setup to the screen not be possible, the integrated keystone correction (horizontal and vertical) helps to realign the image into a perfect rectangle. Regarding projection size, the value of 260 ANSI lumens allows for an image width of up to 164 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 109 cm. For media input, video signals up to 1080P and 4K are supported. Also on board is a local media player that allows reading and playing content directly from storage media. Furthermore, the model is Bluetooth-enabled, allowing audio signals to be sent wirelessly to external speakers. Since the projector supports Miracast and Airplay screen mirroring, video signals can also be streamed wirelessly from the end device. With a value of only 25 decibels, the noise level during operation remains pleasantly in the background.
Display Type
1 x LCD TFT Panel HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
260
Screen
116 Lux (200 cm Screen width)
Contrast
1500:1 full on/off
1500:1 full on/off
Black Level
0,1733 min. Lumen
0,077 min. Lumen
Offset
-
Resolution
HDTV 1280 x 720
921.600 Pixel UHD (4K2K) 3840 x 2160 compressed
Video Modes
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), EDTV 480p, 576p Media player formats: Mediaplayer
Application
Game-Portabel | Very portable, small-screen projections. Very narrow picture width and rooms with very little light.
Light Source
LED
Light Life
30000 h.
Operating Costs
0,00 € LED
The projection is okay. A smaller screen width would result in a brighter image.
258 cm (no Zoom)
Lux:
116 Lux
Contrast:
1500:1
Candela pro m²:
38 cd/m²
Foot-Lamberts:
11 fL
•
Focus
Automatic
Zoom
No Zoom
Objective
-
Throw Ratio
1,29:1
Audio
Built-in loudspeaker

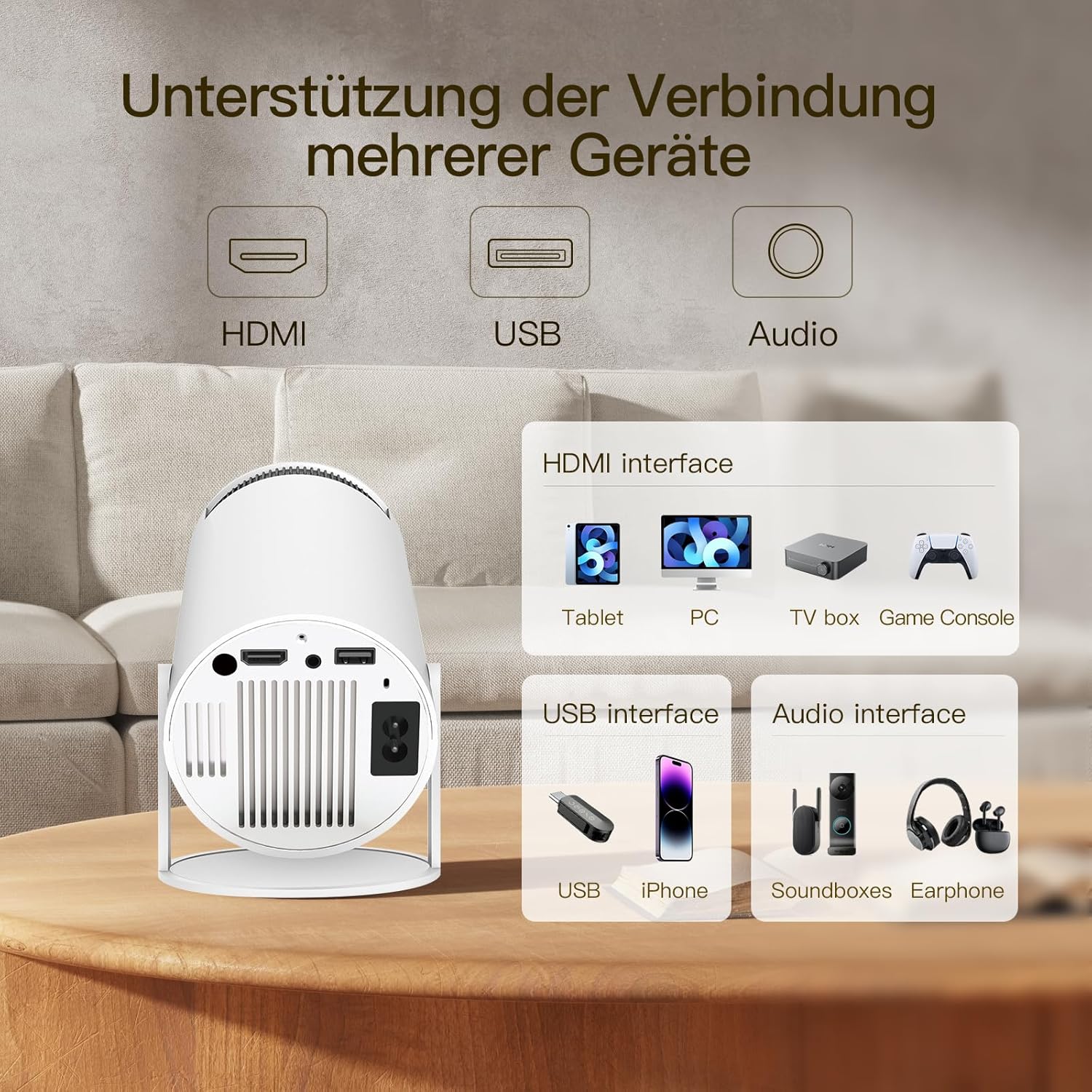

Connections
HDMI in
USB in
Audio Mini Jack in und out
Bluetooth 5.0
Full HD 1080P compatible
Product Sheet english HC
