Brief Introduction
Beta 2.5 |

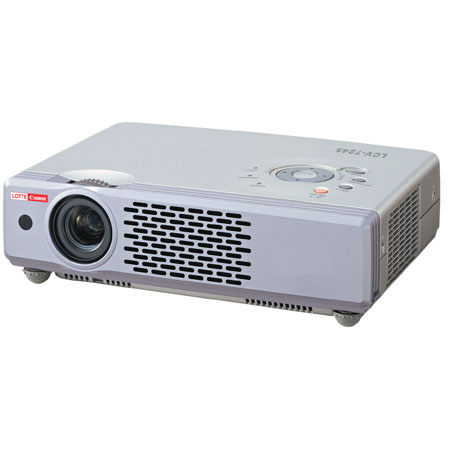

A brief introduction to the LCV 8245: The Lotte Canon standard portable LCD projector offers 2300 Ansi lumens, a contrast of 450:1 and an XGA 1024 x 768 resolution. 2300 Ansi lumens ensure that an image width of 418 cm is also possible. However, if room light is available, the picture should be max. 279 cm wide. The model is no longer offered by Lotte Canon.
|
| Display Type |
3 x 0,79" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
|
| Ansi-Lumen |
Projector |
2300 |
Screen |
767 Lux (200 cm Screen width) |
| Contrast |
450:1 full on/off |
450:1 full on/off
|
| Black Level |
5,1111 min. Lumen |
1,716 min. Lumen |
| Offset |
40% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, PAL-M, PAL-N, PAL-60, SECAM, NTSC, EDTV HDTV 720p, 1080i, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |
200W UHP Lamp
|
|
| Light Life |
- |
| Operating Costs |
-
|
|
330 - 390 cm
|
 |
|
Lux: |
767 Lux |
|
Room light max.: |
153 Lux |
|
Candela pro m²: |
243 cd/m² |
|
Foot-Lamberts: |
71 fL |
|
 |
| 60 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=1,7-2,1 f=26,7-32 mm |
| Throw Ratio |
1,65-1,95:1 show |
| Audio |
1W Mono |
| Connections |
D-sub 15pin in
Cinch Video in
Cinch Stereo in
S-Video in
Mini Jack
USB Typ B
RS232C Din 8pin |
| Ceiling Mounting |
Yes, is possible. |
| Power |
270 / 196W in Eco Mode |
| Size WxHxD |
298 x 71 x 214 mm (11,7"x2,8"x8,4") 4,53 L/dm³
|
| Operating Noise |
- |
|
| Weight |
2,70 kg / 5,95 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-80 kHz
V-sync: 50-100 Hz
Range max.: 100 MHz |
| Foot-Lamberts |
71 fL
/ max. 418 cm screen width |
| Candela m² |
243 cd/m² |
| Features |
 Eco Mode
|
|
- |
In Comparison
The Lotte Canon LCV 8245 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
27 |
Weight: |
|
87 |
| Contrast: |
|
1 |
dB: |
|
0 |
| Black level: |
|
81 |
Power cons.: |
|
97 |
| Picture Total Points: | 36 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
4 |
| Ranking: |
6541 (From: 7662) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
|
|
