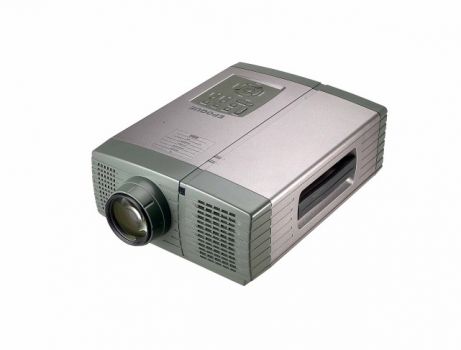

A projector from Epoque is the EFP 8540, whose LCD model delivers 2300 ANSI lumens, a resolution of XGA 1024 x 768 and a contrast of 350:1. According to Epoque, the lamp has a durability of 2000 hours. A look at the light output reveals: The 2300 ANSI lumens are sufficient to illuminate an image width of up to 418 cm in darkened rooms. If room light is present, we recommend not exceeding a maximum width of 279 cm. This is a discontinued model that is no longer officially distributed by Epoque.
Display Type
3 x 1,3" LCD TFT Panel mit MLA XGA 4/3 Liquid Crystal Display with Micro Lense Array
Ansi-Lumen
Projector
2300
Screen
767 Lux (200 cm Screen width)
Contrast
350:1 full on/off
350:1 full on/off
Black Level
6,5714 min. Lumen
2,21 min. Lumen
Offset
-
Resolution
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes
NTSC, PAL, SECAM Pal 60 NTSC 4,43
Application
Standard-Portabel | External training and company presentations, as well as product presentations. Medium screen width or rooms with little light, max. 100 lumens.
Light Source
150W SHP Lamp
Light Life
2000 h.
Operating Costs
-
Calculated brightness quality Perfect
Lux:
767 Lux
Contrast:
350:1
Candela pro m²:
243 cd/m²
Foot-Lamberts:
71 fL
•
Focus
Powered
Zoom
Powered 1,24
Objective
F=1,7-2,1
Throw Ratio
-
Audio
2 x 2W Stereo
Connections
1 RGB inputs (D-sub 15pins 1)
1 DVI inputs (Digital Keystone Korrektur 1)
2 audio inputs für RGB inputs (Stereo mini jack2)
1 PS/2 connectivity (Centronic 8 pins)
1 USB port
1 component video input (Y Cb Cr 1)
1 S-Video input (mini DIN/4 pins 1)
1 composite video input (RCA 1)
1 audio input für video (RCA L&R 2)
1 RGB outputs (D-sub 15pins 1)
1 audio outputs für RGB inputs (Stereo mini jack 1)
Remote control with laser pointer
