Claxan EX 17025
Image Claxan EX 17025
Customer review
✎ Help other users and be the first to share your review.
✎ Help other and be the first to share your review.
Offer Ads
Discover other popular projectors on Amazon!

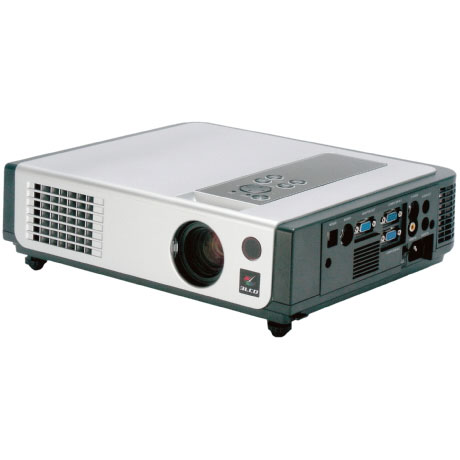

Model Overview The Claxan EX 17025 is a LCD projector that brings 2600 ANSI lumens, a XGA 1024 x 768 resolution alongside a contrast of 500:1. In operating mode, the installed projector lamp offers a lifespan of 2000 hours.
Looking at practical performance, up to 444 cm can be illuminated with 2600 ANSI lumens in dark environments. Once daylight is in the room, the image should ideally be no wider than 296 cm.
The projector was released in 2006 and is officially no longer distributed by Claxan.
Display Type       3 x 0,7" LCD TFT Panel
      XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2600
Screen
 867 Lux (200 cm Screen width)
Contrast 500:1 full on/off 500:1 full on/off
Black Level 5,2000 min. Lumen 1,744 min. Lumen
Offset -
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p
Application Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 200W NSH Lamp
Article Nr.: Ruby-LMPf16616
Light Life 2000 h.
Operating Costs -
Calculated brightness quality Perfect
372 - 444 cm
Lux: 867 Lux
Contrast: 500:1
Candela pro m²: 278 cd/m²
Foot-Lamberts: 81 fL

Screen width:cm
          Room:
•
Focus Manual
Zoom Manual 1,2
Objective F=1,8-2,1 f=26,5-31,5 mm
Throw Ratio 1,86-2,22:1 show
Audio 2 x 1W

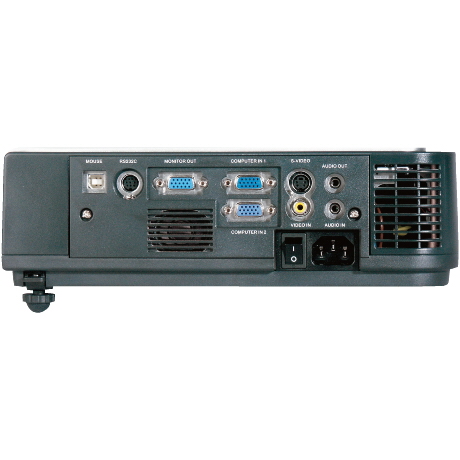

Connections D-sub 15 in und out
S-Video in
Cinch Video in
RS232C
USB
Mini Jack in und out
Ceiling Mounting Yes, is possible.
Power 250W
Size WxHxD 310 x 96 x 270 mm (12,2"x3,8"x10,6") 8,04 L/dm³
Operating Noise 33 / 30 dB in Eco Mode
Key: 215 cm

Without offset

Key: 215 cm
Weight 2,70 kg / 5,95 lbs.
Keystone Vert.: +/-30°
Illumination -
Frequenz H-sync: 15-100 kHz
V-sync: 43-120 Hz
Foot-Lamberts 81 fL / max. 444 cm screen width
Candela m² 278 cd/m²
Features Eco Mode
Remote control with laser pointer
Screen Mirroring Optional only Google TV / Fire TV / Apple TV / Roku TV / Xiaomi TV Ads
In Comparison
The Claxan EX 17025 compared to others not current "Standard-Portabel" projectors.
Ansi-Lumen:
31 Weight:
87
Contrast:
1 dB:
41
Black level:
81 Power cons.:
98
Picture Total Points:38 Projector Total Points:75
Popularity Top 100
0 popularity points 2 popularity points 4 popularity points 0 popularity points 1 popularity points 3 popularity points
Points:
3
Ranking: 5919 (From: 7737)
Optional accessories
ceiling bracket length: 100-120mmHalterung10047,86 €
Airfilter universaluni3mm18,15 €
Status 2006 Discontinued (EOL) // Last update of the data: 2026-06-09
