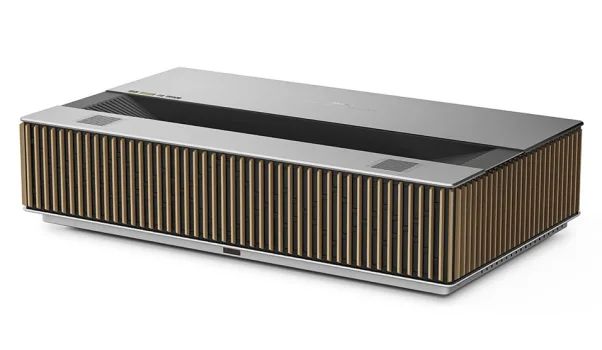

The basic data of the Awol Vision LuxVision includes 7500 ANSI lumens, a resolution of UHD (4K2K) 3840 x 2160 as well as a contrast of 10000:1. The manufacturer lists the lifespan for this model at 25000 hours, which translates to 17.1 years with 4 hours of daily use. Thanks to the combination of optical lens shift and digital keystone correction, the projected image's position can be adjusted very flexibly. The Projector Calculator helps find the optimal installation dimensions. The short-throw capabilities allow for large images at a short projection distance. According to specifications, a 2-meter wide image requires a distance of only 36 cm. Because the manufacturer specifies brightness in ISO lumen values, we have determined an ANSI lumen value for better comparability. Regarding projection size, the value of 7500 ANSI lumens allows for an image width of up to 754 cm in darkened environments. In rooms with ambient light, the image width should be correspondingly reduced to a maximum of 503 cm. In terms of video signals, the device processes resolutions up to Full HD 1080P and 4K as well as 3D, meaning standard Blu-ray formats are processed effortlessly. Equipped with Google TV, the device provides direct access to a broad spectrum of streaming services. For wireless audio output, the projector also supports Bluetooth, making it easy to quickly connect external soundbars. Thanks to support for Miracast, Airplay and DLNA, screen content can also be cast wirelessly from a smartphone, tablet, or PC to the screen.
Display Type
1 x 0,47" SST DMD DLP Chip, Dual DLPC 8545 HDTV 4/3 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
7500 / 6000 ISO Lumen
Screen
2500 Lux (200 cm Screen width)
Contrast
10000:1 nativ
10000:1 nativ
Black Level
0,7500 min. Lumen
0,25 min. Lumen
Lens shift
Vert.: +76% --71%
Lens shift
5%
8cm
+
Projector 32 cm over screen top edge.
Resolution
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift
Real Full HD 3D Full HD 1080P compatible Lens shift Funktion Automatic and manual vertical keystone correction High Dynamic Range (HDR) Picture-in-Picture Wi-Fi network compatible. Lan network compatible. Short-throw projector
Real Full HD 3D
