Sanyo PLC XT11
Sanyo LP XT11
Bild Sanyo PLC XT11
Brief Introduction
Beta 2.5

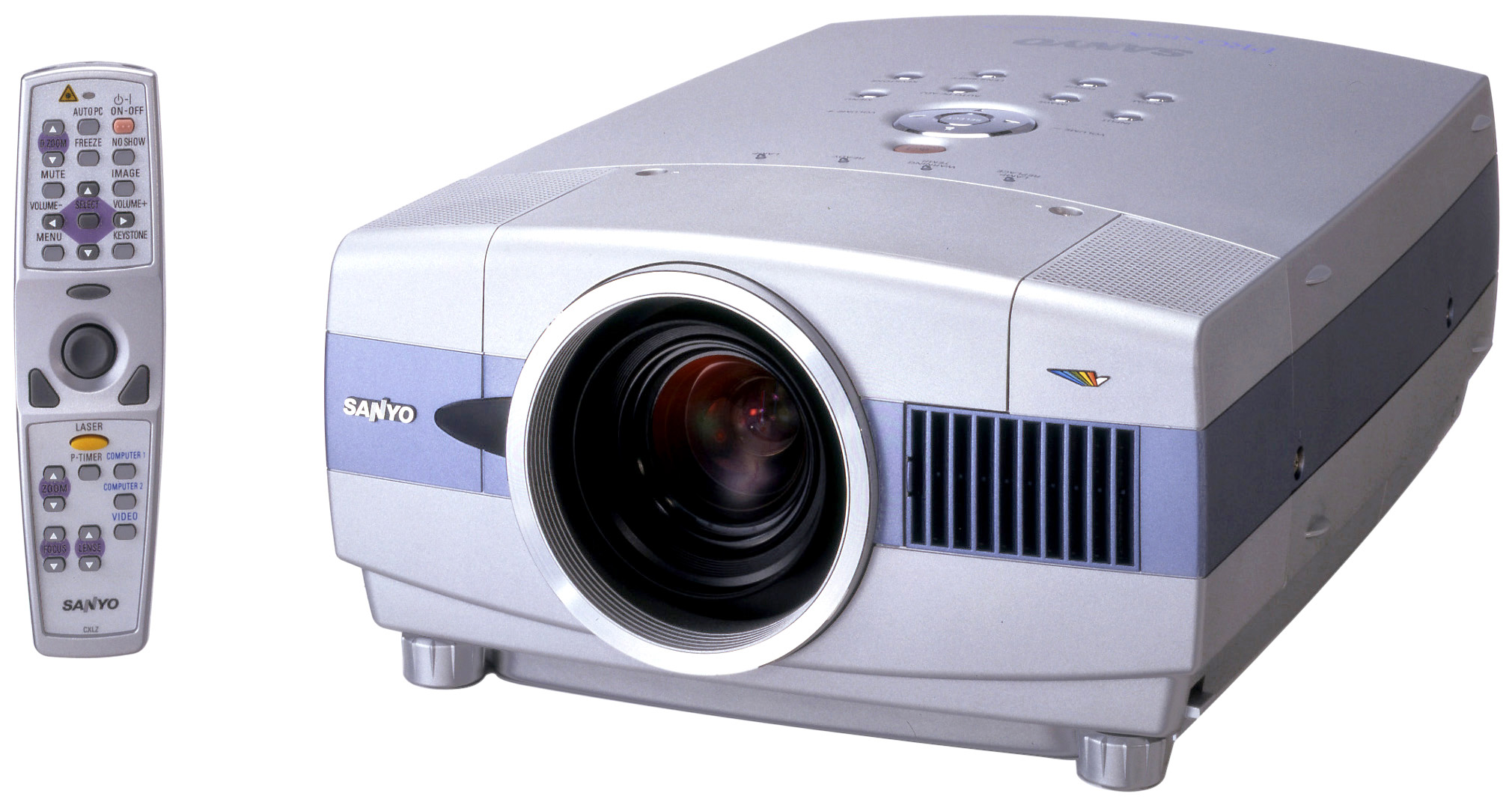

 The Sanyo PLC XT11 LCD projector has 2750 Ansi lumens, a contrast of 700:1 and an XGA 1024 x 768 resolution. The projector also offers an integrated media player that can be used to play files directly. The projector also offers a lens shift function that makes image adjustment childs play. The projector can illuminate an image width of up to 457 cm thanks to its 2750 Ansi lumens. In room lighting, however, the picture width should ideally be less than 305 cm. The model was built by Sanyo in 2003 and is no longer current.
Display Type 3 x 1,0" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 2750
Screen
 917 Lux (200 cm Screen width)
Contrast 700:1 full on/off 700:1 full on/off
Black Level 3,9286 min. Lumen 1,316 min. Lumen
Lens shift Vert.: +50% -0%
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes PAL, SECAM, NTSC, NTSC4.43, PAL-M/N HDTV 1080i, 720p 480p 1035i
Media player formats: BMP JPEG
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with little light, max. 100 lumens.
Light Source 250W UHP Lamp
Article Nr.: 610 305 5602
Light Life 2000 h.
Operating Costs -
248 - 322 cm



Lux: 917 Lux
Room light max.: 183 Lux
Candela pro m²: 291 cd/m²
Foot-Lamberts: 85 fL
75 cm


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 1
Objective LNS-W10
Throw Ratio 1,24-1,61:1
Audio 2 x 2W
Connections DVI-I
D-Sub15 pin in und out
YUV in
Cinch Video in
2 x Mini Jack in
RS232C Mini- DIN8 pin
USB Type B
Ceiling Mounting Yes, is possible.
Power 350W
Size WxHxD 302 x 162 x 422 mm (11,9"x6,4"x16,6") 20,65 L/dm³
Operating Noise 31dB
Key: 208 cm
Shift: 75 cm
Key: 44 cm
Key: 44 cm
Key: 208 cm
Weight 7,80 kg / 17,2 lbs.
Keystone Vert.: +/-40°
Hori.: +/-10°
Illumination 90%
Frequenz H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 180 MHz
Foot-Lamberts 85 fL / max. 457 cm screen width
291 cd/m²
Features Lens shift Funktion
Integrated Mediaplayer
Freeze
Eco Mode
Kensington Slot
Gamma correction
Remote control with laser pointer und mouse control
De-interlacer with 3-2 pull-down
Digital zoom 49x
SD memory card slot optional
Wireless LAN optional
Screen Mirroring -
In Comparison
The Sanyo PLC XT11 compared to others not current "Stationary" projectors.
Ansi-Lumen:
26 Weight:
99
Contrast:
1 dB:
96
Black level:
88 Power cons.:
97
Picture Total Points:38 Projector Total Points:97
Popularity Top 100
16 popularity points 30 popularity points 21 popularity points 19 popularity points 26 popularity points 18 popularity points
Points:
18
Ranking: 1490 (From: 2514)
Optional accessories

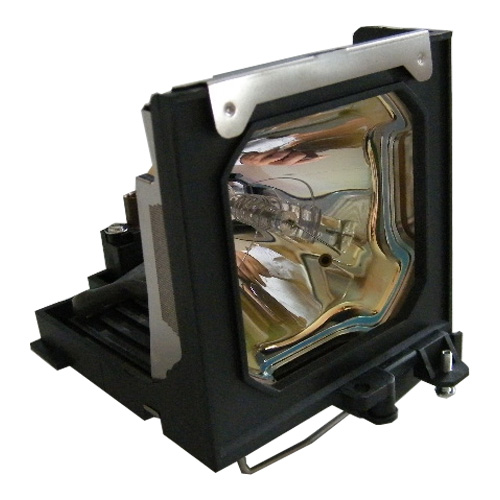

Nackte Osram Lampe NLMP3436104,67 €
Lampe Ruby Ruby-LMP3436117,83 €
Lampe Original610-305-5602 / LMP59 / ET-SLMP59EOL €
Kompatible Lampe LMP-K137468,06 €
Universal Fernbedienung Fernb-uni-V322,31 €
Fernbedienung Original945 064 8787 / CXLZ CXRDEOL €
Luftfilter Original610 307 6331EOL €
Deckenhalterung 100-120 Halterung10047,86 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
Sanyo LNS-W10 1.24-1.61:12.5-3.2 m 50% Powered
Sanyo LNS-T10 2.12-3.46:14.2-6.9 m 50% Powered
Status 2003 Discontinued (EOL) // Last update of the data: 2023-08-04
Data
Sanyo Website

Projektor Sanyo PLC XT11 User Manual english (1.19 MB)
Press release english
Product Sheet english
Product Sheet USA
Product Sheet UK
Product Sheet english HC
