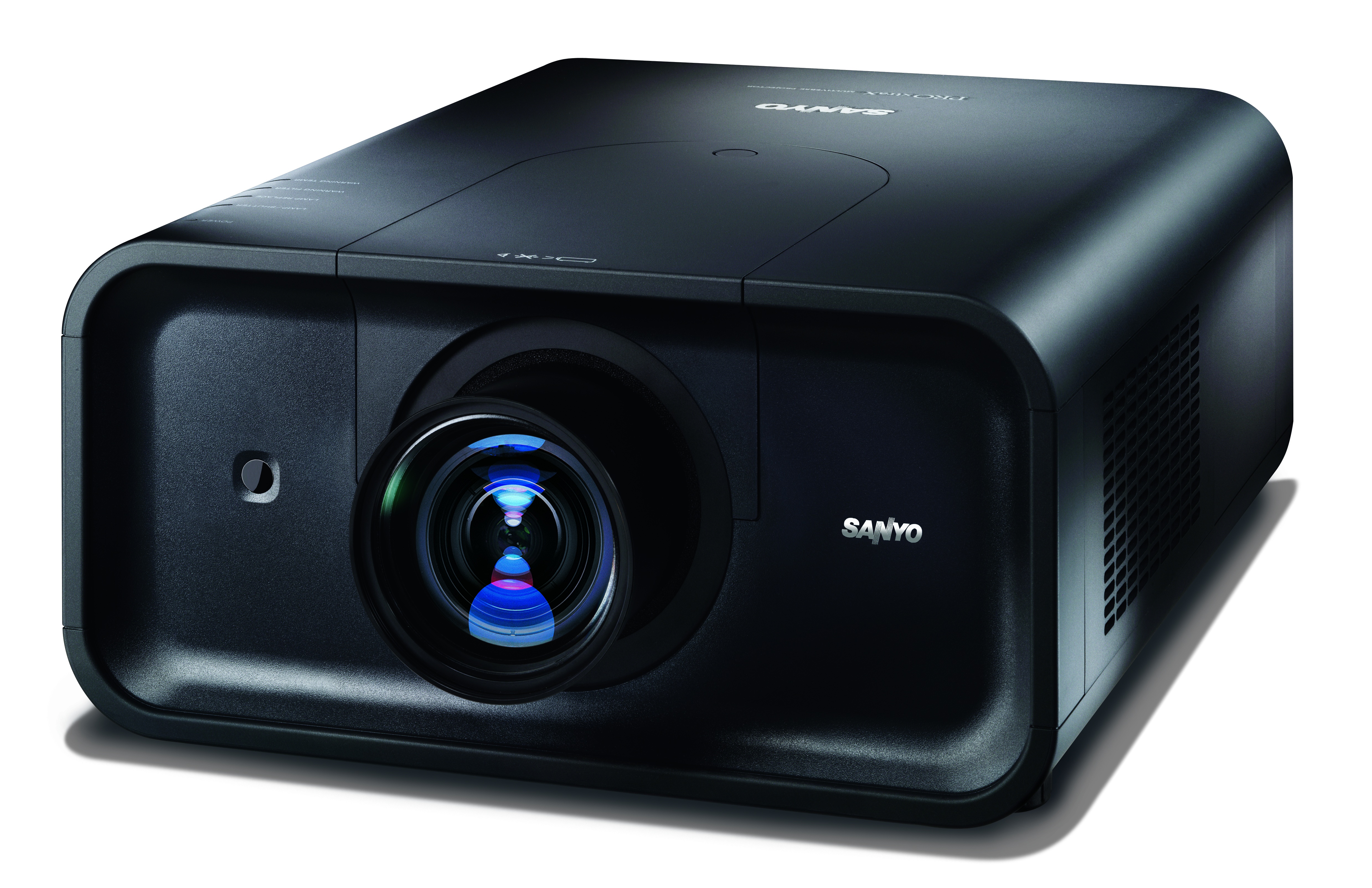

Sanyo PLC HP7000L
Sanyo LP HP7000L
Brief Introduction
Beta 2.5
 The Sanyo PLC HP7000L LCD projector has 7000 Ansi lumens, a contrast of 2700:1 and an HDTV 1920 x 1080 resolution. The projector also offers a lens shift function that makes image adjustment childs play. The projector can illuminate images up to 850 cm wide thanks to its 7000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 567 cm. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Even 1080P video signals are no problem for the projector. Even projection onto the ceiling is possible thanks to the 360° projection. The model built in 2011 is no longer offered by Sanyo.
Display Type 3 x 1,2" LCD TFT Panel
HDTV 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
 7000 / 5400 im Eco Mode
Screen
 3111 Lux (200 cm Screen width)
Contrast 2700:1 full on/off 2700:1 full on/off
Black Level 2,5926 min. Lumen 1,153 min. Lumen
Lens shift Vert.: +50% -0% Hori.: +/-10%
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 380W NSH Lamp
Article Nr.: 610-357-0464
Light Life 2000 h. 3000 h. in Eco Mode
Operating Costs -
260 - 360 cm



Lux: 3111 Lux
Room light max.: 622 Lux
Candela pro m²: 990 cd/m²
Foot-Lamberts: 289 fL
56 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 1,38
Objective optional
Throw Ratio 1,3-1,8:1
Audio Nein
Connections HDMI 1.3b
DVI-D
D-sub 15 pin in und out
5 x BNC RGBHV in
S-Video in
Cinch Video in
RJ45 in
USB Typ B
RS232C
Ceiling Mounting Yes, is possible.
Power 500 / 410W in Eco Mode
Size WxHxD 370 x 187 x 439 mm (14,6"x7,4"x17,3") 30,37 L/dm³
Operating Noise 42 / 38 dB in Eco Mode
Key: 150 cm
Shift: 56 cm
Key: 150 cm
Shift: 20 cm
Key: 150 cm
Shift: 20 cm
Key: 150 cm
Weight 11,60 kg / 25,57 lbs.
Keystone Vert.: +/-30°
Hori.: +/-30°
Illumination 90%
Frequenz H-sync: 15-120 kHz
V-sync: 48-100 Hz
Foot-Lamberts 289 fL / max. 850 cm screen width
990 cd/m²
Features Full HD 1080P compatible
Direkt Power Off
Lens shift Funktion
Freeze
User logo
Eco Mode
Kensington Slot
360° installable
Edge Blending
Picture-in-Picture
Lan network compatible.
Digital zoom
- and picture-in-picture function
Inorganic LCD panels and QuaDrive® technology
Screen Mirroring -
In Comparison
The Sanyo PLC HP7000L compared to others not current "Stationary" projectors.
Ansi-Lumen:
69 Weight:
97
Contrast:
1 dB:
93
Black level:
92 Power cons.:
94
Picture Total Points:54 Projector Total Points:95
Popularity Top 100
29 popularity points 47 popularity points 39 popularity points 37 popularity points 54 popularity points 27 popularity points
Points:
27
Ranking: 876 (From: 2514)
Optional accessories
Lampe Ruby Ruby-LMP20676237,44 €
Lampe Original610-357-0464 / LMP149 / ET-SLMP149EOL €
Luftfilter Kompatibel Alternative zu:POA-FIL-100 / 610 342 9571 / ET-SFYL100 / 003-003965-0168,72 €
Objektiv OriginalET-SS32 / LNS-S32EOL €
Objektiv OriginalET-ST32 / LNS-T32EOL €
Objektiv OriginalET-ST33 / LNS-T33EOL €
Objektiv OriginalET-ST34 / LNS-T34EOL €
Objektiv OriginalET-SW33 / LNS-W33EOL €
Objektiv OriginalET-SW34 / LNS-W34EOL €
Universal Fernbedienung Fernb-uni-V322,31 €
Luftfilter OriginalPOA-FIL-100 / 610 342 9571 / ET-SFYL100 / 003-003965-01EOL €
Deckenhalterung 220 Halterung4583,60 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
LNS-W33 1.3-1.8:12.6-3.6 m 50% +/-10% Powered
LNS-T34 2.3-4.2:14.6-8.4 m 50% +/-10% Powered
LNS-T33 5.7-9:111.4-18 m 66.67% +/-10% Powered
LNS-T32 4.2-6:18.4-12 m 66.67% +/-10% Powered
LNS-S32 1.8-2.3:13.6-4.6 m 50% +/-10% Powered
Fix Optional Lenses
LNS-W34 0.8:1 1.6 m 0.0% Fix No Zoom
Status 2011 Discontinued (EOL) // Last update of the data: 2025-03-03
Data
Sanyo Website

Projektor Sanyo PLC HP7000L User Manual english (19.33 MB)
Product Sheet english
Product Sheet english HC
More Details
