Panasonic PT-MZ780 /E/U/J/L
Panasonic PT-MZ780J | Panasonic PT-MZ780E | Panasonic PT-MZ780U | Panasonic PT-MZ780JL | Panasonic PT-MZ780EL | Panasonic PT-MZ780UL | Panasonic PT-MZ780LB | Panasonic PT-MZ780WU
Brief Introduction
Beta 2.5

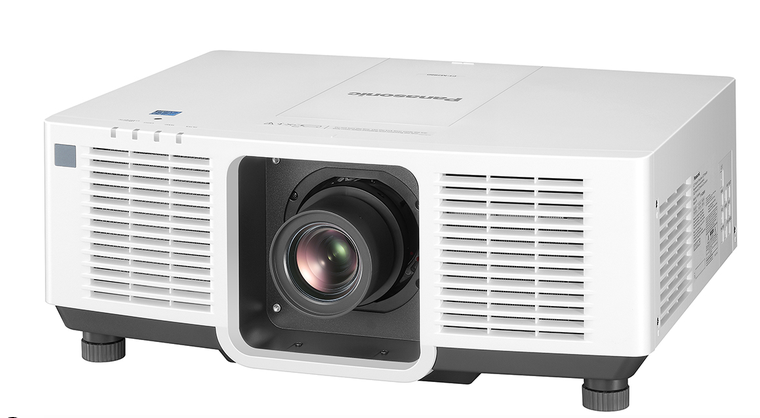

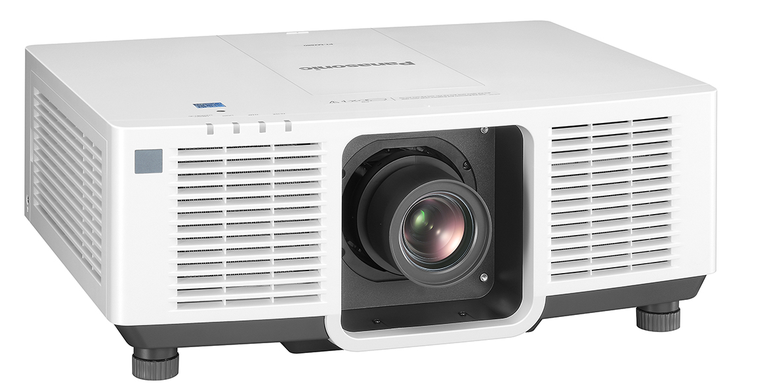

 The Panasonic PT-MZ780 /E/U/J/L 3D laser LCD projector has 7000 Ansi lumens, a contrast of 3000000:1 and a WUXGA 1920 x 1200 resolution. Due to the laser, the projector is specified with 20000 hours of light life, which converts to over 13.7 years at 4 hours per day. Includes a lens shift and keystone correction function, which provides freedom during installation. 7000 Ansi lumens ensure that a picture width of 850 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 567 cm. Video signals 1080P and 3D are also no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. It was launched in 2021 and is no longer offered by the manufacturer Panasonic.
Display Type 3 x 0,76" LCD TFT Panel
WUXGA 16/9 Liquid Crystal Display
Ansi-Lumen
Projector
 7000
Screen
 3111 Lux (200 cm Screen width)
Contrast 3000000:1 3000000:1
Black Level 0,0023 min. Lumen 0,001 min. Lumen
Lens shift Vert.: +/-67% Hori.: +/-35%
Resolution WUXGA 1920 x 1200
2.304.000 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
3D Compatibility Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready)
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source Laser
Article Nr.: N2QAYA000228
Light Life 20000 h.
Operating Costs 0,00 € Laser
888 - 1424 cm



Lux: 3111 Lux
Room light max.: 622 Lux
Candela pro m²: 990 cd/m²
Foot-Lamberts: 289 fL
75 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 1,75
Objective optional
Throw Ratio 4,44-7,12:1
Audio 10W Mono

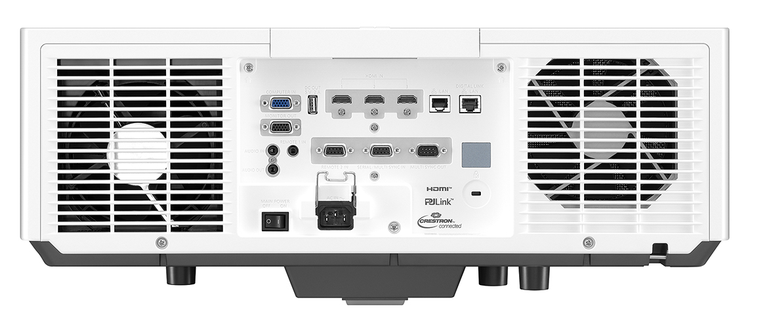

Connections 3 x HDMI in
D-sub 15pin in und out
Mini Jack Audio in und out
USB Typ A in
RS232C Din 9 pin in und out
2 x RJ45 in
Ceiling Mounting Yes, is possible.
Power 450W
Size WxHxD 560 x 205 x 443 mm (22"x8,1"x17,4") 50,86 L/dm³
Operating Noise 32 / 26 dB in Eco Mode
Key: 513 cm
Shift: 75 cm
Key: 414 cm
Shift: 70 cm
Key: 414 cm
Shift: 70 cm
Key: 513 cm
Shift: 75 cm
Weight 18,60 kg / 39,68 lbs.
Keystone Vert.: +/-30°
Hori.: +/-25°
Illumination 90%
Frequenz H-sync: 15-91 kHz
V-sync: 24-100 Hz
Range max.: 162 MHz
Foot-Lamberts 289 fL / max. 850 cm screen width
990 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
Eco Mode
360° installable
24/7 continuous operation capable
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
DICOM simulation
Model PT-MZ770LB is with black housing.
Screen Mirroring -
In Comparison
The Panasonic PT-MZ780 /E/U/J/L compared to others not current "Stationary" projectors.
Ansi-Lumen:
69 Weight:
93
Contrast:
60 dB:
96
Black level:
100 Power cons.:
95
Picture Total Points:76 Projector Total Points:95
Popularity Top 100
59 popularity points 66 popularity points 39 popularity points 36 popularity points 48 popularity points 51 popularity points
Points:
51
Ranking: 127 (From: 2514)
Optional accessories
Universal Fernbedienung Fernb-uni-V322,31 €
Filter OriginalET-RFM10093,43 €
Deckenhalterung OriginalET-PKD120SEOL €
Deckenhalterung OriginalET-PKD120HEOL €
Objektiv OriginalET-ELW22 / LNS-W222.071,96 €
Objektiv OriginalET-ELW21 / LNS-W211.247,54 €
Objektiv OriginalET-ELW20 / LNS-W201.563,52 €
Objektiv OriginalET-ELU207.686,86 €
Objektiv OriginalET-ELT23 / LNS-T231.090,06 €
Objektiv OriginalET-ELT22 / LNS-T221.090,06 €
Objektiv OriginalET-ELS20 / LNS-S20694,40 €
Deckenhalterung 220 Halterung4583,60 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
ET-ELW22 0.79-0.98:11.6-2 m
ET-ELW20 1.21-1.66:12.4-3.3 m +/-67% +/-35% Powered
ET-ELU20 0.33-0.35:10.7-0.7 m Powered
ET-ELT23 4.44-7.12:18.9-14.2 m +/-67% +/-35% Powered
ET-ELT22 2.72-4.48:15.4-9 m +/-67% +/-35% Powered
ET-ELS20 1.61-2.76:13.2-5.5 m +/-67% +/-35% Powered
Fix Optional Lenses
ET-ELW21 0.76:1 1.5 m 0.00% Fix No Zoom
Status 2021 Discontinued (EOL) // Last update of the data: 2024-10-02
Created:
Data
Panasonic Website

Projektor Panasonic PT-MZ780 /E/U/J/L Projektor Panasonic PT-MZ780 /E/U/J/L Projektor Panasonic PT-MZ780 /E/U/J/L User Manual english (34.29 MB)
Product Sheet english
Product Sheet english HC
More Details
    https://www.projector-database.com/pro/panasonicptmz780-en.html
Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
