JVC DLA RS48/U
JVC DLA-RS48U
Brief Introduction
Beta 2.5

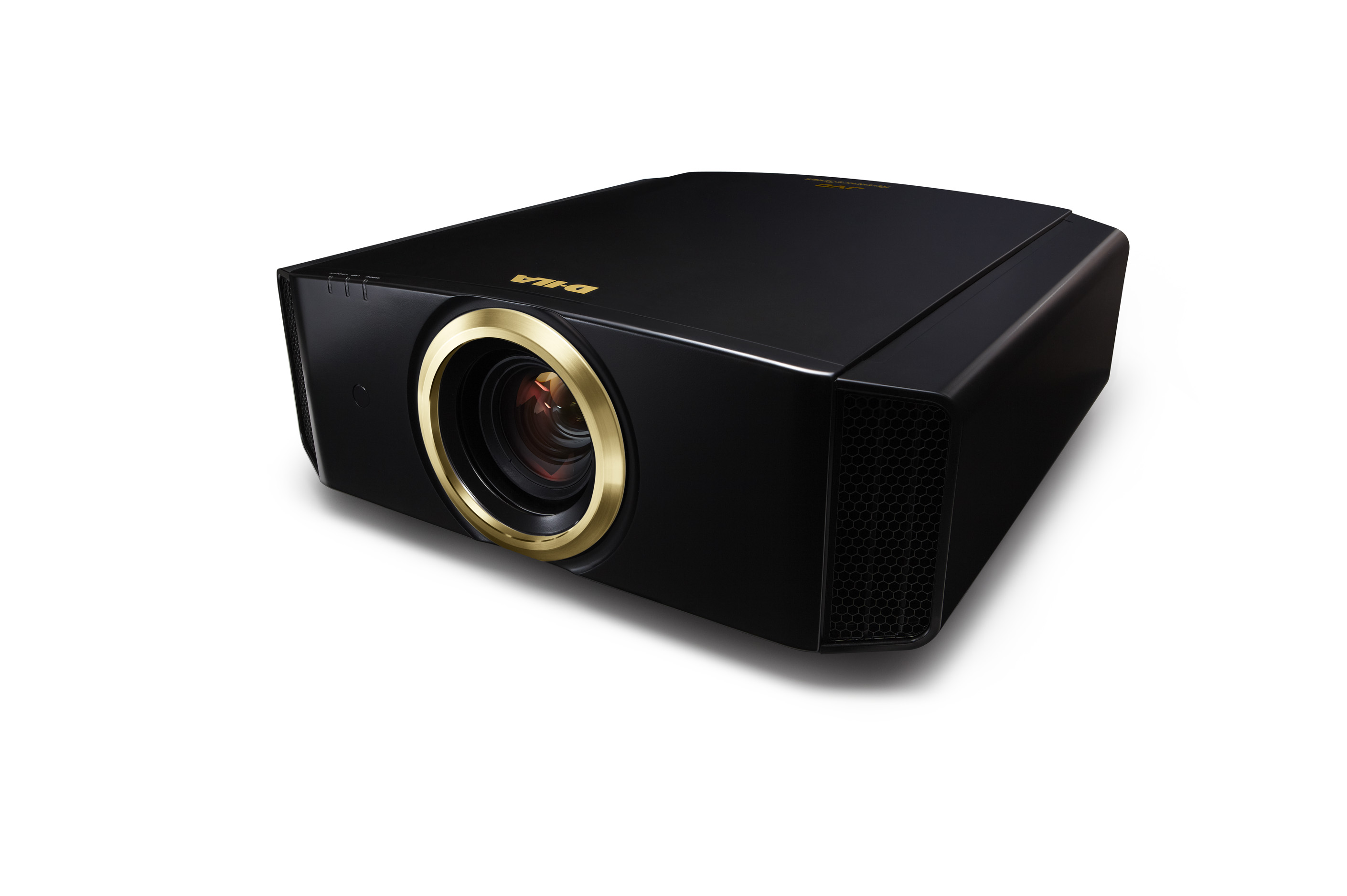

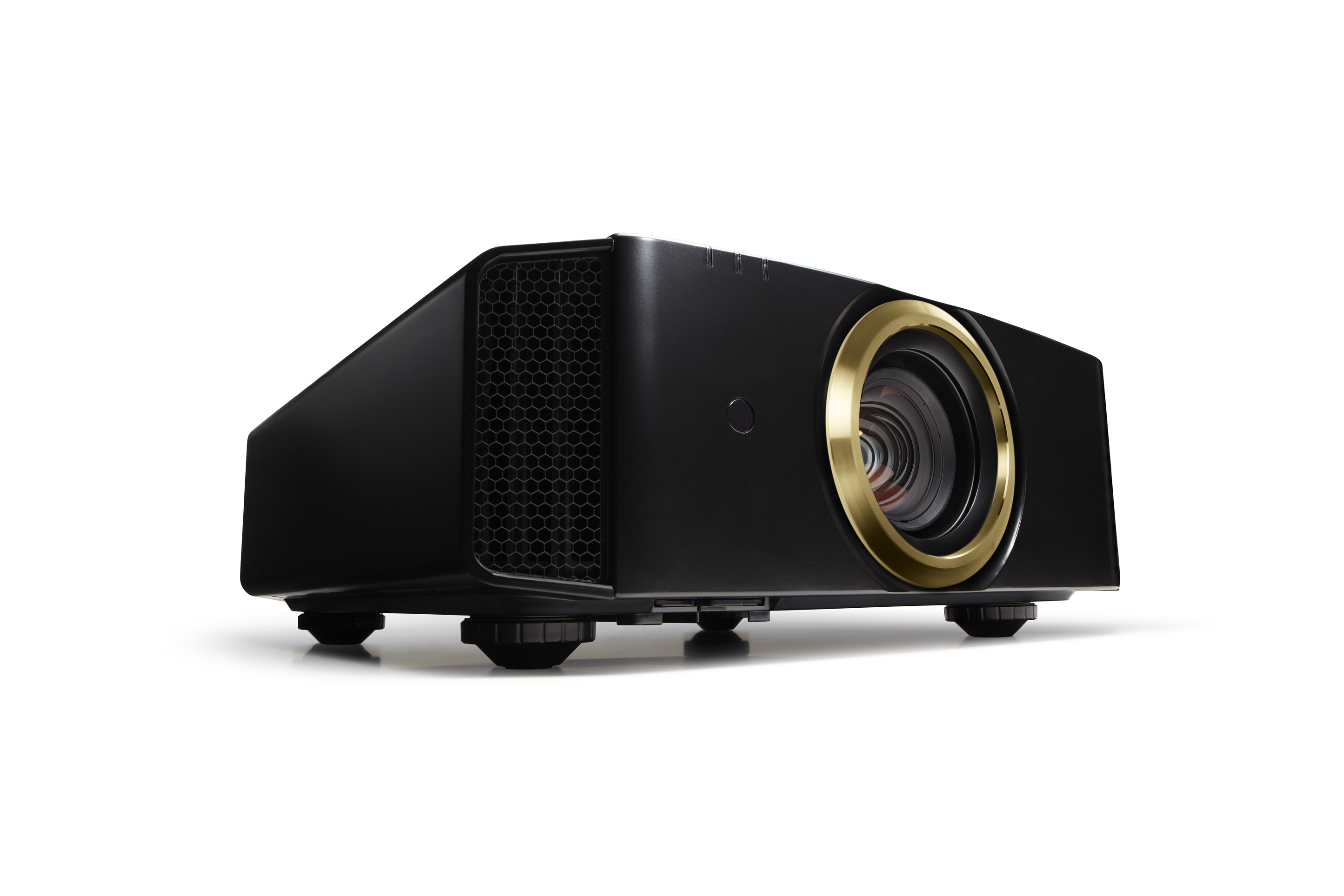

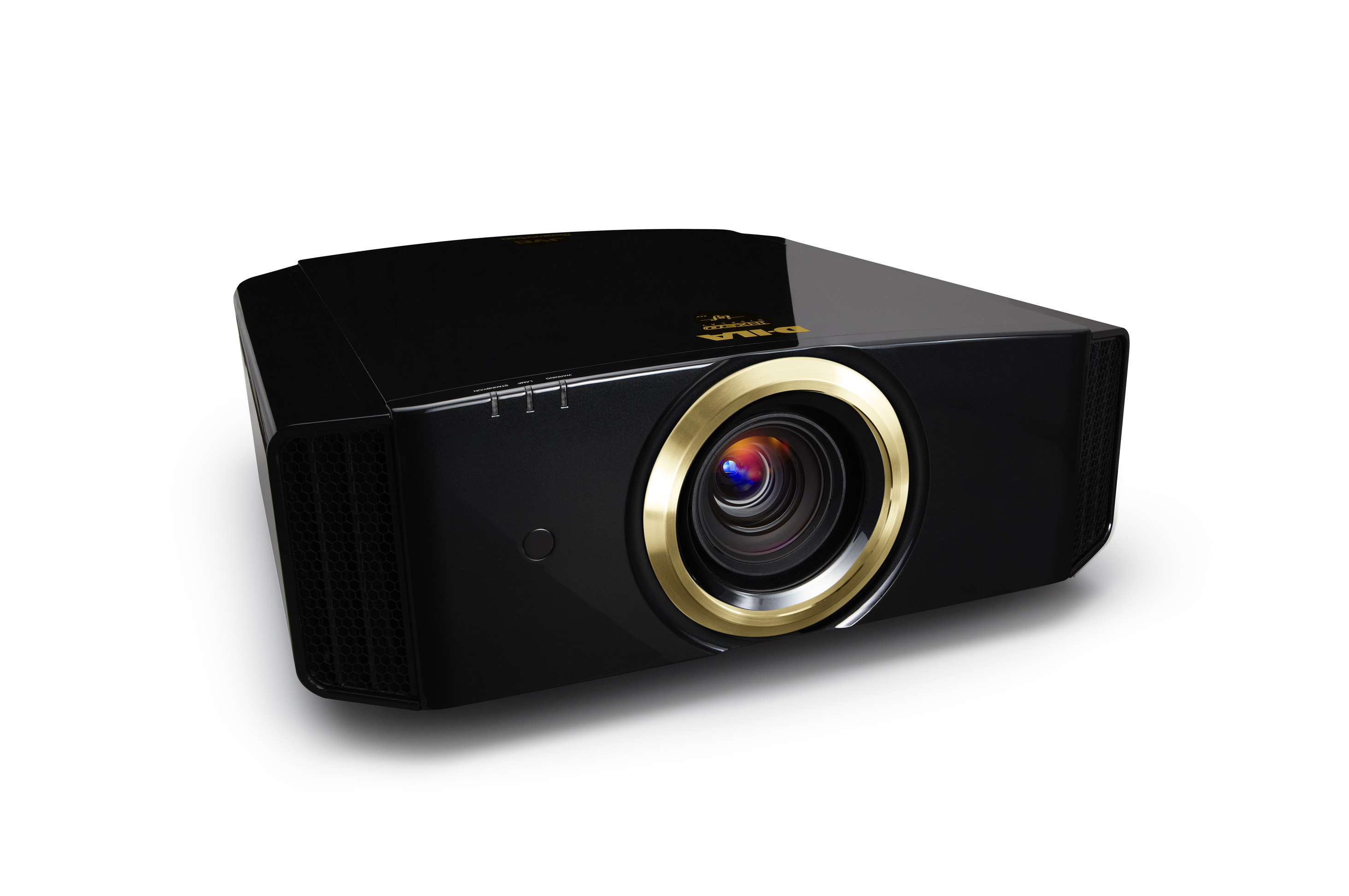

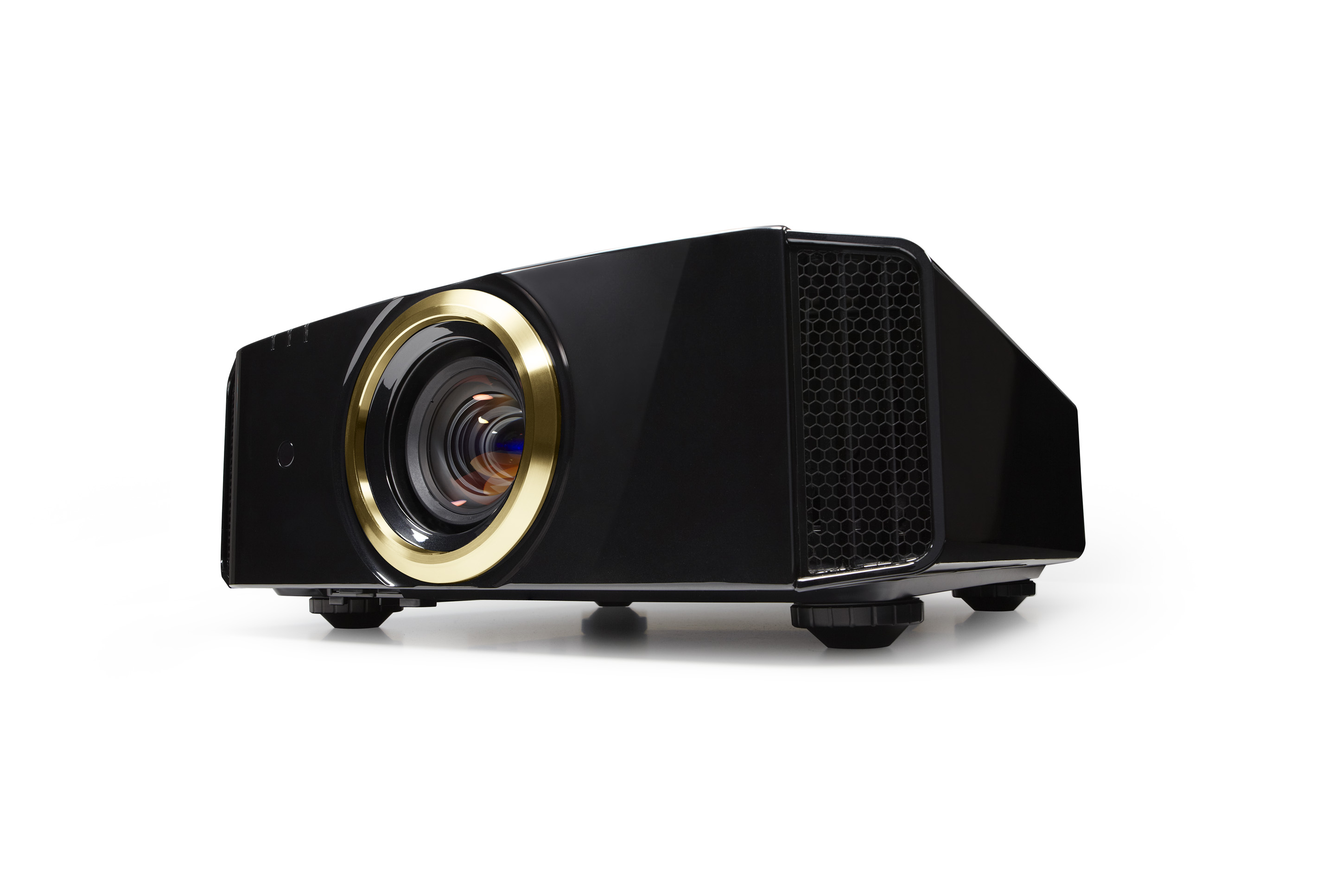

 A brief introduction to the DLA RS48/U: The JVC High-End Homecinema 3D DILA projector offers 1300 Ansi-Lumen, a contrast of 50000:1 and a HDTV 1920 x 1080 resolution. The built-in lens shift function provides freedom when setting up. The projector can illuminate a picture width of up to 366 cm thanks to the 1300 Ansi lumens. In room light, however, the picture width should ideally be less than 244 cm. It is also Full HD 1080P and 3D compatible. The projector is very quiet compared to others with an operating noise of 20 decibels. The projector was launched in 2012 and is no longer sold by the manufacturer.
Display Type 3 x 0,7" DILA Chip
HDTV 16/9 Direct-Drive Image Light Amplification (D-ILA)
Ansi-Lumen
Projector
 1300
Screen
 578 Lux (200 cm Screen width)
Contrast 50000:1 full on/off 50000:1 full on/off
Black Level 0,0260 min. Lumen 0,012 min. Lumen
Lens shift Vert.: +/-80% Hori.: +/-34%
Resolution HDTV 1920 x 1080
2.073.600 Pixel
Video Modes Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 3D, EDTV 480p, 576p
Disc Recognition DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray
3D Compatibility
Frame-Packing (Full HD 3D) | Side-by-Side | Top-and-Bottom
Frame Sequential (3D Ready) | 2D-zu-3D Video Converter
Application High-End Homecinema | Small screen width, rooms with very little ambient light below 100 lumens.
Light Source 220W UHP Lamp
Article Nr.: PK-L2312UP
Light Life 3000 h.
Operating Costs
| cheap costly |
1
  20,9% / 0,14 €
280 - 560 cm



Lux: 578 Lux
Room light max.: 116 Lux
Candela pro m²: 185 cd/m²
Foot-Lamberts: 54 fL
90 cm


16/9 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 2
Objective -
Throw Ratio 1,4-2,8:1
Audio Nein
Connections 2 x HDMI 1.4a
YUV in
RS232C
RJ45 in
12V Trigger out
Ceiling Mounting Yes, is possible.
Power 360W
Size WxHxD 455 x 179 x 472 mm (17,9"x7"x18,6") 38,44 L/dm³
Operating Noise 20dB

Shift: 90 cm

Shift: 68 cm

Shift: 68 cm

Shift: 90 cm
Weight 15,40 kg / 33,95 lbs.
Keystone -
Illumination -
Frequenz -
Foot-Lamberts 54 fL / max. 366 cm screen width
185 cd/m²
Features Real Full HD 3D
Full HD 1080P compatible
Lens shift Funktion
sRGB
Gamma correction
Remote control with backlight
Lan network compatible.
Integrated automatic lens protection
Model ‘B’ is black.
Model ‘W’ is white.
Screen Mirroring -
In Comparison
The JVC DLA RS48/U compared to others not current "High-End Homecinema" projectors.
Ansi-Lumen:
9 Weight:
71
Contrast:
3 dB:
97
Black level:
99 Power cons.:
88
Picture Total Points:37 Projector Total Points:85
Popularity Top 100
16 popularity points 27 popularity points 17 popularity points 21 popularity points 23 popularity points 10 popularity points
Points:
10
Ranking: 440 (From: 499)
Optional accessories
Nackte Philips Lampe NLMP23601117,62 €
Lampe Ruby Ruby-LMP23601113,41 €
Lampe OriginalPK-L2312U / PK-L2312UG405,49 €
Kompatible Lampe LMP-K2155250,94 €
Deckenhalterung 220 Halterung4583,60 €
Status 2012 Discontinued (EOL) // Last update of the data: 2025-03-03
Data
JVC Contact

Projektor JVC DLA RS48/U Projektor JVC DLA RS48/U Projektor JVC DLA RS48/U Projektor JVC DLA RS48/U User Manual english (4.78 MB)
Product Sheet english
Product Sheet english HC
More Details
    https://www.projector-database.com/pro/jvcdlars48-en.html
Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
