Hitachi CP-X8800W
Brief Introduction
Beta 2.5
 With the CP-X8800W, manufacturer Hitachi offers a stationary LCD projector with resolution and a contrast of 10000:1. Horizontal and vertical keystone correction makes setting up the image childs play. The projector can illuminate an image width of up to 779 cm thanks to its 8000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 519 cm is recommended. In the event that the image is still too small, the projector offers integrated edge blending software, which allows several projectors to project a large image together. Even 1080P video signals are no problem for the projector, which can even project Blu-rays onto the ceiling thanks to 360° projection. It was launched in 2016 and is no longer offered by the manufacturer Hitachi.
Display Type 3 x 0,63" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 8000
Screen
 2667 Lux (200 cm Screen width)
Contrast 10000:1 full on/off 10000:1 full on/off
Black Level 0,8000 min. Lumen 0,267 min. Lumen
Lens shift Vert.: +40% -0% Hori.: +/-10%
Resolution XGA 1024 x 768 786.432 Pixel
UXGA 1600 x 1200 compressed
Video Modes PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 430W Lamp
Article Nr.: DT01881
Light Life 2000 h. 4000 in Eco Mode
Operating Costs
| cheap costly |
1
  6,71% / 0,22 €
500 - 1000 cm



Lux: 2667 Lux
Room light max.: 533 Lux
Candela pro m²: 850 cd/m²
Foot-Lamberts: 248 fL
60 cm


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 2
Objective LL-704
Throw Ratio 2,5-5,0:1
Audio 2 x 8W

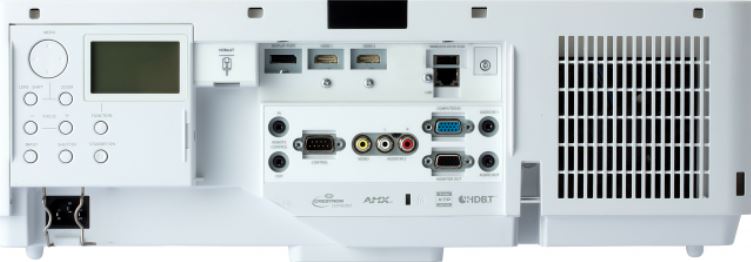

Connections 2 x HDMI in
D-sub 15 pin in und out
Cinch Video in
Cinch Stereo in
USB Typ A in
Mini Jack Audio in und out
RS232C Din 9 pin
RJ45 in
HDBaseT in
Ceiling Mounting Yes, is possible.
Power 580 / 560W
Size WxHxD 498 x 135 x 396 mm (19,6"x5,3"x15,6") 26,62 L/dm³
Operating Noise 39 / 33 dB in Eco Mode
Key: 44 cm
Shift: 60 cm
Key: 44 cm
Shift: 20 cm
Key: 44 cm
Shift: 20 cm
Key: 44 cm
Weight 8,30 kg / 18,3 lbs.
Keystone Vert.: +/-5°  automatisch
Hori.: +/-5°
Illumination -
Frequenz H-sync: 31,5-106 kHz
V-sync: 56-120 Hz
Foot-Lamberts 248 fL / max. 779 cm screen width
850 cd/m²
Features Full HD 1080P compatible
Lens shift Funktion
Freeze
Blackboard Modus
User logo
Eco Mode
Automatic and manual vertical keystone correction
Kensington Slot
Digital image shift
Warping
360° installable
Edge Blending
Picture-in-Picture
Password protection
PJLink™
Optional Wi-Fi network compatible.
Lan network compatible.
Crestron®-Software compatible.
Picture beside picture
DICOM support
Status Monitor
Screen Mirroring -
In Comparison
The Hitachi CP-X8800W compared to others not current "Stationary" projectors.
Ansi-Lumen:
80 Weight:
99
Contrast:
1 dB:
94
Black level:
98 Power cons.:
93
Picture Total Points:60 Projector Total Points:95
Popularity Top 100
22 popularity points 32 popularity points 23 popularity points 27 popularity points 33 popularity points 24 popularity points
Points:
24
Ranking: 1044 (From: 2514)
Optional accessories

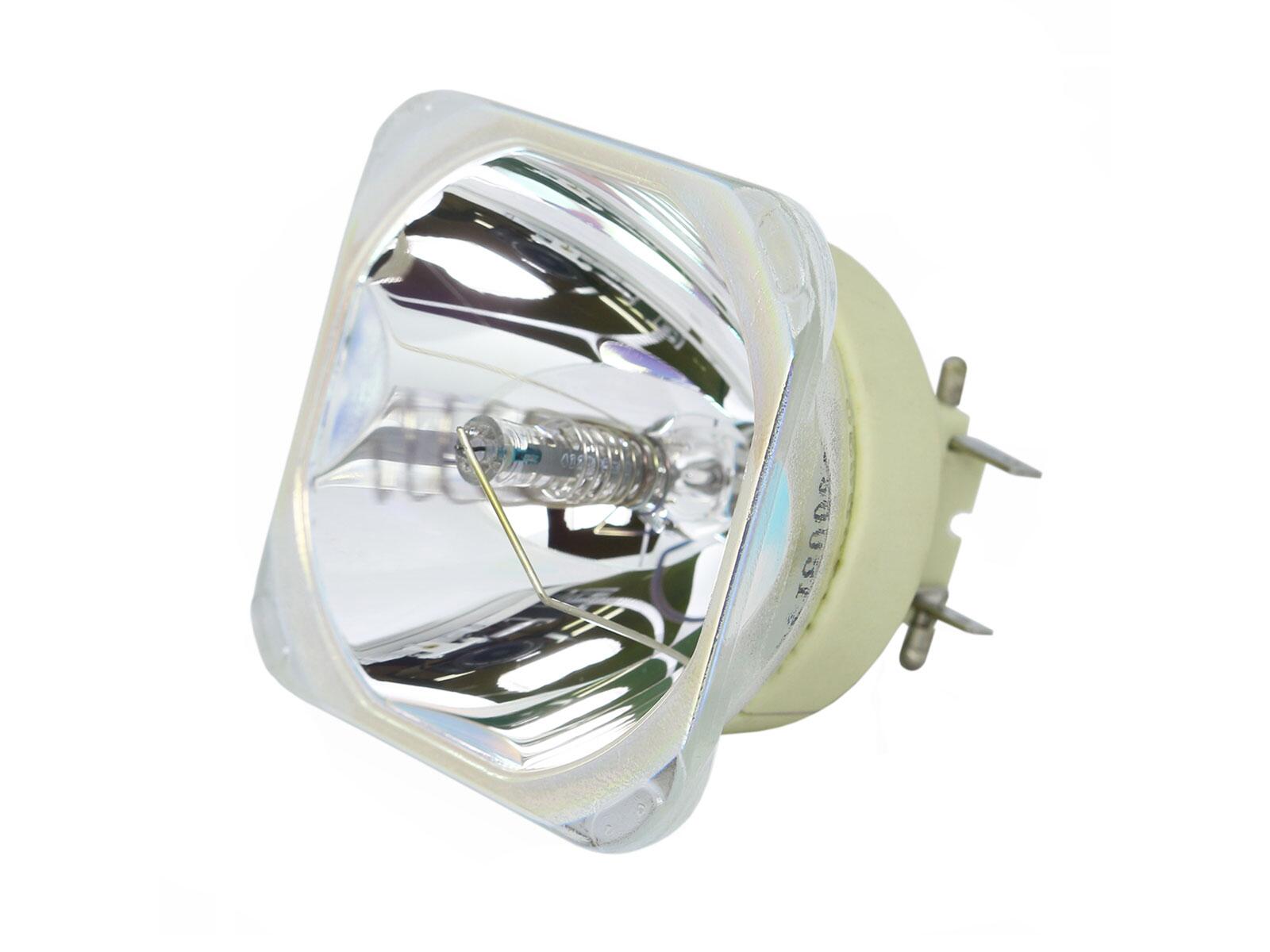

Nackte Philips Lampe NLMP23932181,17 €
Lampe Ruby Ruby-LMP23932269,80 €
Lampe OriginalDT01881 / DT01881M438,79 €
Objektiv OriginalSL-702EOL €
Objektiv OriginalML-703EOL €
Objektiv OriginalLL-704EOL €
Objektiv OriginalFL-701EOL €
Universal Fernbedienung Fernb-uni-V322,31 €
Fernbedienung OriginalHL02805 / R10346,71 €
Fernbedienung OriginalHL02805 / R10346,71 €
Luftfilter Kompatibel Alternative zu:UX40821 / 003-005339-0149,09 €
Filter OriginalUX40821 / 003-005339-01EOL €
Deckenhalterung 220 Halterung4583,60 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
SL-702 1.2-1.8:12.4-3.6 m 40% +/-10% Powered
ML-703 1.5-3:13-6 m 50% +/-10% Powered
LL-704 2.5-5:15-10 m 40% +/-10% Powered
Fix Optional Lenses
FL-701 0.8:1 1.6 m 0.0% Fix No Zoom
Status 2016 Discontinued (EOL) // Last update of the data: 2023-08-04
