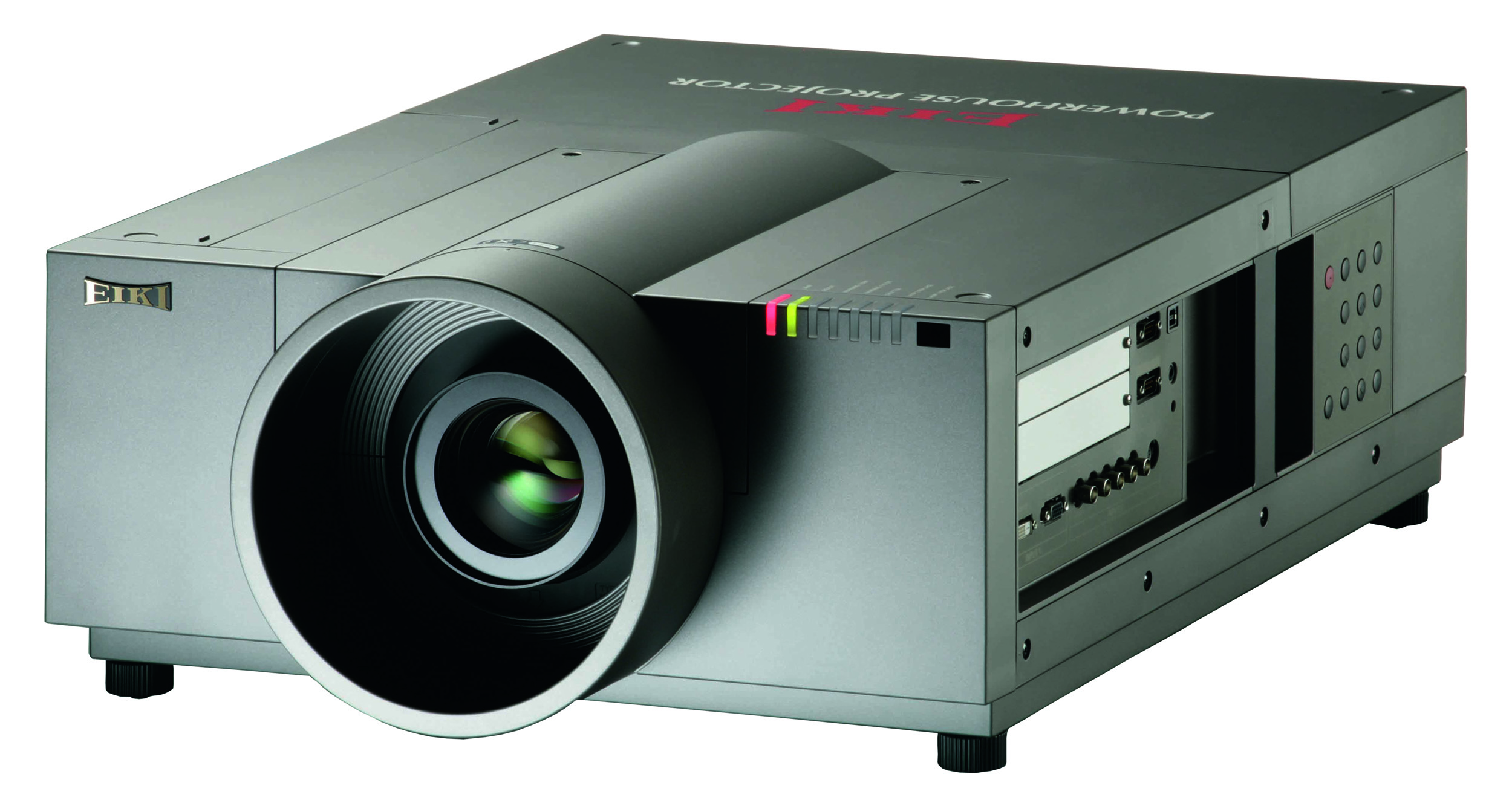

PDF/Print Version: Eiki LC X800 Projector

Brief Introduction

Beta 2.5

A brief introduction to the LC X800: The Eiki large-format LCD projector offers 12000 Ansi lumens, a contrast of 3000:1 and an XGA 1024 x 768 resolution. With the lens shift function, the projector can be positioned very freely. The projector can illuminate images up to 954 cm wide thanks to the 12000 Ansi lumens. The projector can create rooms with residual light with a smaller image width, we recommend a maximum of 636 cm. Playing 1080P is also no problem for the projector. The projector was launched in 2010 and is no longer sold by the manufacturer, but is still very popular in our projector database.

Display Type

3 x 1,8" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

12000 / 5000 im singel Lamp Mode

Screen

4000 Lux (200 cm Screen width)

Contrast

3000:1 full on/off

Black Level

4,0000 min. Lumen

1,335 min. Lumen

Lens shift

Vert.: +/-40% Hori.: +/-10%

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p

Application

Event | Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

2 x 330W NSHA Lamp
Article Nr.: 610 334 2788

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

1216 - 1764 cm


	Lux:	4000 Lux
	Room light max.:	800 Lux
	Candela pro m²:	1275 cd/m²
	Foot-Lamberts:	372 fL

60 cm

Focus

Powered

Zoom

Powered 1,45

Objective

optional

Throw Ratio

6,08-8,82:1

Audio

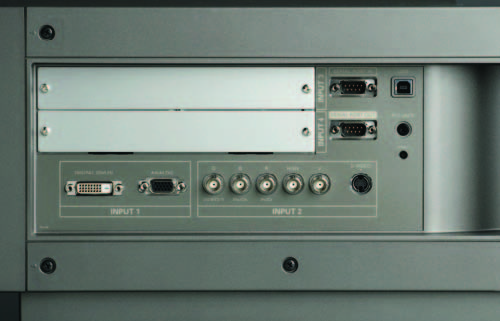

Connections

DVI-D mit HDCP in
5 x BNC RGBHV in
RS232C Din 9 pin in
Weitere Anschlüsse optional.

Ceiling Mounting

Yes, is possible.

Power

950 / 780W in Eco Mode

Size WxHxD

530 x 267,5 x 757 mm (20,9"x10,5"x29,8") 107,12 L/dm³

Operating Noise

46 / 45 dB in Eco Mode

Key: 1020 cm Shift: 60 cm
Key: 443 cm Shift: 20 cm		Key: 443 cm Shift: 20 cm
	Key: 1020 cm Shift: 60 cm

Weight

27,60 kg / 60,85 lbs.

Keystone

Vert.: +/-40°
Hori.: +/-20°

Illumination

90%

Frequenz

H-sync: 15-120 kHz
V-sync: 48-120 Hz
Range max.: 230 MHz

Foot-Lamberts

372 fL / max. 954 cm screen width

1275 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Freeze

User logo

Eco Mode

Kensington Slot

Gamma correction

Screen Mirroring

In Comparison

The Eiki LC X800 compared to others not current "Event" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

4 (From: 576)

Optional accessories

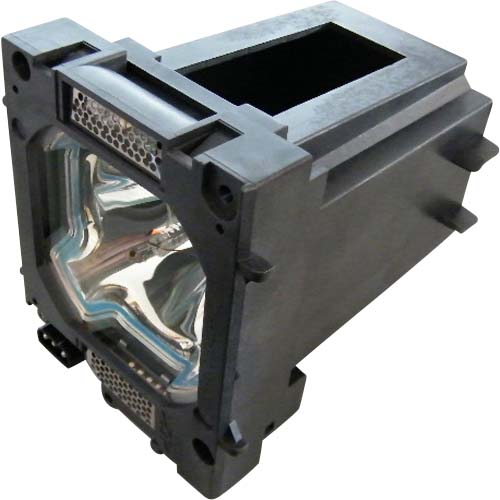

	Nackte Lampe	NLMP16853	147,98 €
	Lampe Ruby	Ruby-LMP16853	176,12 €
	Lampe Original	610-334-2788 / LMP108 / ET-SLMP108	EOL €
	Kompatible Lampe	LMP-K16853	69,53 €

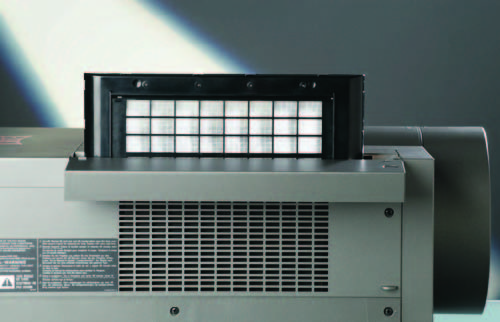

	Luftfilter Kompatibel	Alternative zu:ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	54,44 €
	Universal Fernbedienung	Fernb-uni-V3	22,31 €
	Fernbedienung Original	6450929502 / CXWH	EOL €
	Luftfilter Original	ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	EOL €
	Deckenhalterung Länge 225 mm	Halterung45	85,80 €

Standard-Lens

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
AH-32601 (W06)	1.22-1.55:1	2.4-3.1 m	+/-40%	+/-10%	Powered
AH-32581 (T03)	6.08-8.82:1	12.2-17.6 m	+/-40%	+/-10%	Powered
AH-32401 (W04)	1.55-2.03:1	3.1-4.1 m	+/-40%	+/-10%	Powered
AH-22051 (S03)	2.63-3.56:1	5.3-7.1 m	+/-40%	+/-10%	Powered
AH-21202 (W02Z)	1.42-1.84:1	2.8-3.7 m	+/-40%	+/-10%	Powered
AH-21102 (S02Z)	2.05-2.65:1	4.1-5.3 m	+/-50%	+/-10%	Powered
AH-21091 (T02)	4.29-6:1	8.6-12 m	+/-40%	+/-10%	Powered
AH-21022 (M01Z)	3.38-4.39:1	6.8-8.8 m	+/-40%	+/-10%	Powered
0001-4299	7.37-12.61:1	14.7-25.2 m	+/-40%		Manual
0001-4297	1.9-3.45:1	3.8-6.9 m	+/-40%		Manual
0001-4261	5-8.53:1	10-17.1 m	+/-40%		Manual
0001-4260	3.09-4.39:1	6.2-8.8 m	+/-40%		Manual
Fix Optional Lenses
AH-32021 (W03)	0.81:1	1.6 m	0.0% Fix		No Zoom
AH-21012 (W01Z)	1.21:1	2.4 m	+/-40%	+/-10%	No Zoom
(T01Z)	7:1	14 m	+/-40%	+/-10%	No Zoom

Status

2010 Discontinued (EOL) // Last update of the data: 2023-08-04

Data

Eiki Contact

User Manual english (7.33 MB)
Product Sheet english
Product Sheet english
Product Sheet english
Product Sheet english Lens
Product Sheet english HC

More Details


	https://www.projector-database.com/pro/eikilcx800-en.html

Due to our ongoing commitment to continuously improve the quality of our projector database, this brochure is also subject to change without notice. HCinema is not responsible for any errors or omissions contained in product descriptions.
