PDF/Print Version: Eiki LC X80 Projector

Brief Introduction

Beta 2.5

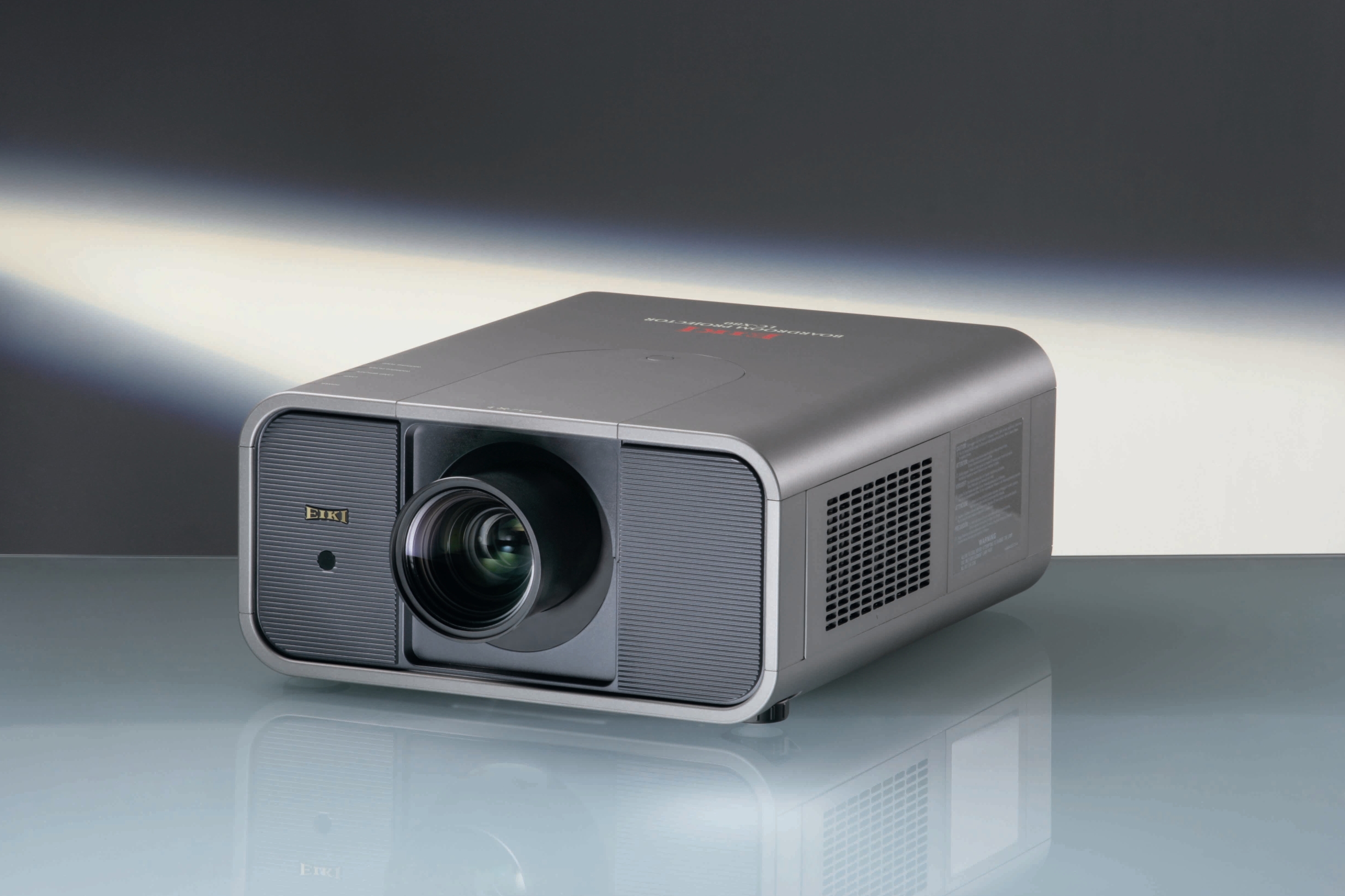

A brief introduction to the LC X80: The Eiki stationary LCD projector offers 6500 Ansi lumens, a contrast of 2000:1 and an XGA 1024 x 768 resolution. Including a lens shift and keystone correction function, which provides freedom during installation. Thanks to the brightness of 6500 Ansi lumens, an image width of 702 cm is possible. The projector can also handle slightly brighter rooms with a smaller picture width (we recommend max. 468 cm). Furthermore, the projector can play 1080P without any problems. The model built in 2007 is no longer offered by Eiki, but is still a popular projector in our database.

Display Type

3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display

Ansi-Lumen

Projector

6500

Screen

2167 Lux (200 cm Screen width)

Contrast

2000:1 full on/off

Black Level

3,2500 min. Lumen

1,085 min. Lumen

Lens shift

Vert.: +50% -0%

Resolution

XGA 1024 x 768
786.432 Pixel
UXGA 1600 x 1200 compressed

Video Modes

PAL, SECAM, NTSC, HDTV 720p, 1080i, 1080p EDTV 480p, 576p

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

330W NSH Lamp
Article Nr.: 610 334 2788

Light Life

2000 h. 3000 h. in Eco Mode

Operating Costs

364 - 474 cm


	Lux:	2167 Lux
	Room light max.:	433 Lux
	Candela pro m²:	689 cd/m²
	Foot-Lamberts:	201 fL

75 cm

Focus

Powered

Zoom

Powered 1,3

Objective

optional

Throw Ratio

1,82-2,37:1

Audio

Nein

Connections

DVI-D mit HDCP in
5 x BNC RGBHV in
D-sub 15pin in
YUV in
S-Video in
Cinch Video in
USB Typ B
RS232C Din pin in

Ceiling Mounting

Yes, is possible.

Power

490 / 392W in Eco Mode

Size WxHxD

370 x 187 x 440 mm (14,6"x7,4"x17,3") 30,44 L/dm³

Operating Noise

40 / 32 dB in Eco Mode

Key: 255 cm Shift: 75 cm
Key: 98 cm		Key: 98 cm
	Key: 255 cm

Weight

11,20 kg / 24,69 lbs.

Keystone

Vert.: +/-35°
Hori.: +/-15°

Illumination

90%

Frequenz

H-sync: 15-100 kHz
V-sync: 48-100 Hz
Range max.: 180 MHz

Foot-Lamberts

201 fL / max. 702 cm screen width

689 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Freeze

User logo

Eco Mode

Kensington Slot

Gamma correction

Remote control with laser pointer und mouse control

Digital Zoom

10-bit video processing

Screen Mirroring

In Comparison

The Eiki LC X80 compared to others not current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

556 (From: 2514)

Optional accessories
	Nackte Lampe	NLMP16853	147,98 €
	Lampe Ruby	Ruby-LMP16853	176,12 €
	Lampe Original	610-334-2788 / LMP108 / ET-SLMP108	EOL €
	Kompatible Lampe	LMP-K16853	69,53 €
	Luftfilter Kompatibel	Alternative zu:ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	54,44 €
	Universal Fernbedienung	Fernb-uni-V3	22,31 €
	Fernbedienung Original	6450929502 / CXWH	EOL €
	Luftfilter Original	ET-SFYL131 / POA-FIL-131 / 610-334-3747 / 003-001726-01	EOL €
	Deckenhalterung Länge 225 mm	Halterung45	85,80 €

Standard-Lens

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
Eiki AH-24241 (T32)	4.21-5.82:1	8.4-11.6 m	50%		Powered
Eiki AH-23132 (T31A)	2.39-4.19:1	4.8-8.4 m	50%		Powered
Eiki AH-23122 (W31A)	1.29-1.81:1	2.6-3.6 m	50%		Powered
Eiki AH-23061 (S30)	1.82-2.37:1	3.6-4.7 m	50%		Powered
Eiki 0001-4279	5.73-8.59:1	11.5-17.2 m	50%		Manual
Eiki 0001-4278	4.96-8.3:1	9.9-16.6 m	50%		Manual
Eiki 0001-4277	2.62-4.77:1	5.2-9.5 m	50%		Manual
Fix Optional Lenses
Eiki AH-32011 (W32)	0.84:1	1.7 m	0.0% Fix		No Zoom
Eiki 0001-4296	0.79:1	1.6 m	0.0% Fix		No Zoom
Eiki 0001-4276	1.15:1	2.3 m	0.0% Fix		No Zoom

Status

2007 Discontinued (EOL) // Last update of the data: 2025-03-03

Data

Eiki Contact

User Manual english (6.54 MB)
Product Sheet USA
Product Sheet USA 2
Product Sheet lens
Prosepkt Japanisch
Product Sheet english HC

More Details
