PDF/Print Version: Digital Projection E-Vision 10000i 4K+ RGB Projector

Order

Brief Introduction

Beta 2.5

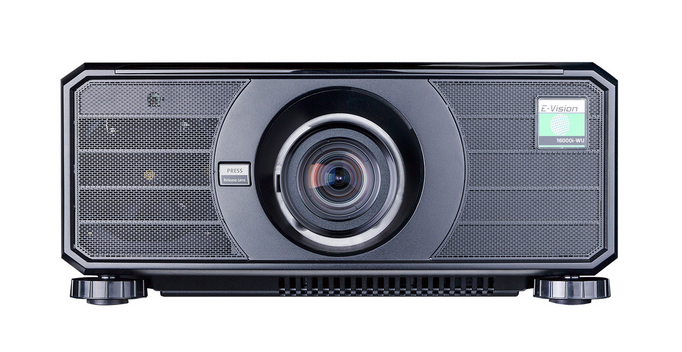

The Digital Projection E-Vision 10000i 4K+ RGB 3D laser DLP projector has 9000 ANSI lumens, a contrast ratio of 10000:1 and a WUXGA 1920 x 1200 resolution. Thanks to the laser, the projector is specified with a 20,000-hour light lifespan, which is over 13.7 years at four hours of enjoyment per day. An image width of up to 964 cm is possible because the projector has 9000 ANSI lumens. The projector can create rooms with low light with a smaller image width; we would recommend a maximum of 643 cm. If the image is still too small, the integrated edge blending software can help to project a large image using additional projectors. Furthermore, it is Full HD 1080P and 4K (compressed) compatible.

Display Type

1 x 0,8" HEP DMD DLP Chip
UHD 4/3 Ti Digital Light Processing Chip

Ansi-Lumen

Projector

9000

Screen

3000 Lux (200 cm Screen width)

Contrast

10000:1 full on/off

Black Level

0,9000 min. Lumen

0,3 min. Lumen

Lens shift

Vert.: +/-45% Hori.: +/-20%

Resolution

UHD (4K2K+) 3840 x 2400
9.216.000 Pixel / WUXGA E-Shift

Video Modes

Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD (komprimiert), 3D, EDTV 480p, 576p

3D Compatibility

Frame Sequential (3D Ready)

Application

Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Very large screen width and rooms with plenty of light and shaded daylight.

Light Source

Laser

Light Life

20000 h.

Operating Costs

0,00 € Laser

600 - 904 cm


	Lux:	3000 Lux
	Room light max.:	600 Lux
	Candela pro m²:	956 cd/m²
	Foot-Lamberts:	279 fL

68 cm

Focus

Powered

Zoom

Powered 1,5067

Objective

optional

Throw Ratio

3,0-4,52:1

Audio

Nein

Connections

2x HDMI 2.0 in (HDCP)
DisplayPort 1.2
12G-SDI in BNC
3G-SDI out BNC
USB-A in
RJ45
RS232C in und out
Wired Remote in und out
12V Trigger

Ceiling Mounting

Yes, is possible.

Power

800W

Size WxHxD

598 x 218 x 500 mm (23,5"x8,6"x19,7") 65,18 L/dm³

Operating Noise

36 / 33 dB in Eco Mode

Shift: 68 cm
Shift: 40 cm		Shift: 40 cm
	Shift: 68 cm

Weight

29,40 kg / 63,93 lbs.

Keystone

Illumination

Frequenz

Foot-Lamberts

279 fL / max. 826 cm screen width

956 cd/m²

Features

Full HD 1080P compatible

Lens shift Funktion

Blank (Black screen button)

Eco Mode

Kensington Slot

High Dynamic Range (HDR)

Warping

24/7 continuous operation capable

Edge Blending

Picture-in-Picture

PJLink™

Lan network compatible.

Crestron®-Software compatible.

DICOM Simulation

24p and 1080p native display

AMX

Alert Mail for Projector

Selectable Dynamic Black

Nexus electronics platform

Screen Mirroring

In Comparison

The Digital Projection E-Vision 10000i 4K+ RGB compared to others current "Stationary" projectors.

Ansi-Lumen:

Weight:

Contrast:

dB:

Black level:

Power cons.:

Picture Total Points:

Projector Total Points:

Popularity Top 100

Points:

Ranking:

44 (From: 231)

Optional accessories
	Deckenhalterung Länge 225 mm	Halterung45	85,80 €

Standard-Lens

Optional Lenses

Name	Ratio	Distance	Shift V	Shift H	Zoom
Zoom Optional Lenses
124-323	2.1-4:1	4.2-8 m	+/-60%	+/-20%	Powered
124-322	1.4-2.11:1	2.8-4.2 m	+/-60%	+/-20%	Powered
124-321	1.05-1.41:1	2.1-2.8 m	+/-60%	+/-20%	Powered
124-320	0.74-1.08:1	1.5-2.2 m	+/-50%	+/-15%	Powered
124-319	0.55-0.75:1	1.1-1.5 m	+/-50%	+/-15%	Powered
124-318	0.31-0.33:1	0.6-0.7 m	+/-50%		Powered
112-504	4.46-6.94:1	8.9-13.9 m	+/-45%	+/-20%	Powered
112-503	3-4.52:1	6-9 m	+/-45%	+/-20%	Powered

Status

2024 Current model // Last update of the data: 2025-03-03
