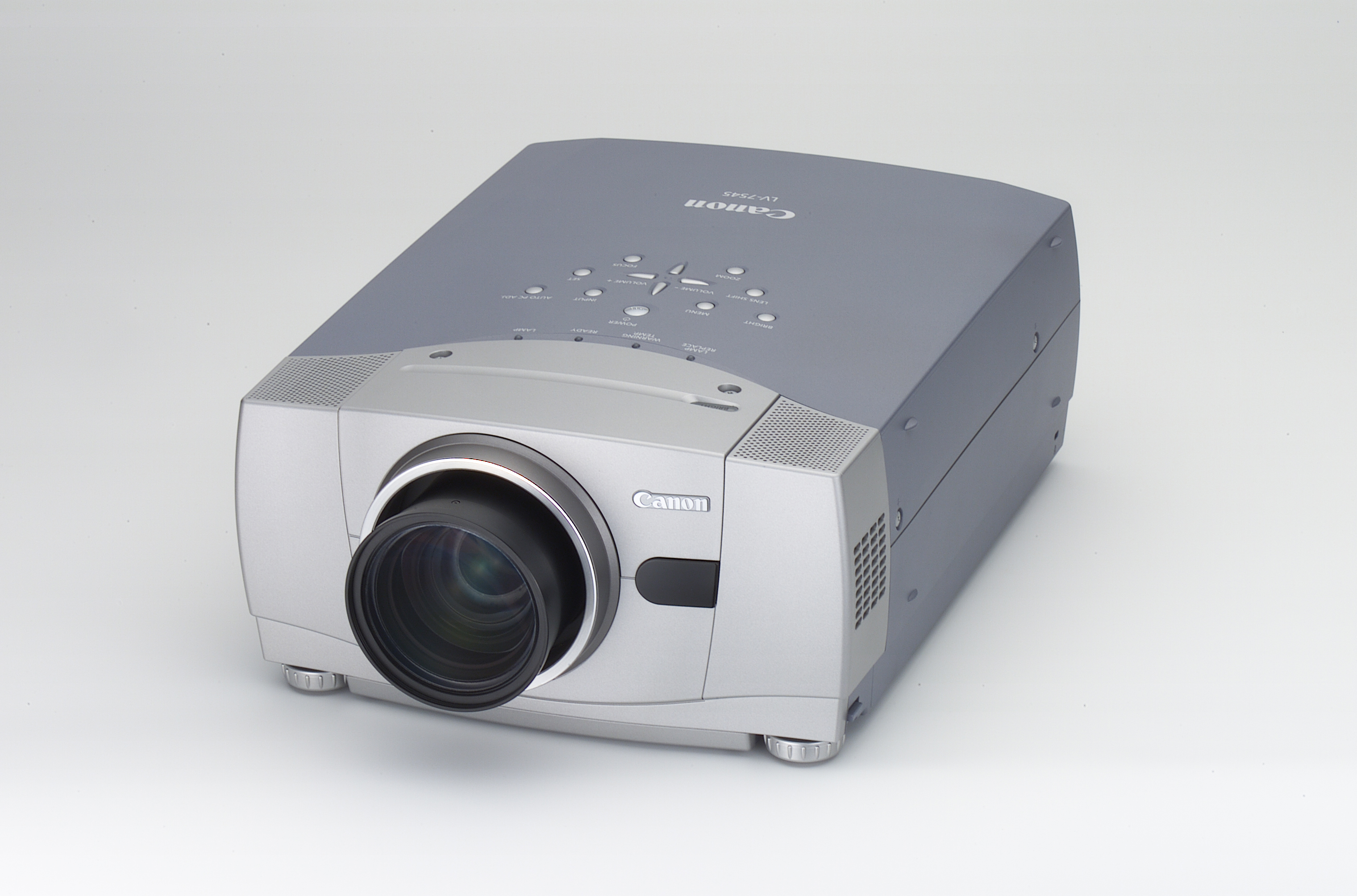

Canon LV 7545
Brief Introduction
Beta 2.5
 The Canon model LV 7545 is an LCD projector with XGA 1024 x 768 resolution and a contrast of 800:1. The projector also offers a lens shift function, which makes setting up the image childs play. An image width of up to 530 cm is possible as the projector has 3700 Ansi lumens. The projector can create rooms with residual light with a smaller image width, max. 353 cm is recommended. The projector is no longer sold by the manufacturer.
Display Type 3 x 1,3" LCD TFT Panel
XGA 4/3 Liquid Crystal Display
Ansi-Lumen
Projector
 3700 / 3200 im Eco Mode
Screen
 1233 Lux (200 cm Screen width)
Contrast 800:1 full on/off 800:1 full on/off
Black Level 4,6250 min. Lumen 1,547 min. Lumen
Lens shift Vert.: +50% -0%
Resolution XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed
Video Modes NTSC, PAL, SECAM, NTSC 4.43 PAL-M or PAL-N
Application Stationary | Permanent installation in the training room and meeting room as well as the conference room.
Medium screen width or rooms with a little more ambient light, max. 200 lumens.
Light Source 200W UHP Lamp
Article Nr.: LV-LP13
Light Life 2000 h.
Operating Costs -
260 - 360 cm



Lux: 1233 Lux
Room light max.: 247 Lux
Candela pro m²: 394 cd/m²
Foot-Lamberts: 115 fL
75 cm


4/3 screen width:200 cm
            Screen: 1 Gain
Focus Powered
Zoom Powered 1
Objective LV-IL02
Throw Ratio 1,3-1,8:1
Audio 2 x2W Stereo
Connections Component (Video/Y, Pb/Cb, Pr/Cr)
Mini-Din 4-pin x 1 (S-Video)
5 BNC Terminals x 1 (RGB)
Ausgang Video Stereo-Audio x 1
Eingang Computer HDB 15 Pin x 1
Mini-jack (stereo) x 1
DVI
USB
Ceiling Mounting Yes, is possible.
Power 300W
Size WxHxD 319 x 168 x 465,2 mm (12,6"x6,6"x18,3") 24,92 L/dm³
Operating Noise 37dB
Key: 218 cm
Shift: 75 cm
Key: 218 cm
Weight 8,50 kg / 18,74 lbs.
Keystone Vert.: +/-40°
Illumination 90%
Frequenz H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz
Foot-Lamberts 115 fL / max. 530 cm screen width
394 cd/m²
Features Lens shift Funktion
Freeze
Eco Mode
Gamma correction
Remote control with laser pointer und mouse control
Automatic detection of video input signalPowermanagement: auto off after 5 min.
4 lenses available
digital zoom 49
Screen Mirroring -
In Comparison
The Canon LV 7545 compared to others not current "Stationary" projectors.
Ansi-Lumen:
36 Weight:
99
Contrast:
1 dB:
94
Black level:
86 Power cons.:
97
Picture Total Points:41 Projector Total Points:97
Popularity Top 100
23 popularity points 23 popularity points 31 popularity points 32 popularity points 23 popularity points 25 popularity points
Points:
25
Ranking: 978 (From: 2514)
Optional accessories

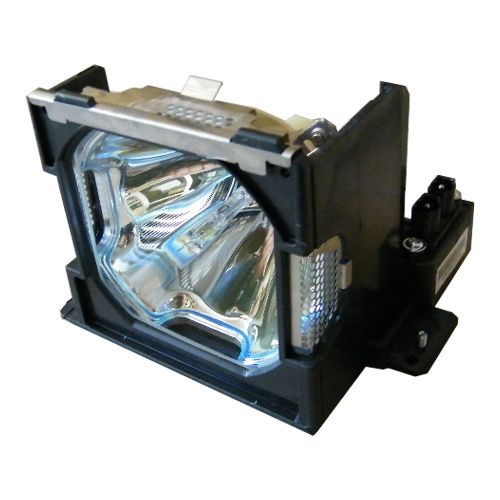

Nackte Philips Lampe NLMP789121,13 €
Lampe Ruby Ruby-LMP789120,00 €
Lampe OriginalLV-LP13 / 7670A001AAEOL €
Kompatible Lampe LMP-K78958,69 €
Universal Fernbedienung Fernb-uni-V322,31 €
Fernbedienung Original645 048 1888 / CXJLEOL €
Luftfilter (klein) POA-FIL-130-k / 910 303 8781EOL €
Luftfilter (gross) OriginalPOA-FIL-130-g / 910 303 8774EOL €
Deckenhalterung 100-120 Halterung10047,86 €
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
Canon LV-IL04 4.12-5.56:18.2-11.1 m 50% Powered
Canon LV-IL03 1.8-2.3:13.6-4.6 m 50% Powered
Canon LV-IL02 1.3-1.8:12.6-3.6 m 50% Powered
Fix Optional Lenses
Canon LV-IL01 0.8:1 1.6 m 0.0% Fix No Zoom
Status - Discontinued (EOL) // Last update of the data: 2023-08-04
Data
Canon Website

Projektor Canon LV 7545 User Manual english (1.14 MB)
Press release
Product Sheet english
Product Sheet USA
Product Sheet english HC
