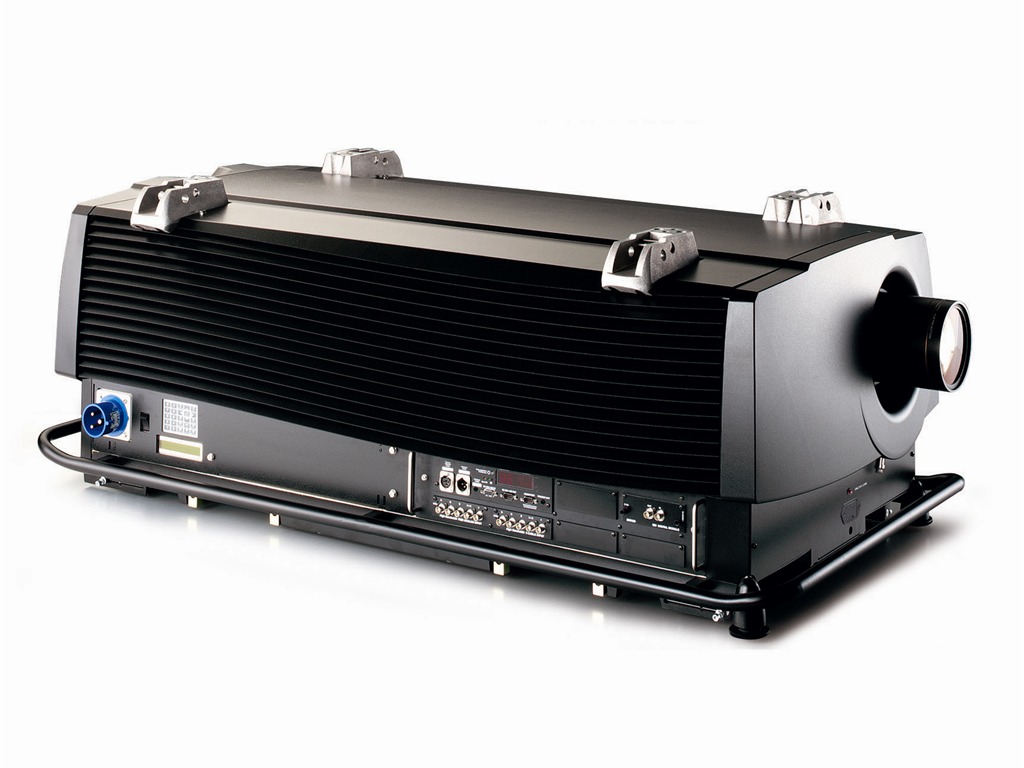

Barco ELM R18
Brief Introduction
Beta 2.5
 The ELM R18 DLP projector from Barco has 17500 Ansi lumens, a contrast of 450:1 and an SXGA 1280 x 1024 resolution. The projector also offers a lens shift function for flexible projection adjustment without loss of quality. 17500 Ansi lumens ensure that an image width of 1120 cm is also possible. The projector manages rooms with residual light with a smaller image width, we recommend a maximum of 747 cm. If the image is still too small, the integrated edge blending software can help to project a larger image with additional projectors. This model is no longer offered by Barco.
Display Type 3 x DLP DMD Chip
SXGA 5/4 Ti Digital Light Processing Chip
Ansi-Lumen
Projector
 17500
Screen
 5469 Lux (200 cm Screen width)
Contrast 450:1 full on/off 450:1 full on/off
Black Level 38,8889 min. Lumen 12,24 min. Lumen
Lens shift Vert.: +/-15% Hori.: +/-10% motorisch max.
Resolution SXGA 1280 x 1024
1.310.720 Pixel
UXGA 1600 x 1200 compressed
Video Modes NTSC, PAL, SECAM, NTSC 4.43, HDTV 1080i, 720p
Application Event | Very large screen width and rooms with plenty of light and shaded daylight.
Light Source 2800W Xenon Lamp
Article Nr.: R9841450
Light Life 500 h.
Operating Costs -
125 cm (no Zoom)



Lux: 5469 Lux
Room light max.: 1094 Lux
Candela pro m²: 1741 cd/m²
Foot-Lamberts: 508 fL
24 cm


5/4 screen width:200 cm
            Screen: 1 Gain
Focus -
Zoom No Zoom
Objective optional
Throw Ratio 0,625:1
Audio nein
Connections S-Video
5 x BNC RGBHV
2 x DVI in
RS232C
Ceiling Mounting Yes, is possible.
Power 3750W
Size WxHxD 632 x 624 x 1420 mm (24,9"x24,6"x55,9") 560 L/dm³
Operating Noise -

Shift: 24 cm

Shift: 20 cm

Shift: 20 cm

Shift: 24 cm
Weight 143,00 kg / 315,26 lbs.
Keystone -
Illumination 90%
Frequenz -
Foot-Lamberts 508 fL / max. 1120 cm screen width
1741 cd/m²
Features Lens shift Funktion motorisch max.
Freeze
Gamma correction
Digital image shift
Warping
Edge Blending
Picture-in-Picture
Password protection
SDI connection optional
Screen Mirroring -
In Comparison
The Barco ELM R18 compared to others not current "Event" projectors.
Ansi-Lumen:
14 Weight:
41
Contrast:
1 dB: 0
Black level:
35 Power cons.:
57
Picture Total Points:17 Projector Total Points:0
Popularity Top 100
41 popularity points 49 popularity points 40 popularity points 69 popularity points 59 popularity points 42 popularity points
Points:
42
Ranking: 124 (From: 576)
Standard-Lens Optional Lenses
NameRatioDistanceShift V Shift HZoom
Zoom Optional Lenses
Barco QLD5.6-12.0:1 5.64-12:111.3-24 m 0.0% Fix Powered
Barco QLD2.5-4.0:1 2.44-3.91:14.9-7.8 m +/-50% +/-35% Powered
Barco QLD2.0-2.5:1 2.04-2.51:14.1-5 m +/-50% +/-35% Powered
Barco QLD1.5-2.0:1 1.51-2.02:13-4 m +/-50% +/-35% Powered
Barco QLD(4.0-7.0:1) 3.97-6.93:17.9-13.9 m +/-50% +/-35% Powered
Barco LD4.0-7.0:1 3.11-5.65:16.2-11.3 m +/-19% +/-13% Powered
Barco LD2.5-4.0:1 1.97-3.15:13.9-6.3 m +/-19% +/-13% Powered
Barco LD1.5-2.5:1 1.19-1.99:12.4-4 m +/-19% +/-13% Powered
Fix Optional Lenses
Barco QLD1.2:1 1.28:1 2.6 m 50-17% 35-13.5% No Zoom
Barco LD0.8:1 0.63:1 1.3 m +/-15% +/-10% No Zoom
Status 2002 Discontinued (EOL) // Last update of the data: 2025-03-03
Data
Barco Website

Projektor Barco ELM R18 User Manual english (7.2 MB)
Product Sheet english
Product Sheet english HC
