Brief Introduction
Beta 2.5 |

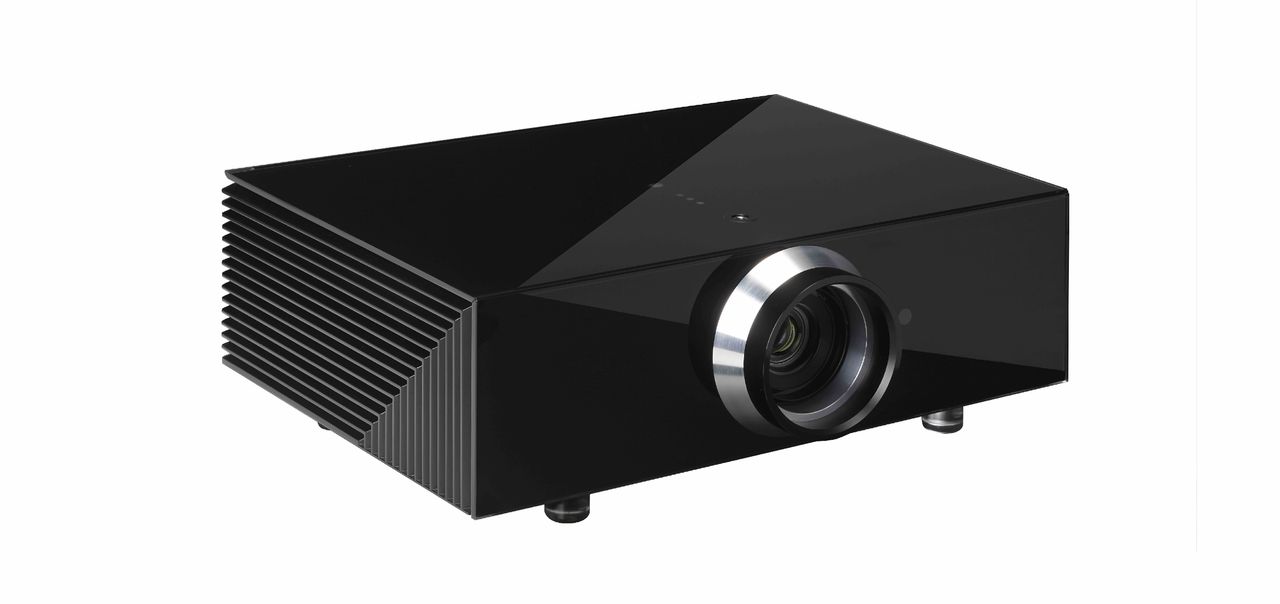

The SIM2 Crystal 4 SH SuperHybrid DLP projector has 3600 Ansi lumens and a UHD (4K2K) 3840 x 2160 resolution. The projector will be able to illuminate a picture width of 610 cm well. Rooms with residual light can be created by the projector with a smaller image width, max. 407 cm is recommended here. With the HDMI MHL port, the smartphone image can be transmitted to the projector in Full HD at 60 Hz by screen mirroring and the smartphone is charged at the same time. Even 1080P and 4K video signals are no problem for the projector.
|
| Display Type |
1 x 0,66" DMD UHD DLP Chip
HDTV 16/9 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
3600 |
Screen |
1600 Lux (200 cm Screen width) |
| Contrast |
- |
-
|
| Black Level |
- |
- |
| Offset |
50% show
|
| Resolution |
UHD (4K2K) 3840 x 2160
8.294.400 Pixel / FHD E-Shift |
| Video Modes |
Pal, SECAM, NTSC, HDTV 720p, 1080i, 1080p, 4K UHD, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray | 3D Blu-ray | 4K UHD Blu-ray (60p) |
| Application |
Homecinema | Medium screen width or rooms with a little more ambient light, max. 200 lumens. |
| Light Source |
Laser
|
|
| Light Life |
- |
| Operating Costs |
0,00 € Laser
|
|
280 - 448 cm
|
 |
|
Lux: |
1600 Lux |
|
Room light max.: |
320 Lux |
|
Candela pro m²: |
511 cd/m² |
|
Foot-Lamberts: |
149 fL |
|
 |
| 56 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Powered |
| Zoom |
Powered 1,6 |
| Objective |
- |
| Throw Ratio |
1,4-2,24:1 show |
| Audio |
- |
| Connections |
1x HDMI 2.0 HDCP 2.2 /MHL 2.1
1x HDMI 1.4a HDCP 1.4
1x VGA HD15
1x USB Type A Charger only (5V/1.5A)
1x 12V Trigger
1x RJ45
1x RS232C |
| Ceiling Mounting |
Yes, is possible. |
| Power |
395W |
| Size WxHxD |
507 x 181 x 392 mm (20"x7,1"x15,4") 35,97 L/dm³
|
| Operating Noise |
- |
|
| Weight |
14,50 kg / 31,97 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
V-sync: 24-120 Hz
|
| Foot-Lamberts |
149 fL
/ max. 610 cm screen width |
| Candela m² |
511 cd/m² |
| Features |
 Full HD 1080P compatible
High Dynamic Range (HDR)
Lan network compatible.
|
|
über HDMI MHL |
In Comparison
The SIM2 Crystal 4 SH SuperHybrid compared to others current "Homecinema" projectors. |
| Ansi-Lumen: |
|
32 |
Weight: |
|
71 |
| Contrast: |
|
0 |
dB: |
|
0 |
| Black level: |
|
0 |
Power cons.: |
|
59 |
| Picture Total Points: | 0 |
Projector Total Points: | 0 |
|
| Popularity Top 100 |
|
| Points: |
|
11 |
| Ranking: |
86 (From: 110) |
|
|
|
|
|
| Status |
2020 Current model // Last update of the data: 2025-01-27
Created: 2021-03-10 13:16:11
|
| Data |
 Product Sheet english HC
User Manual english (4.29 MB)
|
SIM2 Website
