Brief Introduction
Beta 2.5 |
The Promethean PRM 20A short-throw LCD projector has 2000 Ansi lumens, a contrast of 500:1 and a WXGA 1280 x 800 resolution. As it is a short-throw projector, the projector can be placed very close to the wall. For a 2 m wide image, the projector needs to be just 100 cm away from the screen. On the market since 2010, the model is no longer offered by the manufacturer Promethean.
|
| Display Type |
3 x 0,59" LCD TFT Panel mit MLA
WXGA 16/10 Liquid Crystal Display with Micro Lense Array
|
| Ansi-Lumen |
Projector |
2000 / 1460 im Eco Mode |
Screen |
800 Lux (200 cm Screen width) |
| Contrast |
500:1 full on/off |
500:1 full on/off
|
| Black Level |
4,0000 min. Lumen |
1,608 min. Lumen |
| Offset |
51,7% show
|
| Resolution |
WXGA 1280 x 800
1.024.000 Pixel
UXGA 1600 x 1200 compressed |
| Video Modes |
PAL, SECAM, NTSC, HDTV 720p, 1080i, EDTV 480p, 576p |
| Disc Recognition |
DVD | HD Blu-ray (komprimiert) | 3D Blu-ray | 4K UHD Blu-ray |
| Application |
Short Distance | Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

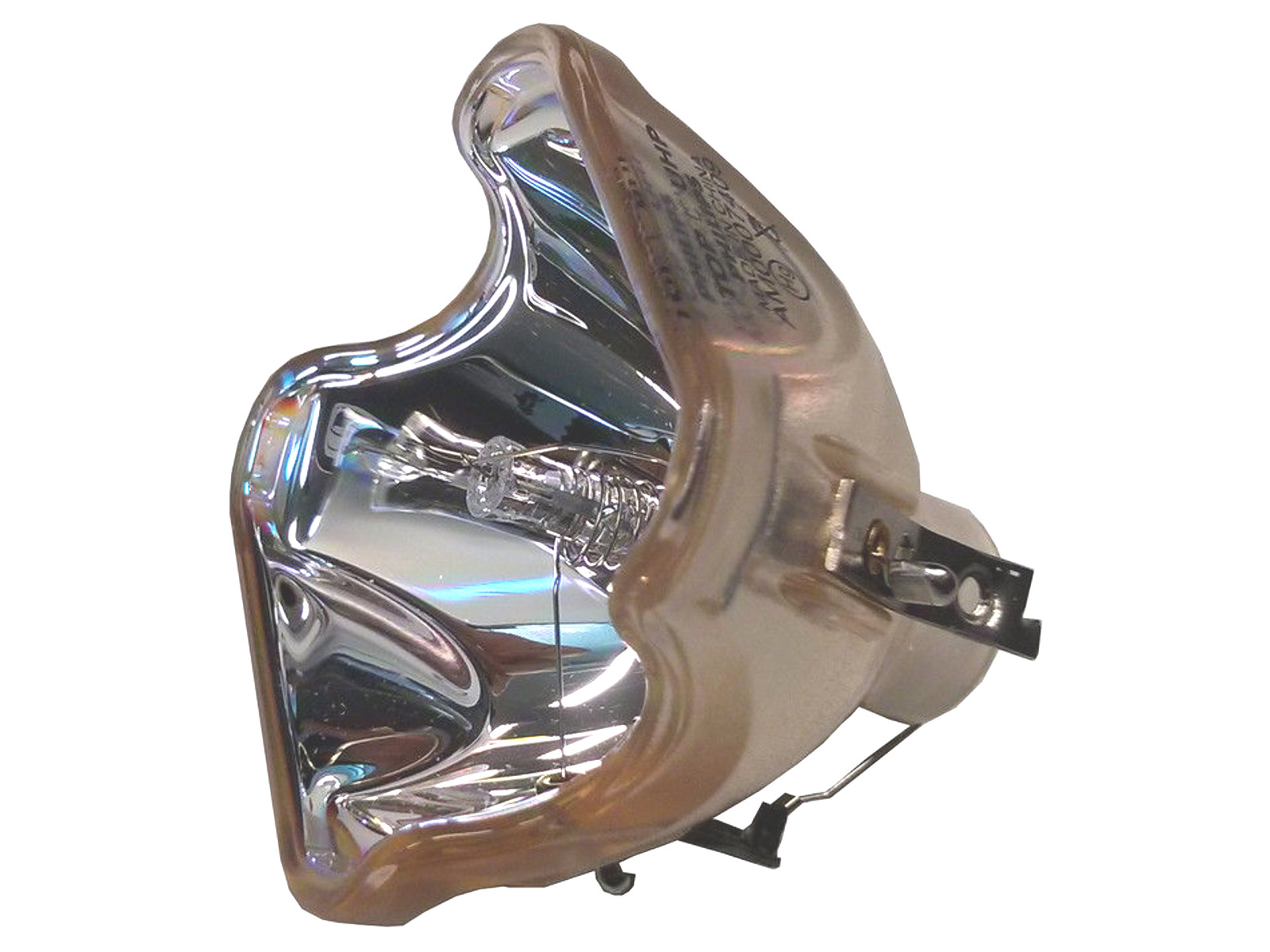

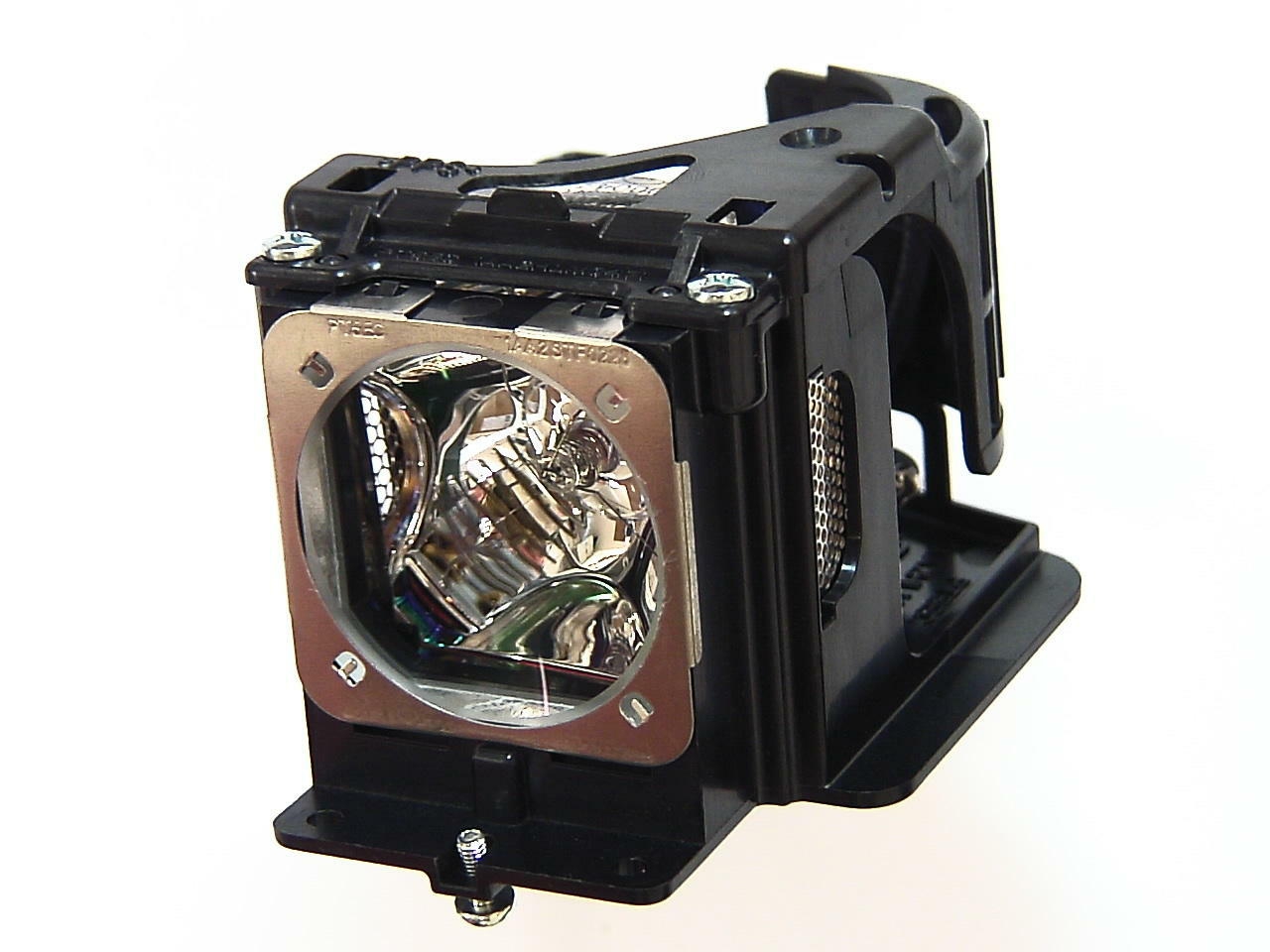

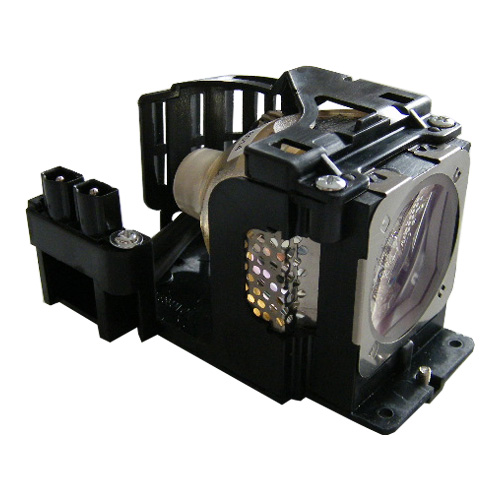

200W UHP Lamp
Article Nr.: PRM10 LAMP
|
|
| Light Life |
1500 h. 3000 h. in Eco Mode |
| Operating Costs |
-
|
|
100 cm (no Zoom)
|
 |
|
Lux: |
800 Lux |
|
Room light max.: |
160 Lux |
|
Candela pro m²: |
254 cd/m² |
|
Foot-Lamberts: |
74 fL |
|
 |
| 65 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=1,80 f=6,60mm |
| Throw Ratio |
0,5:1 |
| Audio |
1W Mono |
| Connections |
D-sub 15 pin in und out
S-Video in
Cinch Video in
Cinch Stereo in
Mini jack Audio in
RS232C Din 8 pin in
RJ45 in |
| Ceiling Mounting |
- |
| Power |
260 / 188W in Eco Mode |
| Size WxHxD |
319,9 x 148,4 x 300,9 mm (12,6"x5,8"x11,8") 14,16 L/dm³
|
| Operating Noise |
38 / 31 dB in Eco Mode |
|
| Weight |
3,40 kg / 7,5 lbs. |
| Keystone |
Vert.: +/-20°
|
| Illumination |
80% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 50-100 Hz
Range max.: 140 MHz |
| Foot-Lamberts |
74 fL
/ max. 454 cm screen width |
| Candela m² |
254 cd/m² |
| Features |
 Direkt Power Off
User logo
Eco Mode
Kensington Slot
Password protection
Lan network compatible.
Short-throw projector
.
|
|
- |
In Comparison
The Promethean PRM 20A compared to others not current "Short Distance" projectors. |
| Ansi-Lumen: |
|
22 |
Weight: |
|
94 |
| Contrast: |
|
1 |
dB: |
|
18 |
| Black level: |
|
92 |
Power cons.: |
|
95 |
| Picture Total Points: | 38 |
Projector Total Points: | 69 |
|
| Popularity Top 100 |
|
| Points: |
|
13 |
| Ranking: |
621 (From: 974) |
|
|
|
|
|
| Status |
2010 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english HC
|
Promethean Website
