Brief Introduction
Beta 2.5 |

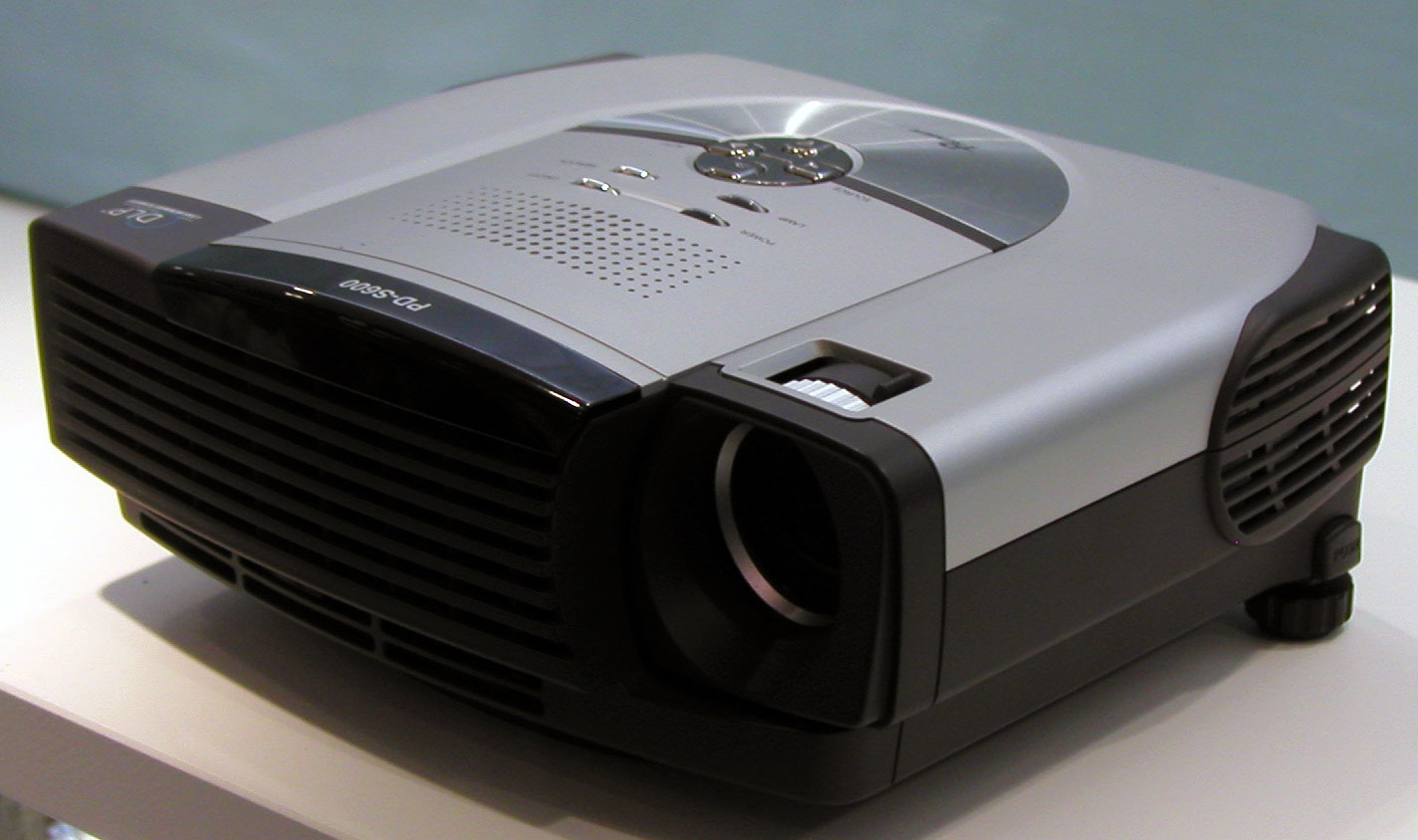

The Premier PD S600 model is a DLP projector with SVGA 800 x 600 resolution and a contrast of 2000:1. The projector can be positioned very freely thanks to the horizontal and vertical keystone correction. An image width of up to 408 cm is possible as the projector has 2200 Ansi lumens. However, if room light is available, the picture should be max. 272 cm wide. The projector was launched in 2004 and is no longer sold by the manufacturer.
|
| Display Type |
1 x 0,55" DDR DLP Chip
SVGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
2200 |
Screen |
733 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
1,1000 min. Lumen |
0,367 min. Lumen |
| Offset |
-
|
| Resolution |
SVGA 800 x 600
480.000 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
PAL, SECAM, NTSC, |
| Application |
Standard-Portabel | External training and company presentations, as well as product presentations.
Medium screen width or rooms with little light, max. 100 lumens. |
| Light Source |

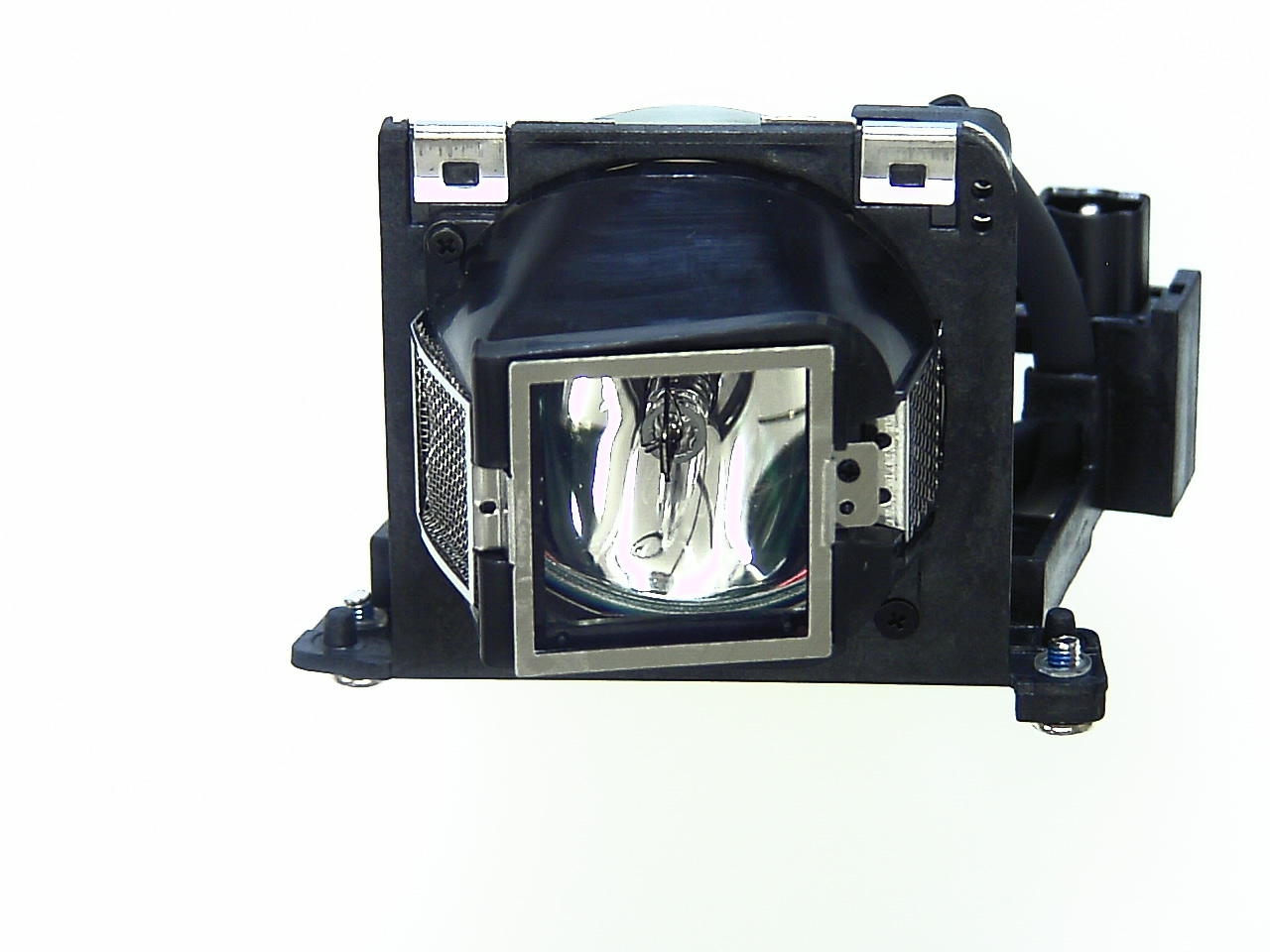

200W VIP Lamp
Article Nr.: LMP3025
|
|
| Light Life |
2000 h. |
| Operating Costs |
-
|
|
370 - 450 cm
|
 |
|
Lux: |
733 Lux |
|
Room light max.: |
147 Lux |
|
Candela pro m²: |
233 cd/m² |
|
Foot-Lamberts: |
68 fL |
|
 |
|
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
Manual 1,2 |
| Objective |
F=2,2-2,6 f=20,2-24,2 mm |
| Throw Ratio |
1,85-2,25:1 show |
| Audio |
2 x 1W |
| Connections |
D-sub 15pin in
Cinch Video in
S-Video in
USB
Mini Jack in |
| Ceiling Mounting |
Yes, is possible. |
| Power |
250W |
| Size WxHxD |
253 x 97 x 201 mm (10"x3,8"x7,9") 4,93 L/dm³
|
| Operating Noise |
34 / 32 dB in Eco Mode |
Key: 99 cm |
Key: 65 cm | | Key: 65 cm |
| |
|
|
| Weight |
2,10 kg / 4,63 lbs. |
| Keystone |
Vert.: +/-15° automatisch
Hori.: +/-10°
|
| Illumination |
85% |
| Frequenz |
H-sync: 15-100 kHz
V-sync: 43-120 Hz
Range max.: 108 MHz |
| Foot-Lamberts |
68 fL
/ max. 408 cm screen width |
| Candela m² |
233 cd/m² |
| Features |
 Eco Mode
Automatic and manual vertical keystone correction
Daten von Webseite Kontrast und Ansi sind im Prospekt weniger.
|
|
- |
In Comparison
The Premier PD S600 compared to others not current "Standard-Portabel" projectors. |
| Ansi-Lumen: |
|
26 |
Weight: |
|
90 |
| Contrast: |
|
1 |
dB: |
|
38 |
| Black level: |
|
96 |
Power cons.: |
|
98 |
| Picture Total Points: | 41 |
Projector Total Points: | 75 |
|
| Popularity Top 100 |
|
| Points: |
|
5 |
| Ranking: |
5432 (From: 7662) |
|
|
|
| Please note |
Data from website Contrast and Ansi are less in the brochure.
|
|
|
| Status |
2004 Discontinued (EOL) // Last update of the data: 2023-08-04
|
| Data |
 Product Sheet english
Product Sheet english HC
|
