Brief Introduction
Beta 2.5 |

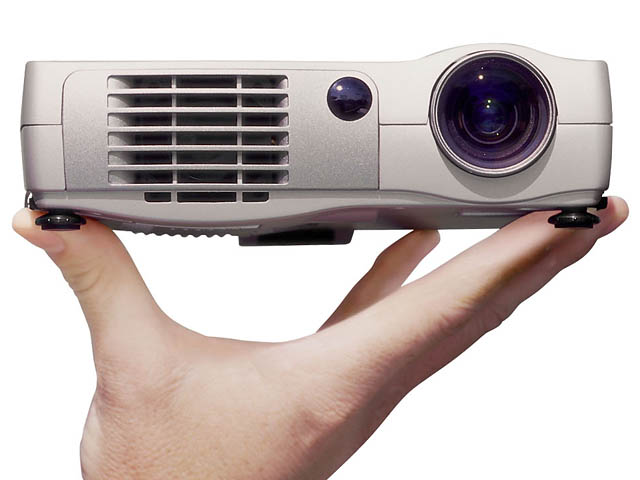

A brief introduction to the V1100: The Plus DLP projector offers 1000 Ansi lumens, a contrast of 2000:1 and an XGA 1024 x 768 resolution. 1000 Ansi lumens ensure that a picture width of 275 cm is also possible. However, if room light is available, the picture should be a maximum of 183 cm wide. With only 27 decibels of operating noise, the model is very quiet compared to others. The projector is no longer sold by the manufacturer, but is still a popular projector in our database. It should also be noted that there are unfortunately no longer any replacement lamps available for the projector, neither original nor replica.
|
| Display Type |
1 x DLP Chip
XGA 4/3 Ti Digital Light Processing Chip
|
| Ansi-Lumen |
Projector |
1000 |
Screen |
333 Lux (200 cm Screen width) |
| Contrast |
2000:1 full on/off |
2000:1 full on/off
|
| Black Level |
0,5000 min. Lumen |
0,167 min. Lumen |
| Offset |
67% show
|
| Resolution |
XGA 1024 x 768
786.432 Pixel
SXGA 1280 x 1024 compressed |
| Video Modes |
NTSC, NTSC4.43/PAL, PAL-M, PAL-N, PAL60/SECAM, YCbCr(NTSC, PAL), YPbPr(480p, 720p, 1080i) |
| Application |
Micro-Portabel | Small mobile presentations.
Small screen width, rooms with very little ambient light below 100 lumens. |
| Light Source |
120W High Perfürmance Compact Lamp
Article Nr.: 28-060N
|
|
| Light Life |
1000 h. |
| Operating Costs |
-
|
|
|
 |
|
Lux: |
333 Lux |
|
Room light max.: |
67 Lux |
|
Candela pro m²: |
106 cd/m² |
|
Foot-Lamberts: |
31 fL |
|
 |
| 101 cm
|
|
Screen width: 200 cm Gain:1 |
|
|
| Focus |
Manual |
| Zoom |
No Zoom |
| Objective |
F=2,4 f=23,0mm |
| Throw Ratio |
- |
| Audio |
0,5W Mono |
| Connections |
DVI-I
Mini Jack in
 |
| Ceiling Mounting |
Yes, is possible. |
| Power |
180W |
| Size WxHxD |
180 x 45 x 141 mm (7,1"x1,8"x5,6") 1,14 L/dm³
|
| Operating Noise |
27dB |
|
| Weight |
1,00 kg / 2,2 lbs. |
| Keystone |
- |
| Illumination |
- |
| Frequenz |
H-sync: 15-85 kHz
V-sync: 50-120 Hz
|
| Foot-Lamberts |
31 fL
/ max. 275 cm screen width |
| Candela m² |
106 cd/m² |
| Features |
 Freeze
Kensington Slot
Gamma correction
Picture-in-Picture
Digital Zoom (x 10)
|
|
- |
In Comparison
The Plus V1100 compared to others not current "Micro-Portabel" projectors. |
| Ansi-Lumen: |
|
27 |
Weight: |
|
36 |
| Contrast: |
|
1 |
dB: |
|
75 |
| Black level: |
|
93 |
Power cons.: |
|
62 |
| Picture Total Points: | 40 |
Projector Total Points: | 58 |
|
| Popularity Top 100 |
|
| Points: |
|
18 |
| Ranking: |
233 (From: 395) |
|
|
|
|
|
| Status |
- Discontinued (EOL) // Last update of the data: 2023-08-04
|
